    Objective LD

    Objective LD "Epiplan" 20x/0.40

    Item no.: 442840-9901-000
    (no longer available)
    Description

    Objective LD Epiplan 20x/0.40 (D=0mm with or D=1.5mm without coverglass cap) (WD=7.2mm at D=0mm)

    Full Description

    Objective with removable, 1.5 mm cover slip cap. Without cover slip cap, the objective is suitable for the use of heating chambers or similar devices with an opening thickness of 1.5 mm. Without cover slip cap the working distance is 9.1 mm.

    To remove the cover glass cap please unscrew the green colour ring of the objective which can then be screwed on again without the cover glass cap.

    Magnification 20x
    Numerical Aperture 0.4
    Free Working Distance [mm] 7.3
    Coverglass Thickness [mm] 0
    Thread Type W0.8x1/36"
    Immersion Without Immersion
    Field of View [mm] 20
    Parfocal Length [mm] 45.00
    Long Distance Yes
    Correction Ring
    Iris
    Optical System Infinity Color Corrected System (ICS)
    Flatness
    Color Correction
    Biomedical Applications
    Fluorescence Yes
    - Multichannel
    - Ultraviolet Transmission
    - Infra Red Transmission
    BrightField Yes
    Differential Interference Contrast
    High Contrast DIC
    Polarization-Optical DIC
    Phase Contrast
    VAREL Contrast
    Hoffman Modulation Contrast
    Polarization Contrast
    Materials (Reflected Light) Applications
    BrightField Yes
    BrightField/DarkField
    Reflected Light DIC
    High Contrast DIC
    DIC with circular polarized light
    Total Interference Contrast Yes
    Polarization Contrast
    Options
    Definite Focus.2
    Confocal Microscopy Yes
    - Ultra Violet
    - VIS (visible light)
    - NLO-IR / 2 Photon
    Total Internal Reflection Fluorescence
    ApoTome
    Microdissection
    • DIC slider LD PN 20x/0.40 II
      DIC slider LD PN 20x/0.40 II
      Item no.: 426954-0000-000
    • Adapter M 27x0.75 / W 0.8 H
      Adapter M 27x0.75 / W 0.8 H "0"
      Item no.: 000000-1095-168
    Mechanical Dimensions

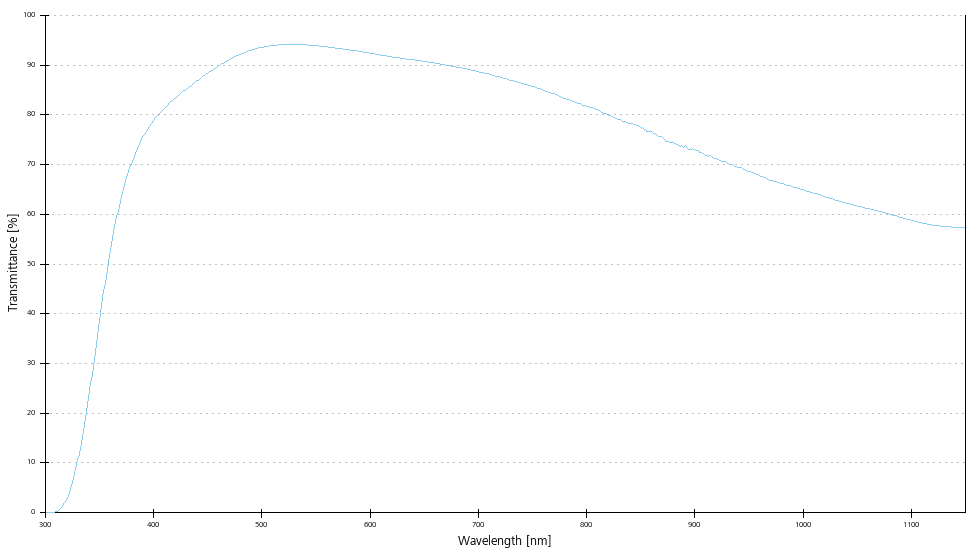

    Transmittance curve
    LD Epiplan

    Universal objectives for materials microscopy allowing brightfield, differential interference contrast and polarization methods. HD versions provide darkfield capability in addition. They feature special long working distances needed for materials inspections.

    Objective LD Epiplan 20x/0.40 (D=0mm with or D=1.5mm without coverglass cap) (WD=7.2mm at D=0mm)
