Objective EC

Objective EC "Epiplan" 50x/0.7

Item no.: 442060-9900-000

Objective EC Epiplan 50x/0.7 (WD=1.1mm)

Full Description
Magnification 50x
Numerical Aperture 0.7
Free Working Distance [mm] 1.1
Coverglass Thickness [mm] 0
Thread Type W0.8x1/36"
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.00
Long Distance
Correction Ring
Optical System Infinity Color Corrected System (ICS)
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light Yes
Total Interference Contrast Yes
Polarization Contrast
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
  • DIC slider EC EP 50x/0.7
    DIC slider EC EP 50x/0.7
    Item no.: 426968-9030-000
  • Adapter M 27x0.75 / W 0.8 H
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168

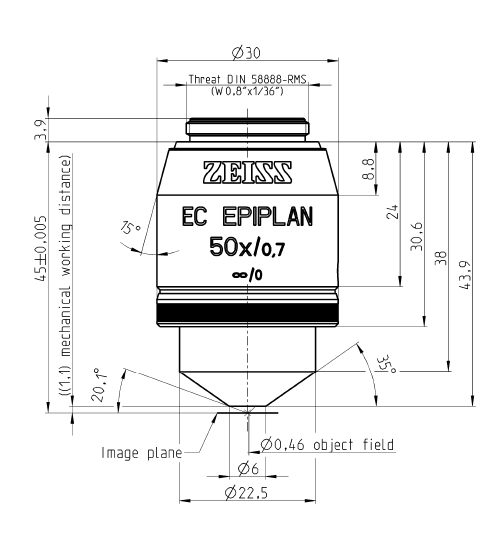

Mechanical Dimensions
Transmittance curve
EC Epiplan

Enhanced Contrast Universal objectives for materials microscopy allowing brightfield, differential interference contrast and polarization methods. HD versions provide darkfield capability in addition. They feature the long working distances needed for materials inspections.

Objective EC Epiplan 50x/0.7 (WD=1.1mm)
