    Objective EC

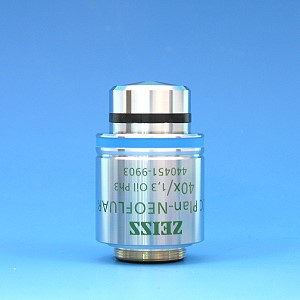

    Objective EC "Plan-Neofluar" 40x/1.30 Oil Ph3

    Item no.: 440451-9903-000
    (no longer available)
    Description

    Objective EC ''Plan-Neofluar'' 40/1.30 Oil Ph3 (WD=0.21mm), incl. ''Immersol'' 518 F, oiler 20ml and...

    Full Description
    Magnification 40x
    Numerical Aperture 1.3
    Free Working Distance [mm] 0.20
    Coverglass Thickness [mm] 0.17
    Thread Type W0.8x1/36"
    Immersion Oil
    Field of View [mm] 25
    Parfocal Length [mm] 45.06
    Long Distance
    Correction Ring
    Iris
    Optical System Infinity Color Corrected System (ICS)
    Flatness
    Color Correction
    Biomedical Applications
    Fluorescence Yes
    - Multichannel
    - Ultraviolet Transmission
    - Infra Red Transmission
    BrightField Yes
    Differential Interference Contrast
    High Contrast DIC
    Polarization-Optical DIC
    Phase Contrast Ph 3
    VAREL Contrast
    Hoffman Modulation Contrast
    Polarization Contrast
    Materials (Reflected Light) Applications
    BrightField Yes
    BrightField/DarkField
    Reflected Light DIC
    High Contrast DIC
    DIC with circular polarized light
    Total Interference Contrast
    Polarization Contrast
    Options
    Definite Focus.2
    Confocal Microscopy Yes
    - Ultra Violet
    - VIS (visible light)
    - NLO-IR / 2 Photon
    Total Internal Reflection Fluorescence
    ApoTome
    Microdissection
    • Adapter M 27x0.75 / W 0.8 H
      Adapter M 27x0.75 / W 0.8 H "0"
      Item no.: 000000-1095-168
    • Cover glasses, high performance, D=0.17mm, box with 1000 pc.
      Cover glasses, high performance, D=0.17mm, box with 1000 pc.
      Item no.: 474030-9000-000
    • Immersion suction ring d=22.5 mm (10 pcs.)
      Immersion suction ring d=22.5 mm (10 pcs.)
      Item no.: 444822-0000-000
    • Temperable Objective Ring 22.5/32.5 mm S1 (D)
      Temperable Objective Ring 22.5/32.5 mm S1 (D)
      Item no.: 411882-9081-000
    • Immersion oil
      Immersion oil "Immersol" 518 F fluorescence free, bottle 100 ml
      Item no.: 444962-0000-000
    • Immersion oil
      Immersion oil "Immersol" 518 F fluorescence free, bottle 500 ml
      Item no.: 444964-0000-000
    • Immersion oil
      Immersion oil "Immersol" 518 F fluorescence free, oiler 20 ml
      Item no.: 444960-0000-000
    • Box of lens cleaning paper
      Box of lens cleaning paper
      Item no.: 462975-0000-000
    • Objective heater 22.5/34 S1 (D)
      Objective heater 22.5/34 S1 (D)
      Item no.: 411860-9064-000

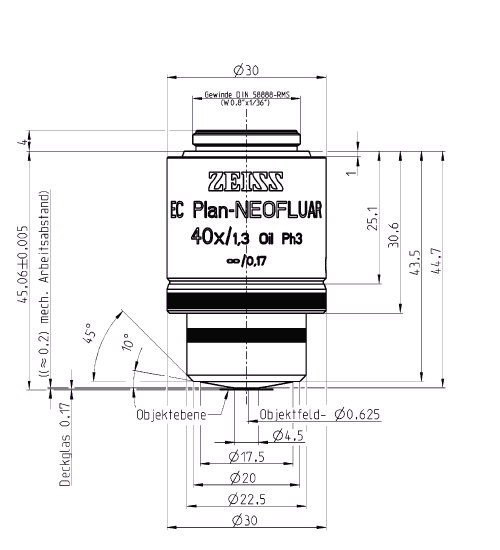

    Mechanical Dimensions
    Transmittance curve
    EC Plan-Neofluar

    The Enhanced Contrast “Plan-Neofluar” universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC “Epiplan-Neofluar” objectives for reflected-light work, the EC “Plan-Neofluar” Antiflex objective for reflection contrast, and EC “Plan-Neofluar” Pol objectives for the requirements of polarizing microscopy.

    Objective EC ''Plan-Neofluar'' 40/1.30 Oil Ph3 (WD=0.21mm), incl. ''Immersol'' 518 F, oiler 20ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.
