Objective EC

Objective EC "Plan-Neofluar" 2.5x/0.075

Item no.: 440310-9903-000
Description

Objective EC Plan-Neofluar 2.5x/0.075 (WD=9.5mm)

Full Description
Magnification 2.5x
Numerical Aperture 0.075
Free Working Distance [mm] 9.5
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • Adapter M 27x0.75 / W 0.8 H
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168
Mechanical Dimensions

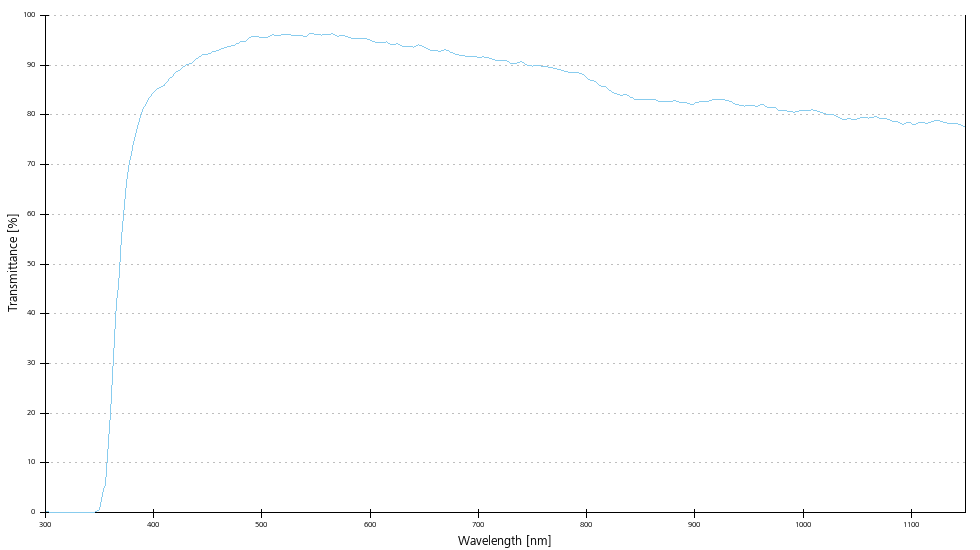

Transmittance curve
EC Plan-Neofluar

The Enhanced Contrast “Plan-Neofluar” universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC “Epiplan-Neofluar” objectives for reflected-light work, the EC “Plan-Neofluar” Antiflex objective for reflection contrast, and EC “Plan-Neofluar” Pol objectives for the requirements of polarizing microscopy.

Objective EC Plan-Neofluar 2.5x/0.075 (WD=9.5mm)
