Objective EC "Epiplan-Apochromat" 150x/0.95 M27

Objective EC "Epiplan-Apochromat" 150x/0.95 M27

Item no.: 422690-9900-000

Objective EC Epiplan-Apochromat 150x/0.95 M27 (FWD=0.23mm)

Full Description
Magnification 150x
Numerical Aperture 0.95
Free Working Distance [mm] 0.23
Coverglass Thickness [mm] 0
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.00
Long Distance
Correction Ring
Optical System Infinity Color Corrected System (ICS)
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Microdissection Yes
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
Mechanical Dimensions

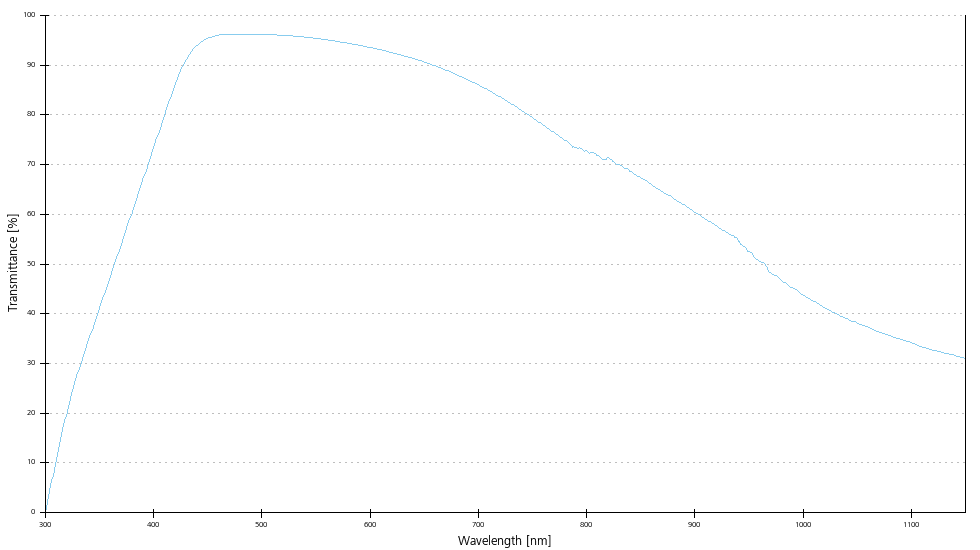

Transmittance curve
EC Epiplan-Apochromat

These high-power, apochromatically corrected objectives for reflected light satisfy the most exacting demands in material microscopy. They feature sufficiently high transmission in the 400-to-700nm spectral range. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.

Objective EC Epiplan-Apochromat 150x/0.95 M27 (FWD=0.23mm)
