Objective LD C Epiplan-Apochromat 50x/0.6 DIC M27

Objective LD C Epiplan-Apochromat 50x/0.6 DIC M27

Item no.: 422672-9800-000
Description

Objective LD C Epiplan-Apochromat 50x/0.6 DIC M27 (FWD=7.6mm) Optimized for 405 nm

Full Description

Optimized for 405 nm

Magnification 50x
Numerical Aperture 0.6
Free Working Distance [mm] 7.6
Coverglass Thickness [mm] 0
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.00
Long Distance Yes
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • DIC slider C EP-Apo 50x/0.95 Epi
    DIC slider C EP-Apo 50x/0.95 Epi
    Item no.: 426968-9150-000
  • Objective ring ACR for objective sleeve conical short
    Objective ring ACR for objective sleeve conical short
    Item no.: 424509-0000-000
Mechanical Dimensions

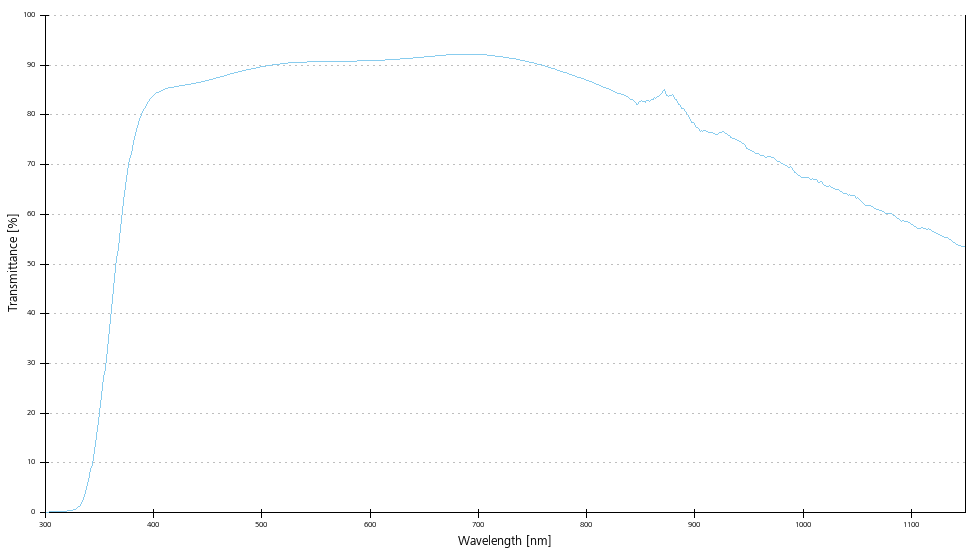

Transmittance curve
EC Epiplan-Apochromat

These high-power, apochromatically corrected objectives for reflected light satisfy the most exacting demands in material microscopy. They feature sufficiently high transmission in the 400-to-700nm spectral range. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.

Objective LD C Epiplan-Apochromat 50x/0.6 DIC M27 (FWD=7.6mm) Optimized for 405 nm
