Objective EC

Objective EC "Epiplan-Apochromat" 20x/0.6 HD DIC M27

Item no.: 422652-9960-000
Description

Objective EC Epiplan-Apochromat 20x/0.6 BD DIC M27 (FWD=1.7mm)

Full Description
Magnification 20x
Numerical Aperture 0.6
Free Working Distance [mm] 1.7
Coverglass Thickness [mm] 0
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.00
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField Yes
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light Yes
Total Interference Contrast Yes
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • DIC slider EC EPN 5x/0.13 / 10x/0.25 / 20x/0.50
    DIC slider EC EPN 5x/0.13 / 10x/0.25 / 20x/0.50
    Item no.: 000000-1170-899
  • Objective ring ACR for objective sleeve conical long
    Objective ring ACR for objective sleeve conical long
    Item no.: 424510-0000-000
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000

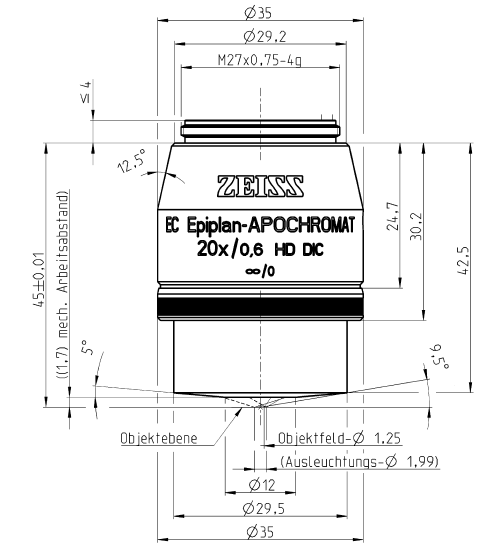

Mechanical Dimensions
Transmittance curve
EC Epiplan-Apochromat

These high-power, apochromatically corrected objectives for reflected light satisfy the most exacting demands in material microscopy. They feature sufficiently high transmission in the 400-to-700nm spectral range. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.

Objective EC Epiplan-Apochromat 20x/0.6 BD DIC M27 (FWD=1.7mm)
