    Objective EC

    Objective EC "Epiplan-Apochromat" 10x/0.3 HD DIC M27

    Item no.: 422642-9960-000
    Description

    Objective EC Epiplan-Apochromat 10x/0.3 BD DIC M27 (FWD=5.0mm)

    Full Description
    Magnification 10x
    Numerical Aperture 0.3
    Free Working Distance [mm] 5.0
    Coverglass Thickness [mm] 0
    Thread Type M27x0.75
    Immersion Without Immersion
    Field of View [mm] 25
    Parfocal Length [mm] 45.00
    Long Distance
    Correction Ring
    Iris
    Optical System Infinity Color Corrected System (ICS)
    Flatness
    Color Correction
    Biomedical Applications
    Fluorescence Yes
    - Multichannel
    - Ultraviolet Transmission
    - Infra Red Transmission
    BrightField Yes
    Differential Interference Contrast
    High Contrast DIC
    Polarization-Optical DIC
    Phase Contrast
    VAREL Contrast
    Hoffman Modulation Contrast
    Polarization Contrast
    Materials (Reflected Light) Applications
    BrightField Yes
    BrightField/DarkField Yes
    Reflected Light DIC
    High Contrast DIC
    DIC with circular polarized light Yes
    Total Interference Contrast Yes
    Polarization Contrast
    Options
    Definite Focus.2
    Confocal Microscopy Yes
    - Ultra Violet
    - VIS (visible light)
    - NLO-IR / 2 Photon
    Total Internal Reflection Fluorescence
    ApoTome
    Microdissection
    • DIC slider EC EPN 5x/0.13 / 10x/0.25 / 20x/0.50
      DIC slider EC EPN 5x/0.13 / 10x/0.25 / 20x/0.50
      Item no.: 000000-1170-899
    • Objective ring ACR for objective sleeve conical long
      Objective ring ACR for objective sleeve conical long
      Item no.: 424510-0000-000
    • Adapter 30mm with optics and DIC slider mount
      Adapter 30mm with optics and DIC slider mount
      Item no.: 424516-9041-000
    Mechanical Dimensions

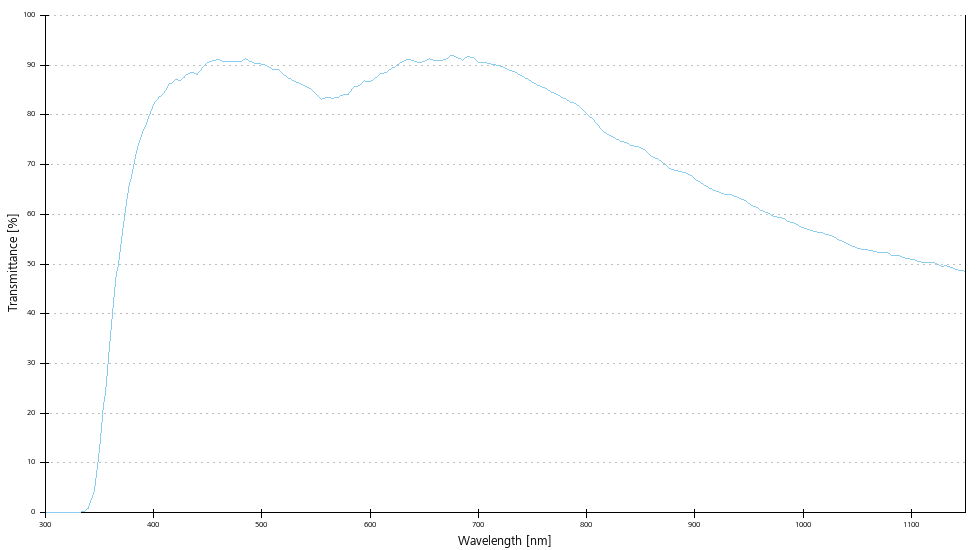

    Transmittance curve
    EC Epiplan-Apochromat

    These high-power, apochromatically corrected objectives for reflected light satisfy the most exacting demands in material microscopy. They feature sufficiently high transmission in the 400-to-700nm spectral range. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.

    Objective EC Epiplan-Apochromat 10x/0.3 BD DIC M27 (FWD=5.0mm)
