Objective Epiplan-Neofluar 100x/1.3 Oil Pol M27

Objective Epiplan-Neofluar 100x/1.3 Oil Pol M27

Item no.: 422493-9900-000
Description

Objective Epiplan-Neofluar 100x/1.3 Oil Pol M27 (FWD=0.37mm), incl. Immersol 518 N, oiler 20ml

Full Description
Magnification 100x
Numerical Aperture 1.3
Free Working Distance [mm] 0.37
Coverglass Thickness [mm] 0
Thread Type M27x0.75
Immersion Oil
Field of View [mm] 25
Parfocal Length [mm] 45.00
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC Yes
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast Yes
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC Yes
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast Yes
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III
    DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III
    Item no.: 426945-0000-000
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
  • Immersion oil
    Immersion oil "Immersol" 518 N, bottle 100 ml
    Item no.: 000000-1111-807
  • Immersion oil
    Immersion oil "Immersol" 518 N, bottle 500 ml
    Item no.: 000000-1111-809
  • Immersion oil
    Immersion oil "Immersol" 518 N, oiler 20 ml
    Item no.: 000000-1111-806
  • Immersion oil
    Immersion oil "Immersol" M, bottle 100 ml
    Item no.: 444966-0000-000
  • Immersion oil
    Immersion oil "Immersol" M, oiler 20 ml
    Item no.: 444965-0000-000
  • Box of lens cleaning paper
    Box of lens cleaning paper
    Item no.: 462975-0000-000
Mechanical Dimensions

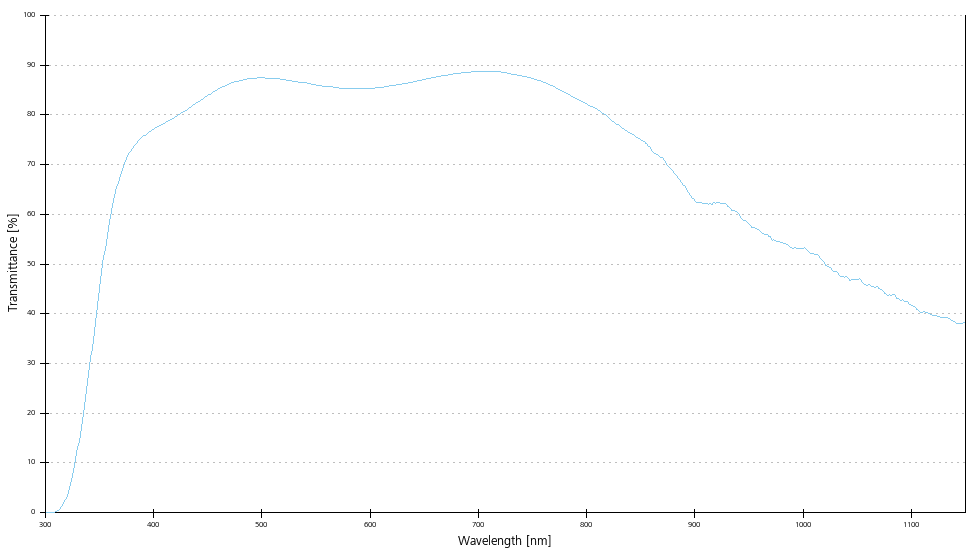

Transmittance curve
Epiplan-Neofluar

Epiplan-Neofluar® objectives is a series of objectives for the examination of materials. They differ from Epiplan® objectives by their higher NA and, accordingly, higher resolving power and of course like all objectives for highest contrast.

Objective Epiplan-Neofluar 100x/1.3 Oil Pol M27 (FWD=0.37mm), incl. Immersol 518 N, oiler 20ml
