    Objective LD EC

    Objective LD EC "Epiplan-Neofluar" 50x/0.55 HD DIC M27

    Item no.: 422472-9960-000
    Description

    Objective LD EC Epiplan-Neofluar 50x/0.55 BD DIC M27 (FWD=9.0mm)

    Full Description
    Magnification 50x
    Numerical Aperture 0.55
    Free Working Distance [mm] 9.0
    Coverglass Thickness [mm] 0
    Thread Type M27x0.75
    Immersion Without Immersion
    Field of View [mm] 25
    Parfocal Length [mm] 45.00
    Long Distance Yes
    Correction Ring
    Iris
    Optical System Infinity Color Corrected System (ICS)
    Flatness
    Color Correction
    Biomedical Applications
    Fluorescence Yes
    - Multichannel
    - Ultraviolet Transmission
    - Infra Red Transmission
    BrightField Yes
    Differential Interference Contrast
    High Contrast DIC
    Polarization-Optical DIC
    Phase Contrast
    VAREL Contrast
    Hoffman Modulation Contrast
    Polarization Contrast
    Materials (Reflected Light) Applications
    BrightField Yes
    BrightField/DarkField Yes
    Reflected Light DIC
    High Contrast DIC
    DIC with circular polarized light Yes
    Total Interference Contrast Yes
    Polarization Contrast
    Options
    Definite Focus.2
    Confocal Microscopy Yes
    - Ultra Violet
    - VIS (visible light)
    - NLO-IR / 2 Photon
    Total Internal Reflection Fluorescence
    ApoTome
    Microdissection
    • DIC slider LD EC EPN 20x/0.22 and 50x/0.55
      DIC slider LD EC EPN 20x/0.22 and 50x/0.55
      Item no.: 000000-1210-957
    • Objective ring ACR for objective sleeve conical long
      Objective ring ACR for objective sleeve conical long
      Item no.: 424510-0000-000
    • Adapter 30mm with optics and DIC slider mount
      Adapter 30mm with optics and DIC slider mount
      Item no.: 424516-9041-000
    Mechanical Dimensions

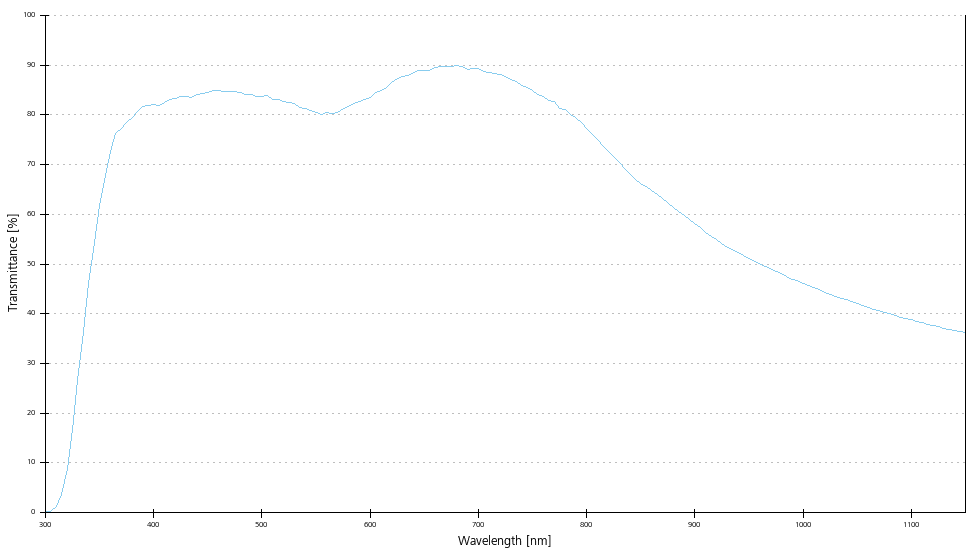

    Transmittance curve
    LD EC Epiplan-Neofluar

    LD EC Epiplan-Neofluar®: These objectives are aditionally ot the class of EC Epiplan Neofluar® but with extra long working distance.

    Objective LD EC Epiplan-Neofluar 50x/0.55 BD DIC M27 (FWD=9.0mm)
