Objective LD EC

Objective LD EC "Epiplan-Neofluar" 20x/0.22 DIC M27

Item no.: 422452-9900-000
Description

Objective LD EC Epiplan-Neofluar 20x/0.22 DIC M27 (FWD=12.1mm)

Full Description
Magnification 20x
Numerical Aperture 0.22
Free Working Distance [mm] 12.1
Coverglass Thickness [mm] 0
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.00
Long Distance Yes
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light Yes
Total Interference Contrast Yes
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • DIC slider LD EC EPN 20x/0.22 and 50x/0.55
    DIC slider LD EC EPN 20x/0.22 and 50x/0.55
    Item no.: 000000-1210-957
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000

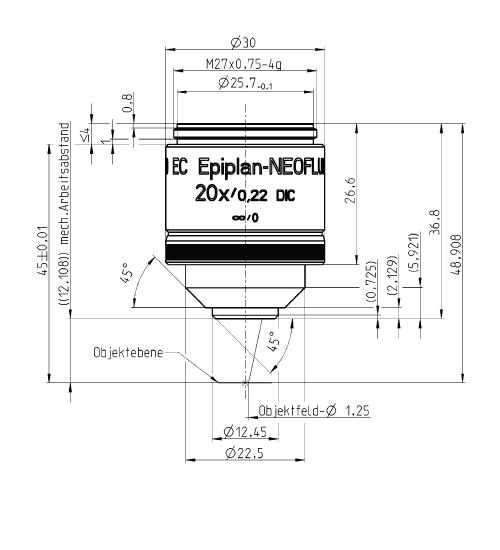

Mechanical Dimensions
Transmittance curve
LD EC Epiplan-Neofluar

LD EC Epiplan-Neofluar®: These objectives are aditionally ot the class of EC Epiplan Neofluar® but with extra long working distance.

Objective LD EC Epiplan-Neofluar 20x/0.22 DIC M27 (FWD=12.1mm)
