Objective EC Epiplan-Neofluar 100x/0.9 BD DIC M27

Objective EC Epiplan-Neofluar 100x/0.9 BD DIC M27

Item no.: 422392-9961-000
Description

Objective EC Epiplan-Neofluar 100x/0.9 BD DIC M27 (FWD=1.0mm)

Full Description
Magnification 100x
Numerical Aperture 0.9
Free Working Distance [mm] 1.0
Coverglass Thickness [mm] 0
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.00
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Color Correction semi-apochromatic
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField Yes
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light Yes
Total Interference Contrast Yes
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection
  • DIC slider EC EPN 50x/0.80 and 100x/0.90 HR
    DIC slider EC EPN 50x/0.80 and 100x/0.90 HR
    Item no.: 000000-1170-901
  • DIC slider EC EPN 100x/0.90/50x/0.80 HC/LD EC EPN 100x/0.75
    DIC slider EC EPN 100x/0.90/50x/0.80 HC/LD EC EPN 100x/0.75
    Item no.: 000000-1170-902
  • Objective ring ACR for objective sleeve conical long
    Objective ring ACR for objective sleeve conical long
    Item no.: 424510-0000-000
Mechanical Dimensions

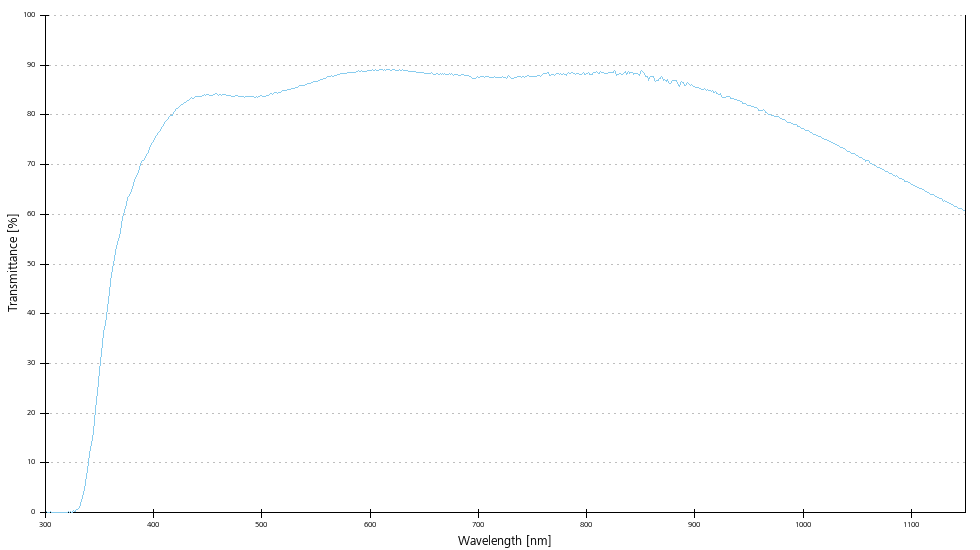

Transmittance curve
EC Epiplan-Neofluar

This is a series of objectives for the examination of materials. They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and like all EC objectives they are optimized for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters up to 20 mm. EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with an objective magnification above 20x. There are no restrictions for uncovered specimens. Due to their strict telecentricity on the object side, these objectives are ideal for measuring purposes.They differ from Epiplan objectives by their higher NA and, accordingly, higher resolving power and of course like all EC objectives for highest contrast. Unlike the Epiplan series, the EC Epiplan-Neofluar series includes 1.25x and 2.5x objectives. These low-power objectives provide maximum object field diameters of 20 mm.
EC Epiplan-Neofluar objectives are also suitable for transmitted-light work. Because of spherical aberration, specimens with cover glass should not be observed with objective powers above 20x.
There are no restrictions for uncovered specimens.

Objective EC Epiplan-Neofluar 100x/0.9 BD DIC M27 (FWD=1.0mm)
