    Objective EC Epiplan 100x/0.85 M27

    Objective EC Epiplan 100x/0.85 M27

    Item no.: 422090-9902-000
    Description

    Objective EC Epiplan 100x/0.85 M27 (FWD=0.87mm)

    Full Description
    Magnification 100x
    Numerical Aperture 0.85
    Free Working Distance [mm] 0.87
    Coverglass Thickness [mm] 0
    Thread Type M27x0.75
    Immersion Without Immersion
    Field of View [mm] 23
    Parfocal Length [mm] 45.00
    Long Distance
    Correction Ring
    Iris
    Optical System Infinity Color Corrected System (ICS)
    Flatness
    Color Correction
    Biomedical Applications
    Fluorescence Yes
    - Multichannel
    - Ultraviolet Transmission
    - Infra Red Transmission
    BrightField Yes
    Differential Interference Contrast
    High Contrast DIC
    Polarization-Optical DIC
    Phase Contrast
    VAREL Contrast
    Hoffman Modulation Contrast
    Polarization Contrast
    Materials (Reflected Light) Applications
    BrightField Yes
    BrightField/DarkField
    Reflected Light DIC
    High Contrast DIC
    DIC with circular polarized light Yes
    Total Interference Contrast Yes
    Polarization Contrast
    Options
    Definite Focus.2
    Confocal Microscopy Yes
    - Ultra Violet
    - VIS (visible light)
    - NLO-IR / 2 Photon
    Total Internal Reflection Fluorescence
    ApoTome
    Microdissection
    • DIC slider EC EP 100x/0.8
      DIC slider EC EP 100x/0.8
      Item no.: 426968-9040-000
    • Objective ring ACR for objective sleeve cylindrical short
      Objective ring ACR for objective sleeve cylindrical short
      Item no.: 424508-0000-000
    Mechanical Dimensions

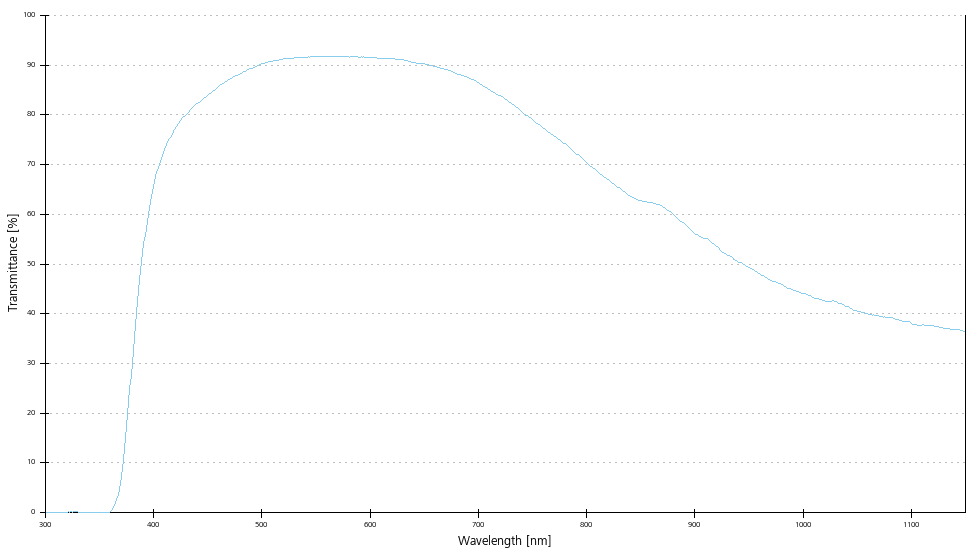

    Transmittance curve
    EC Epiplan

    Enhanced Contrast Universal objectives for materials microscopy allowing brightfield, differential interference contrast and polarization methods. HD versions provide darkfield capability in addition. They feature the long working distances needed for materials inspections.

    Objective EC Epiplan 100x/0.85 M27 (FWD=0.87mm)
