Objective EC Epiplan 10x/0.25 M27

Objective EC Epiplan 10x/0.25 M27

Item no.: 422040-9902-000
Description

Objective EC Epiplan 10x/0.25 M27 (FWD=11.0mm)

Full Description
Magnification 10x
Numerical Aperture 0.25
Free Working Distance [mm] 11.0
Coverglass Thickness [mm] 0
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.00
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light Yes
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II
    DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II
    Item no.: 426940-0000-000
  • DIC slider EC EP 5x/0.13; 10x/0.2; 20x/0.4 Epi+
    DIC slider EC EP 5x/0.13; 10x/0.2; 20x/0.4 Epi+
    Item no.: 426968-9100-000
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
Mechanical Dimensions

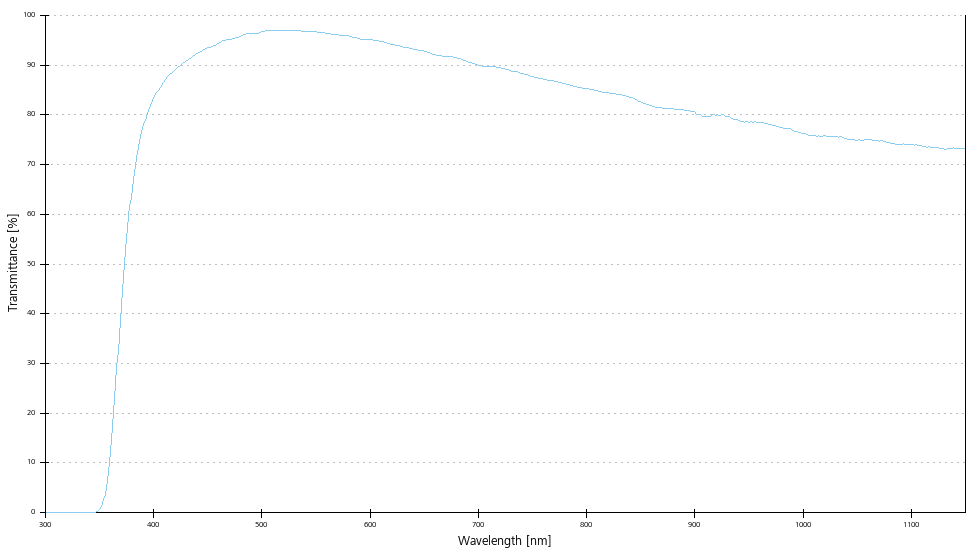

Transmittance curve
EC Epiplan

Enhanced Contrast Universal objectives for materials microscopy allowing brightfield, differential interference contrast and polarization methods. HD versions provide darkfield capability in addition. They feature the long working distances needed for materials inspections.

Objective EC Epiplan 10x/0.25 M27 (FWD=11.0mm)
