Objective LD SC Plan-Apochromat 20x/1.0 Corr M32 85mm

Objective LD SC Plan-Apochromat 20x/1.0 Corr M32 85mm

Item no.: 421459-9772-000
Description

Objective LD SC Plan-Apochromat 20x/1.0 Corr M32 85mm Parfocal length 85mm, overall length 105mm. (W...

Full Description

Due to its optics design and its high overall length of 105 mm as well as the mounting thread M32x/0.75 this objective can only be used on the microscope Axio Examiner.D1/Z1 in combination with the 1-position objective mount M32; Axio Examiner with catalogue number 424516-9100-000.

Magnification 20x
Numerical Aperture 1.0
Free Working Distance [mm] 5.6
Coverglass Thickness [mm] 0
Thread Type M32x0.75
Immersion SC
Field of View [mm] 20
Parfocal Length [mm] 85
Long Distance Yes
Correction Ring Yes
Iris
Optical System Infinity-Color-Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection

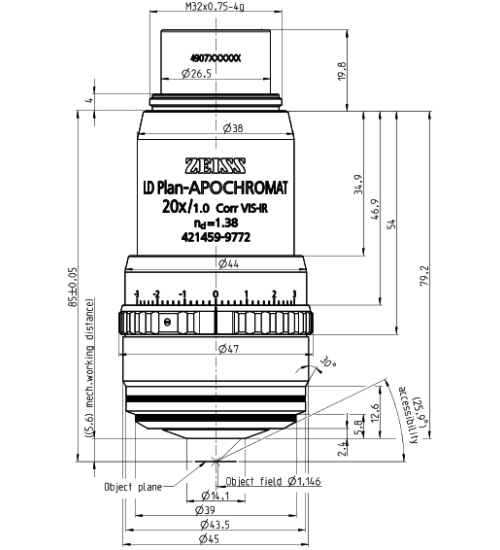

Mechanical Dimensions
Transmittance curve
Plan-Apochromat SF20

This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, “Plan Apochromat” objectives are excellently suited to fluorescence applications.

Objective LD SC Plan-Apochromat 20x/1.0 Corr M32 85mm Parfocal length 85mm, overall length 105mm. (WD=5.6mm) VIS-IR Correction collar for compensation of spherical aberrations. Suitable for Sca/e method with nD=1.38.
