Objective LD Plan-Neofluar 40x/0.4 for Thermo Plate M27
Objective LD Plan-Neofluar 40x/0.4 for Thermo Plate M27
Item no.: 421369-9900-000
Description
Objective LD Plan-Neofluar 40x/0.4 for Thermo Plate M27 (FWD=2.0mm)
Full DescriptionParticularly designed for use with the heating glass mountin frame K "Thermo Plate".
| Magnification | 40x |
| Numerical Aperture | 0.4 |
| Free Working Distance [mm] | 2.0 |
| Coverglass Thickness [mm] | 2.0 |
| Thread Type | M27x0.75 |
| Immersion | Without Immersion |
| Field of View [mm] | 23 |
| Parfocal Length [mm] | 45.06 |
| Long Distance |
|
| Correction Ring | |
| Iris | |
| Optical System | Infinity Color Corrected System (ICS) |
| Color Correction | semi-apochromatic |
| Biomedical Applications | |
|---|---|
| Fluorescence |
|
| - Multichannel | |
| - Ultraviolet Transmission | |
| - Infra Red Transmission | |
| BrightField |
|
| DIC [Differential Interference Contrast] | |
| High Contrast DIC | |
| PlasDIC |
|
| Phase Contrast | |
| VAREL Contrast | |
| Hoffman Modulation Contrast | |
| Polarization Contrast | |
| Materials (Reflected Light) Applications | |
| BrightField | |
| BrightField/DarkField | |
| Reflected Light DIC | |
| High Contrast DIC | |
| DIC with circular polarized light | |
| Total Interference Contrast | |
| Polarization Contrast | |
| Options | |
| Definite Focus.2 | |
| Confocal Microscopy |
|
| - Ultra Violet | |
| - VIS (visible light) | |
| - NLO-IR / 2 Photon | |
| Total Internal Reflection Fluorescence | |
| Apotome | |
| Microdissection | |
-
Objective ring ACR for objective sleeve cylindrical short
Item no.: 424508-0000-000 -
PlasDIC slider for LD PN 40x/0.60 corr
Item no.: 444505-0000-000

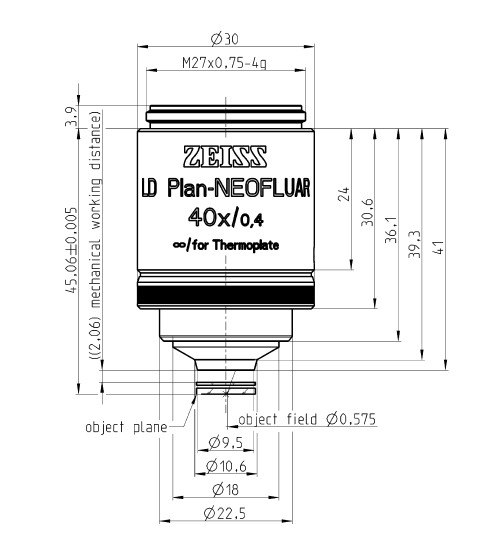

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility
Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.
