Objective

Objective "A-Plan" 20x/0.45 Ph2 M27

Item no.: 421051-9910-000
Description

Objective A-Plan 20x/0.45 Ph2 M27 (FWD=0.46mm)

Full Description
Magnification 20x
Numerical Aperture 0.45
Free Working Distance [mm] 0.46
Coverglass Thickness [mm] 0.17
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast Ph 2
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000

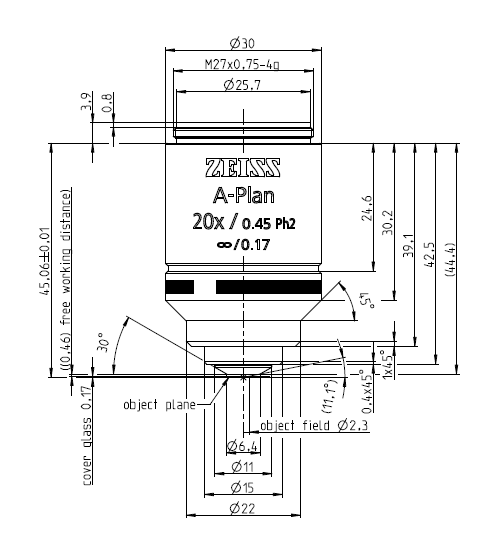

Mechanical Dimensions
Transmittance curve
A-Plan

This class of objectives provides an attractive alternative to “Achroplan” objectives, both in routine and research applications. “A-Plan” objectives provide rich contrast and can be used with eyepieces with a field of view up to 23 mm.They allow contrasting methods ranging from brightfield to phase contrast and for excitation wavelength within the visible spectrum they can be used for epifluorescence work.

Objective A-Plan 20x/0.45 Ph2 M27 (FWD=0.46mm)
