Objective

Objective "N-Achroplan" 100x/1.25 Oil Iris M27

Item no.: 420996-9900-000
Description

Objective N-Achroplan 100x/1.25 Oil Iris M27 (FWD=0.29mm), Numerical Aperture adjustable from 0.7 to...

Full Description
Magnification 100x
Numerical Aperture 0.7 - 1.25
Free Working Distance [mm] 0.29
Coverglass Thickness [mm] 0.17
Thread Type M27x0.75
Immersion Oil
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris Yes
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000
  • Immersion suction ring d=22.5 mm (10 pcs.)
    Immersion suction ring d=22.5 mm (10 pcs.)
    Item no.: 444822-0000-000
  • Objective ring ACR for objective sleeve conical short
    Objective ring ACR for objective sleeve conical short
    Item no.: 424509-0000-000
  • Immersion oil
    Immersion oil "Immersol" 518 N, bottle 100 ml
    Item no.: 000000-1111-807
  • Immersion oil
    Immersion oil "Immersol" 518 N, bottle 500 ml
    Item no.: 000000-1111-809
  • Immersion oil
    Immersion oil "Immersol" 518 N, oiler 20 ml
    Item no.: 000000-1111-806
  • Box of lens cleaning paper
    Box of lens cleaning paper
    Item no.: 462975-0000-000
Mechanical Dimensions

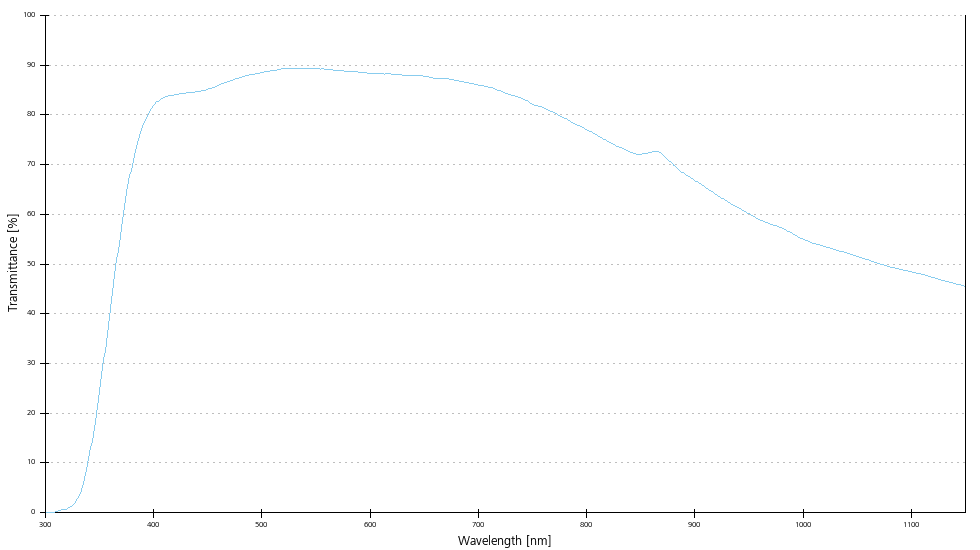

Transmittance curve
Achroplan/N-Achroplan

These are objectives for transmitted-light routine microscopy and epi-fluorescence microscopy with visible-light excitation. Thanks to their excellent image flatness across visual field diameters of 23 mm, these objectives are ideal for photomicrography in routine microscopy.

Objective N-Achroplan 100x/1.25 Oil Iris M27 (FWD=0.29mm), Numerical Aperture adjustable from 0.7 to 1.25, incl. Immersol 518 N, oiler 20ml
