Objective

Objective "N-Achroplan" 10x/0.25 Ph1 M27

Item no.: 420941-9910-000
Description

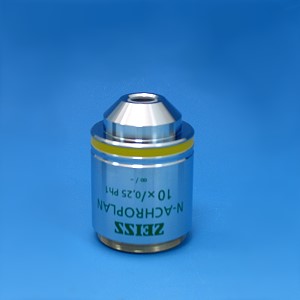

Objective N-Achroplan 10x/0.25 Ph1 M27 (WD=6.0mm)

Full Description

This objective can also be used for microscopy of specimen without cover glass.

Magnification 10x
Numerical Aperture 0.25
Free Working Distance [mm] 6.0
Coverglass Thickness [mm] 0.17
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast Ph 1
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000

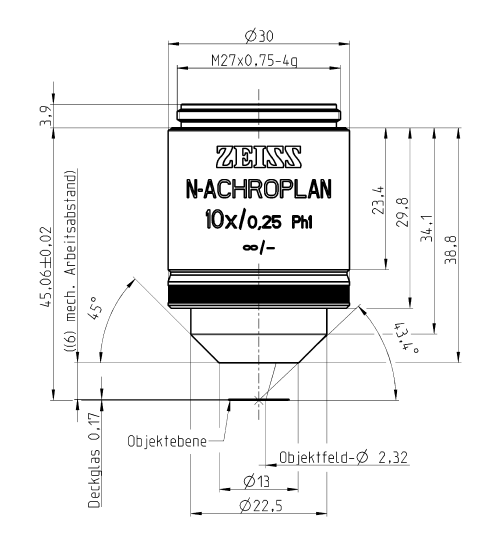

Mechanical Dimensions
Transmittance curve
Achroplan/N-Achroplan

These are objectives for transmitted-light routine microscopy and epi-fluorescence microscopy with visible-light excitation. Thanks to their excellent image flatness across visual field diameters of 23 mm, these objectives are ideal for photomicrography in routine microscopy.

Objective N-Achroplan 10x/0.25 Ph1 M27 (WD=6.0mm)
