Objective Plan-Apochromat 150x/1.35 Glyc Corr DIC M27

Objective Plan-Apochromat 150x/1.35 Glyc Corr DIC M27

Item no.: 420792-9970-000
Description

Objective Plan-Apochromat 150x/1.35 Glyc DIC Corr M27 (CG=0.14-0.18mm at 23 °C and CG=0.15-0.19 at ...

Full Description

Its correction ring enables this objective to be set for different cover slip thicknesses and temperatures between 23 °C and 37 °C. The correction ring Features two markings, a black one on the left and a red one on the right. The black marking is used for work at 23 °C. It is possible to set cover slip thicknesses between 0.14 and 0.18 mm. The red marking is used for work at 37 °C. Here, the cover slip thickness can be set in the range between 0.15 and 0.19 mm.

Magnification 150x
Numerical Aperture 1.35
Free Working Distance [mm] 0.17 at cover glass 0.16
Coverglass Thickness [mm] 0.15 - 0.19
Thread Type M27x0.75
Immersion Glycerine
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance
Correction Ring Yes
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection Yes
  • DIC slider PA 150x/1.35 III
    DIC slider PA 150x/1.35 III
    Item no.: 426968-9000-000
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000
  • Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Item no.: 474030-9000-000
  • Objective heater 33/38 S1 (D)
    Objective heater 33/38 S1 (D)
    Item no.: 411860-9067-000
  • Objective ring ACR for objective sleeve conical long
    Objective ring ACR for objective sleeve conical long
    Item no.: 424510-0000-000
  • Immersion medium Immersol G, oiler 20 ml
    Immersion medium Immersol G, oiler 20 ml
    Item no.: 462959-9901-000
  • Box of lens cleaning paper
    Box of lens cleaning paper
    Item no.: 462975-0000-000
Mechanical Dimensions

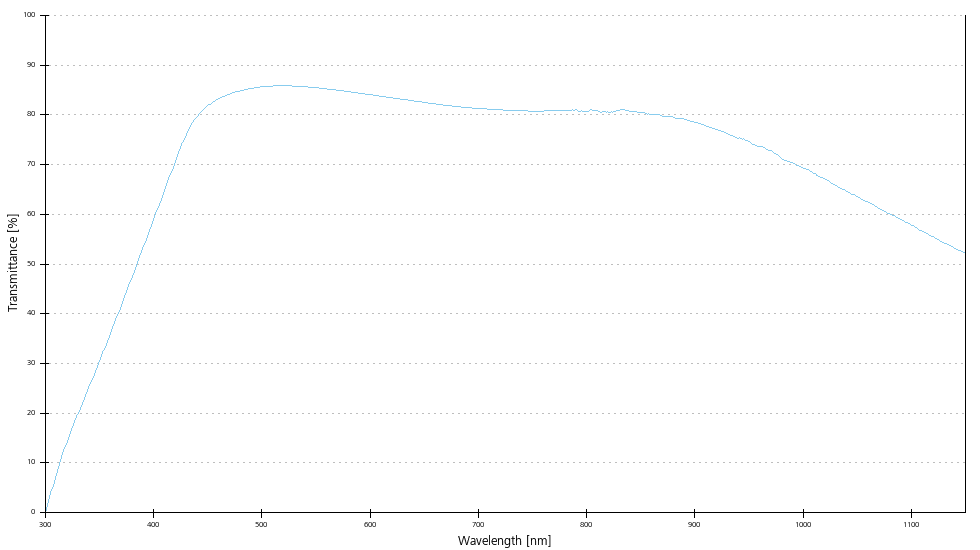

Transmittance curve
Plan-Apochromat SF23

This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, “Plan Apochromat” objectives are excellently suited to fluorescence applications.

Objective Plan-Apochromat 150x/1.35 Glyc DIC Corr M27 (CG=0.14-0.18mm at 23 °C and CG=0.15-0.19 at 37 °C) (FWD=0.17mm at CG=0.16mm), VIS-IR incl. Immersol G, bottle 10 ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc.
