Objective Plan-Apochromat 63x/1.4 Oil DIC M27

Objective Plan-Apochromat 63x/1.4 Oil DIC M27

Item no.: 420782-9900-799
Description

Objective Plan-Apochromat 63x/1.4 Oil DIC M27 (FWD=0.19mm), incl. Immersol 518 F for 30 °C, oiler 2...

Full Description

This objective has a high Strehl ratio, especially for Superresolution Microscopy.

Magnification 63x
Numerical Aperture 1.4
Free Working Distance [mm] 0.19
Coverglass Thickness [mm] 0.17
Thread Type M27x0.75
Immersion Oil
Field of View [mm] 25
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC Yes
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC Yes
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • DIC slider PA 63x/1.4 II HC
    DIC slider PA 63x/1.4 II HC
    Item no.: 426952-0000-000
  • DIC slider PA 63x/1.40 III
    DIC slider PA 63x/1.40 III
    Item no.: 426957-0000-000
  • Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Item no.: 474030-9000-000
  • Immersion suction ring d=22.5 mm (10 pcs.)
    Immersion suction ring d=22.5 mm (10 pcs.)
    Item no.: 444822-0000-000
  • Objective heater 22.5/34 S1 (D)
    Objective heater 22.5/34 S1 (D)
    Item no.: 411860-9064-000
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
  • Temperable Objective Ring 22.5/32.5 mm S1 (D)
    Temperable Objective Ring 22.5/32.5 mm S1 (D)
    Item no.: 411882-9081-000
  • Immersion oil
    Immersion oil "Immersol" 518 F fluorescence free, bottle 100 ml
    Item no.: 444962-0000-000
  • Immersion oil
    Immersion oil "Immersol" 518 F fluorescence free, bottle 500 ml
    Item no.: 444964-0000-000
  • Immersion oil
    Immersion oil "Immersol" 518 F fluorescence free, oiler 20 ml
    Item no.: 444960-0000-000
  • Immersion oil Immersol 518 F for 30°C fluorescence free, oiler 20ml
    Immersion oil Immersol 518 F for 30°C fluorescence free, oiler 20ml
    Item no.: 444970-9000-000
  • Immersion oil Immersol 518 F for 37°C fluorescence free, oiler 20ml
    Immersion oil Immersol 518 F for 37°C fluorescence free, oiler 20ml
    Item no.: 444970-9010-000
  • Box of lens cleaning paper
    Box of lens cleaning paper
    Item no.: 462975-0000-000

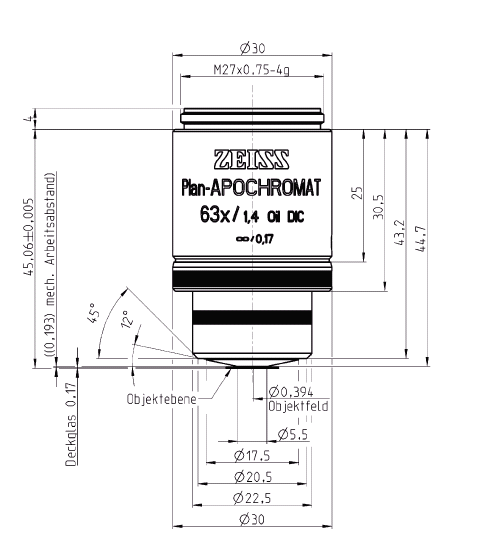

Mechanical Dimensions
Transmittance curve
Plan-Apochromat SF25

This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, “Plan Apochromat” objectives are excellently suited to fluorescence applications.

Objective Plan-Apochromat 63x/1.4 Oil DIC M27 (FWD=0.19mm), incl. Immersol 518 F for 30 °C, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc. With serial number. Strehl ratio >90%.
