Objective α

Objective α "Plan-Apochromat" 63x/1.46 Oil Corr M27

Item no.: 420780-9970-000
(no longer available)
Description

Objective alpha Plan-Apochromat 63x/1.46 Oil Corr M27 TIRF (FWD=0.10mm), incl. Immersol 518 F, oiler...

Full Description

This objective is flattened and corrected for a 14 mm field of view.

Magnification 63x
Numerical Aperture 1.46
Free Working Distance [mm] 0.10
Coverglass Thickness [mm] 0.15 - 0.19
Thread Type M27x0.75
Immersion Oil
Field of View [mm] 20
Parfocal Length [mm] 45.06
Long Distance
Correction Ring Yes
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence Yes
ApoTome Yes
Microdissection
  • DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III
    DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III
    Item no.: 426946-0000-000
  • Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Item no.: 474030-9000-000
  • Objective heater 33/38 S1 (D)
    Objective heater 33/38 S1 (D)
    Item no.: 411860-9067-000
  • Objective ring ACR for objective sleeve conical long
    Objective ring ACR for objective sleeve conical long
    Item no.: 424510-0000-000
  • Transmission grid PH
    Transmission grid PH "ApoTome" for "Axioplan" 2
    Item no.: 000000-1151-001
  • Transmission grid VH
    Transmission grid VH "ApoTome" for "Axiovert" 200
    Item no.: 000000-1151-002
  • Transmission grid H1
    Transmission grid H1 "ApoTome" for "Axio Imager"
    Item no.: 423662-0000-000
  • Immersion oil
    Immersion oil "Immersol" 518 F fluorescence free, bottle 100 ml
    Item no.: 444962-0000-000
  • Immersion oil
    Immersion oil "Immersol" 518 F fluorescence free, bottle 500 ml
    Item no.: 444964-0000-000
  • Immersion oil
    Immersion oil "Immersol" 518 F fluorescence free, oiler 20 ml
    Item no.: 444960-0000-000
  • Box of lens cleaning paper
    Box of lens cleaning paper
    Item no.: 462975-0000-000
Mechanical Dimensions

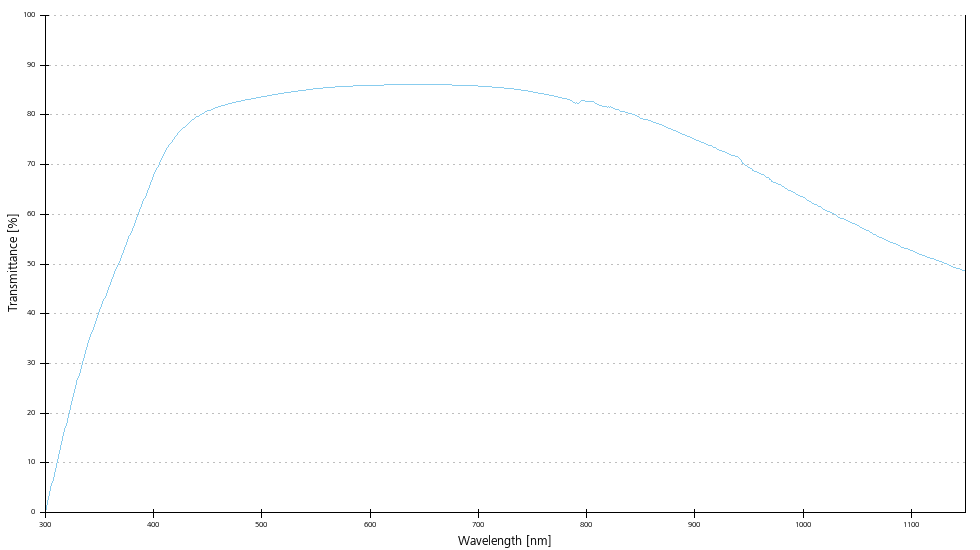

Transmittance curve
Plan-Apochromat SF20

This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, “Plan Apochromat” objectives are excellently suited to fluorescence applications.

Objective alpha Plan-Apochromat 63x/1.46 Oil Corr M27 TIRF (FWD=0.10mm), incl. Immersol 518 F, oiler 20 ml and Cover glasses, high performance, CG=0.17 mm, box with 100 pc.
