    Objective

    Objective "Plan-Apochromat" 40x/1.4 Oil DIC M27

    Item no.: 420762-9900-000
    Description

    Objective Plan-Apochromat 40x/1.4 Oil DIC M27 (FWD=0.13mm), (UV)VIS-IR, incl. Immersol 518 F, oiler ...

    Full Description
    Magnification 40x
    Numerical Aperture 1.4
    Free Working Distance [mm] 0.13
    Coverglass Thickness [mm] 0.17
    Thread Type M27x0.75
    Immersion Oil
    Field of View [mm] 25
    Parfocal Length [mm] 45.06
    Long Distance
    Correction Ring
    Iris
    Optical System Infinity Color Corrected System (ICS)
    Flatness
    Color Correction
    Biomedical Applications
    Fluorescence Yes
    - Multichannel
    - Ultraviolet Transmission
    - Infra Red Transmission
    BrightField Yes
    Differential Interference Contrast
    High Contrast DIC
    Polarization-Optical DIC
    Phase Contrast
    VAREL Contrast
    Hoffman Modulation Contrast
    Polarization Contrast
    Materials (Reflected Light) Applications
    BrightField Yes
    BrightField/DarkField
    Reflected Light DIC
    High Contrast DIC
    DIC with circular polarized light
    Total Interference Contrast
    Polarization Contrast
    Options
    Definite Focus.2
    Confocal Microscopy Yes
    - Ultra Violet
    - VIS (visible light)
    - NLO-IR / 2 Photon
    Total Internal Reflection Fluorescence
    ApoTome Yes
    Microdissection Yes
    • DIC slider CA 40x/1.2 W III
      DIC slider CA 40x/1.2 W III
      Item no.: 426948-0000-000
    • Cover glasses, high performance, D=0.17mm, box with 1000 pc.
      Cover glasses, high performance, D=0.17mm, box with 1000 pc.
      Item no.: 474030-9000-000
    • Objective heater 25.5/33 S1 (D)
      Objective heater 25.5/33 S1 (D)
      Item no.: 411860-9065-000
    • Objective ring ACR for objective sleeve conical short
      Objective ring ACR for objective sleeve conical short
      Item no.: 424509-0000-000
    • Immersion oil
      Immersion oil "Immersol" 518 F fluorescence free, bottle 100 ml
      Item no.: 444962-0000-000
    • Immersion oil
      Immersion oil "Immersol" 518 F fluorescence free, bottle 500 ml
      Item no.: 444964-0000-000
    • Immersion oil
      Immersion oil "Immersol" 518 F fluorescence free, oiler 20 ml
      Item no.: 444960-0000-000
    • Box of lens cleaning paper
      Box of lens cleaning paper
      Item no.: 462975-0000-000
    Mechanical Dimensions

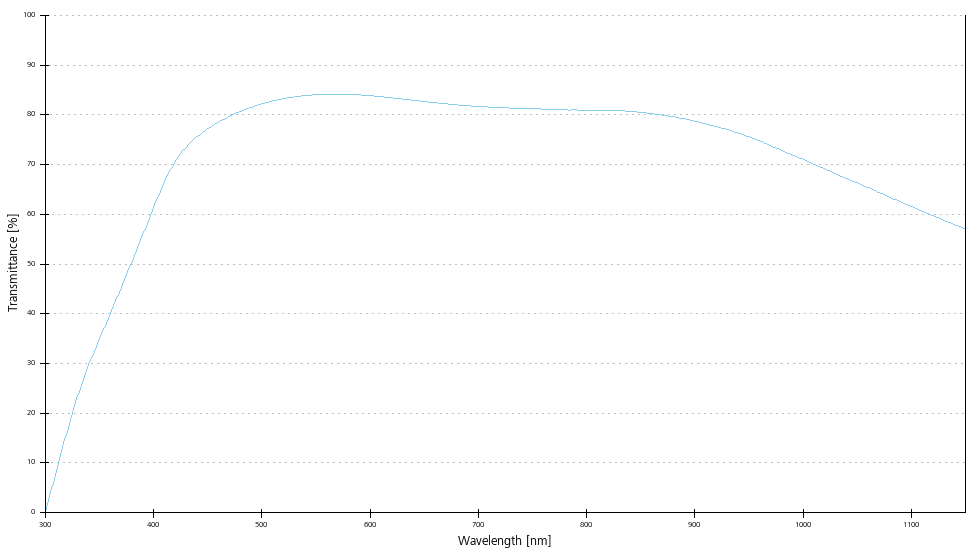

    Transmittance curve
    Plan-Apochromat SF25

    This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, “Plan Apochromat” objectives are excellently suited to fluorescence applications.

    Objective Plan-Apochromat 40x/1.4 Oil DIC M27 (FWD=0.13mm), (UV)VIS-IR, incl. Immersol 518 F, oiler 20 ml and Cover glasses, high performance, CG=0.17 mm, box with 100 pc.
