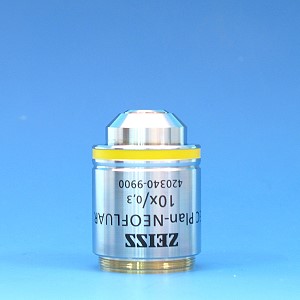

            Objective EC "Plan-Neofluar" 10x/0.30 M27
Objective EC "Plan-Neofluar" 10x/0.30 M27
Item no.: 420340-9900-000(no longer available)
Objective EC "Plan-Neofluar" 10x/0.30 M27 (WD=5.5mm)
Full Description| Magnification | 10x |
| Numerical Aperture | 0.30 |
| Free Working Distance [mm] | 5.5 |
| Coverglass Thickness [mm] | 0.17 |
| Thread Type | M27x0.75 |
| Immersion | Without Immersion |
| Field of View [mm] | 25 |
| Parfocal Length [mm] | 45.06 |
| Long Distance | |
| Correction Ring | |
| Iris | |
| Optical System | Infinity Color Corrected System (ICS) |
| Color Correction | semi-apochromatic |
| Biomedical Applications | |
|---|---|
| Fluorescence |   |
| - Multichannel | |
| - Ultraviolet Transmission | |
| - Infra Red Transmission | |
| BrightField |   |
| DIC [Differential Interference Contrast] | |
| High Contrast DIC | |
| PlasDIC |   |
| Phase Contrast | |
| VAREL Contrast | |
| Hoffman Modulation Contrast | |
| Polarization Contrast | |
| Materials (Reflected Light) Applications | |
| BrightField | |
| BrightField/DarkField | |
| Reflected Light DIC | |
| High Contrast DIC | |
| DIC with circular polarized light | |
| Total Interference Contrast | |
| Polarization Contrast | |
| Options | |
| Definite Focus.2 | |
| Confocal Microscopy |   |
| - Ultra Violet | |
| - VIS (visible light) | |
| - NLO-IR / 2 Photon | |
| Total Internal Reflection Fluorescence | |
| Apotome |   |
| Microdissection | |
-
                                                          Objective ring ACR for objective sleeve cylindrical shortItem no.: 424508-0000-000Objective ring ACR for objective sleeve cylindrical shortItem no.: 424508-0000-000  Objective ring ACR for objective sleeve cylindrical short
-
                                                          Adapter 30mm with optics and DIC slider mountItem no.: 424516-9041-000Adapter 30mm with optics and DIC slider mountItem no.: 424516-9041-000  Adapter 30mm with optics and DIC slider mount for adaptation of objectives M27 with parfocal length of 45mm
-
                                                          DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 IIItem no.: 426940-0000-000DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 IIItem no.: 426940-0000-000  DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II

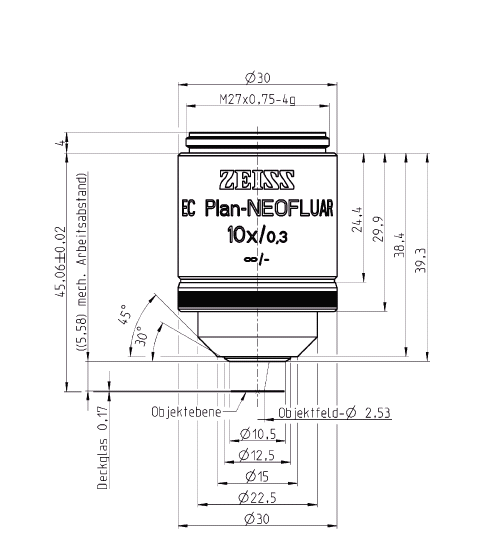

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility

                                            Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.

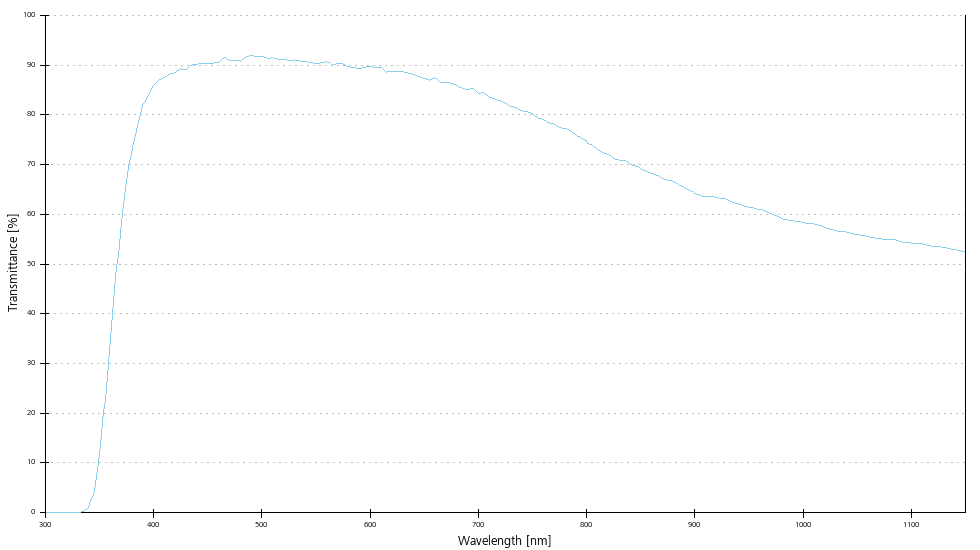

                                            The Enhanced Contrast Plan-Neofluar universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC Epiplan-Neofluar objectives for reflected-light work, the EC Plan-Neofluar Antiflex objective for reflection contrast, and EC Plan-Neofluar Pol objectives for the requirements of polarizing microscopy.
Objective EC "Plan-Neofluar" 10x/0.30 M27 (WD=5.5mm)
