    Objective EC

    Objective EC "Plan-Neofluar" 5x/0.16 M27

    Item no.: 420330-9901-000
    Description

    Objective EC Plan-Neofluar 5x/0.16 M27 (FWD=18.5mm)

    Full Description
    Magnification 5x
    Numerical Aperture 0.16
    Free Working Distance [mm] 18.5
    Coverglass Thickness [mm] 0.17
    Thread Type M27x0.75
    Immersion Without Immersion
    Field of View [mm] 25
    Parfocal Length [mm] 45.06
    Long Distance
    Correction Ring
    Iris
    Optical System Infinity Color Corrected System (ICS)
    Flatness
    Color Correction
    Biomedical Applications
    Fluorescence Yes
    - Multichannel
    - Ultraviolet Transmission
    - Infra Red Transmission
    BrightField Yes
    Differential Interference Contrast
    High Contrast DIC
    Polarization-Optical DIC
    Phase Contrast
    VAREL Contrast
    Hoffman Modulation Contrast
    Polarization Contrast
    Materials (Reflected Light) Applications
    BrightField Yes
    BrightField/DarkField
    Reflected Light DIC
    High Contrast DIC
    DIC with circular polarized light
    Total Interference Contrast
    Polarization Contrast
    Options
    Definite Focus.2
    Confocal Microscopy Yes
    - Ultra Violet
    - VIS (visible light)
    - NLO-IR / 2 Photon
    Total Internal Reflection Fluorescence
    ApoTome
    Microdissection Yes
    • DIC slider EC PN 5x/0.15 0
      DIC slider EC PN 5x/0.15 0
      Item no.: 426960-0000-000
    • Objective ring ACR for objective sleeve cylindrical short
      Objective ring ACR for objective sleeve cylindrical short
      Item no.: 424508-0000-000
    • Adapter 30mm with optics and DIC slider mount
      Adapter 30mm with optics and DIC slider mount
      Item no.: 424516-9041-000
    Mechanical Dimensions

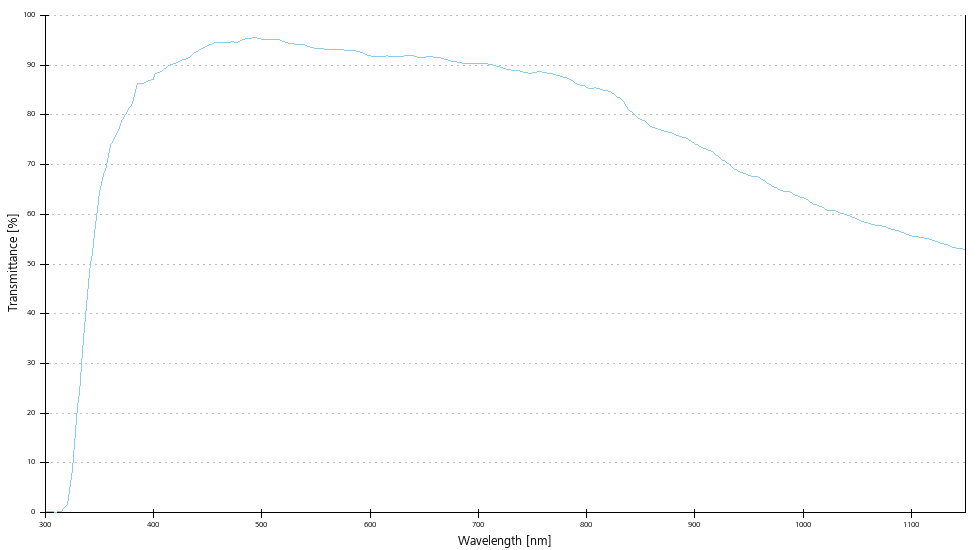

    Transmittance curve
    EC Plan-Neofluar

    The Enhanced Contrast “Plan-Neofluar” universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC “Epiplan-Neofluar” objectives for reflected-light work, the EC “Plan-Neofluar” Antiflex objective for reflection contrast, and EC “Plan-Neofluar” Pol objectives for the requirements of polarizing microscopy.

    Objective EC Plan-Neofluar 5x/0.16 M27 (FWD=18.5mm)
