Objective EC

Objective EC "Plan-Neofluar" 1.0x/0.025 M27

Item no.: 420300-9900-000
Description

Objective EC Plan-Neofluar 1x/0.025 M27 (FWD=3.0mm)

Full Description

This objective is used as an overview objective for Histology.

It permits viewing of an object field with a diameter of up to 25 mm. This means that a standard 26x76 mm slide can be entirely examined with a single move in the x-direction. Therefore an adequate field illumination is required. The only condenser which illuminate the 25 mm diameter object field (not possible anyway without a condenser) is the achromatic aplanatic universal condenser 0.9 used in the brightfield position and with swung-out front lens.

On account of its low aperture, this transmitted-light objective can be used with cover slips of any thickness or without any cover slip at all.

Magnification 1.0x
Numerical Aperture 0.025
Free Working Distance [mm] 2.9
Coverglass Thickness [mm] 0.17
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome
Microdissection
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000
Mechanical Dimensions

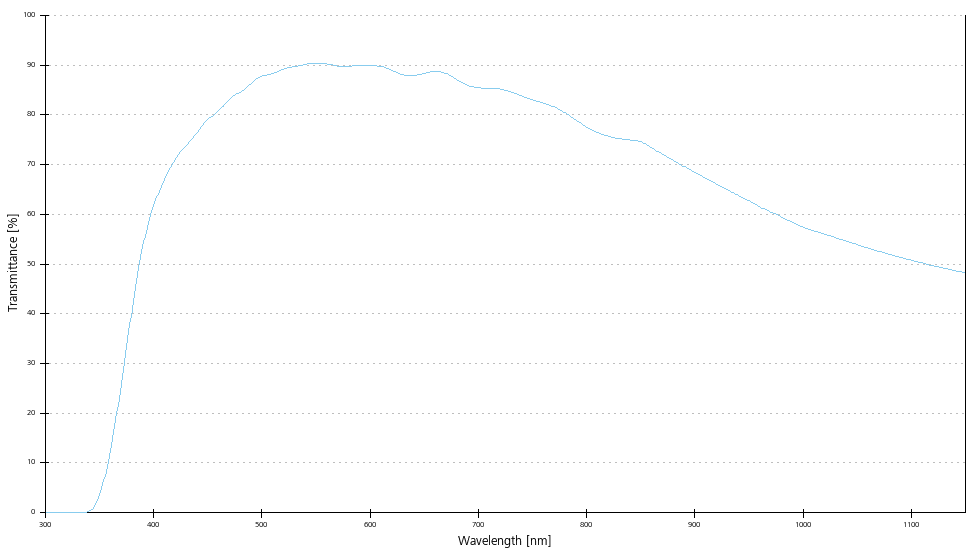

Transmittance curve
EC Plan-Neofluar

The Enhanced Contrast “Plan-Neofluar” universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC “Epiplan-Neofluar” objectives for reflected-light work, the EC “Plan-Neofluar” Antiflex objective for reflection contrast, and EC “Plan-Neofluar” Pol objectives for the requirements of polarizing microscopy.

Objective EC Plan-Neofluar 1x/0.025 M27 (FWD=3.0mm)
