Objective

Objective "Plan-Apochromat" 10x/0.45

Item no.: 000000-1063-139
(no longer available)
Description

Objective Plan-Apochromat 10x/0.45 (WD=2.0mm)

Full Description
Magnification 10x
Numerical Aperture 0.45
Free Working Distance [mm] 2.0
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
ApoTome Yes
Microdissection
  • DIC slider PA 10x/0.45 II
    DIC slider PA 10x/0.45 II
    Item no.: 000000-1045-073
  • Adapter M 27x0.75 / W 0.8 H
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168
  • Transmission grid PL
    Transmission grid PL "ApoTome" for "Axioplan" 2
    Item no.: 000000-1151-003
  • Transmission grid L1
    Transmission grid L1 "ApoTome" for "Axio Imager"
    Item no.: 423664-0000-000
Mechanical Dimensions

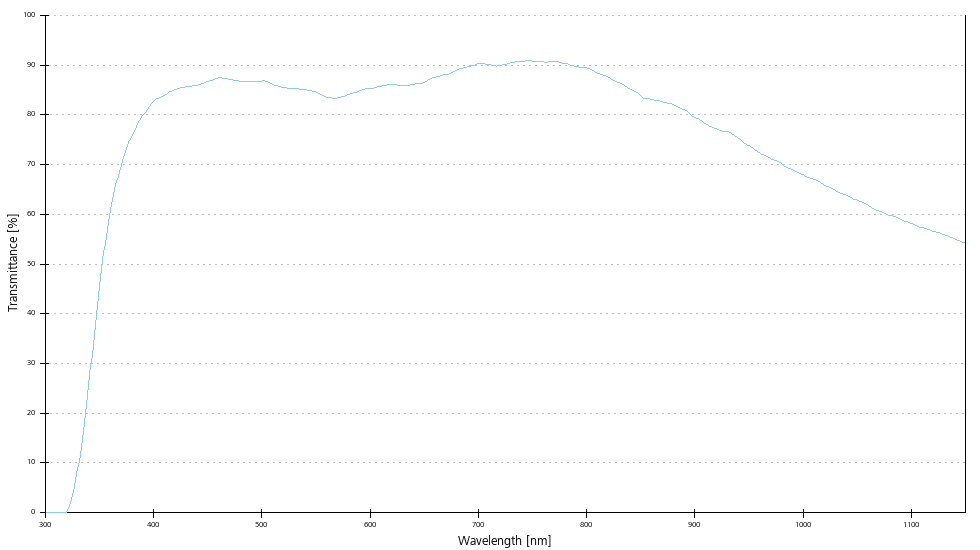

Transmittance curve
Plan-Apochromat SF25

This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, “Plan Apochromat” objectives are excellently suited to fluorescence applications.

Objective Plan-Apochromat 10x/0.45 (WD=2.0mm)
