Carl Zeiss NV-SA - Objective Assistant - Objective LD C-Apochromat 40x/1.1 W Corr

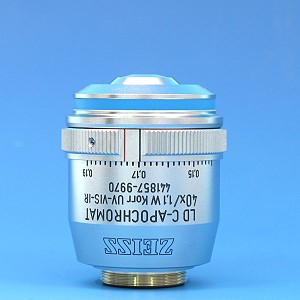

Objective LD C-Apochromat 40x/1.1 W Corr

Item no.: 441857-9970-000
(no longer available)

Description

Objective LD C-Apochromat 40x/1.1 W Corr (D=0.14-0.19mm) (WD=0.62mm at D=0.17mm), UV-VIS-IR incl. Immersol W, bottle 20 ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.

Full Description

Biomedical Applications
Magnification	40x
Numerical Aperture	1.1
Free Working Distance [mm]	0.62 at cover glass 0.17
Coverglass Thickness [mm]	0.14 - 0.19
Thread Type	W0.8x1/36"
Immersion	Water and W 2010
Field of View [mm]	25
Parfocal Length [mm]	45.06
Long Distance
Correction Ring
Iris
Optical System	Infinity Color Corrected System (ICS)
Color Correction	apochromatic
Fluorescence
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection

Adapter M 27x0.75 / W 0.8 H "0"

Item no.: 000000-1095-168

Adapter M 27x0.75 / W 0.8 H "0"
Item no.: 000000-1095-168

Adapter M 27x0.75 / W 0.8 H "0"
Objective heater 33/38 S1 (D)

Item no.: 411860-9067-000

Objective heater 33/38 S1 (D)
Item no.: 411860-9067-000

Objective heater 33/38 S1 (D) - with oil discharge channel - clamping via front dia. 33 mm - max. objective dia. 38 mm - temperature range of room temperature up to +45°C
DIC slider CA 40x/1.2 W, LD CA 40x/1.1 W III

Item no.: 426948-0000-000

DIC slider CA 40x/1.2 W, LD CA 40x/1.1 W III
Item no.: 426948-0000-000

DIC slider CA 40x/1.2 W, LD CA 40x/1.1 W III
Immersion medium Immersol W 2010, oiler 20 ml

Item no.: 444969-0000-000

Immersion medium Immersol W 2010, oiler 20 ml
Item no.: 444969-0000-000

Immersion medium Immersol W 2010, oiler 20 ml ne=1.3339 (23°C) for water immersion
Box of lens cleaning paper (300 sheets)

Item no.: 462975-0000-000

Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000

Box of lens cleaning paper (300 sheets)
Cover glasses, high performance, D=0.17mm, box with 1000 pc.

Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc.
Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc. Size 18x18 mm² type 1 1/2 H as per ISO 8255-1 with restricted thickness-related tolerance D=0.17 mm +/- 0.005 mm refractive index = 1.5255 +/- 0.0015, Abbe number = 56 +/-2 recommended for applications with high numerical aperture objectives

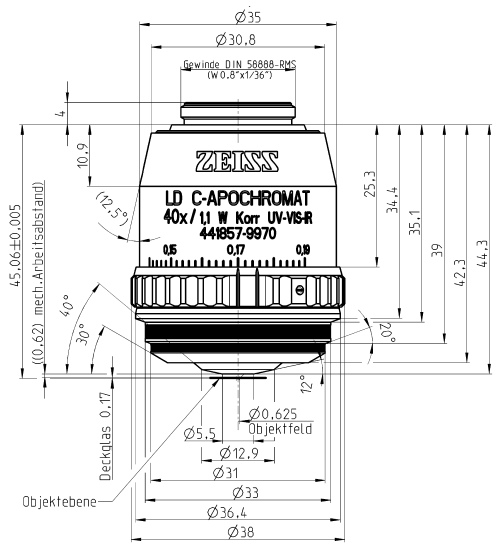

Note:

All measures in [mm]

mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility

Note:

Please note that due to production tolerances, the given values are typical only and not guaranteed.

LD C-Apochromat

These objectives are additionally a part of the class of C-Apochromat but with an extra long working distance.
