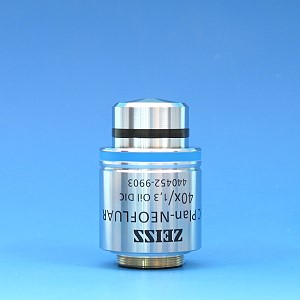

Objective EC "Plan-Neofluar" 40x/1.30 Oil DIC

Objective EC "Plan-Neofluar" 40x/1.30 Oil DIC

Item no.: 440452-9903-000
(no longer available)
Description

Objective EC Plan-Neofluar 40x/1.30 Oil DIC (WD=0.21mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.

Full Description
Magnification 40x
Numerical Aperture 1.3
Free Working Distance [mm] 0.20
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Oil
Field of View [mm] 25
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome Yes
Microdissection
  • DIC slider EC PN and Fluar 40x/1.30 III, PA 40x/0.95 III
    DIC slider EC PN and Fluar 40x/1.30 III, PA 40x/0.95 III
    Item no.: 426944-0000-000
  • Adapter M 27x0.75 / W 0.8 H "0"
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168
  • Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Item no.: 474030-9000-000
  • Immersion suction ring d=22.5 mm (10 pcs.)
    Immersion suction ring d=22.5 mm (10 pcs.)
    Item no.: 444822-0000-000
  • Temperable Objective Ring 22.5/32.5 mm S1 (D)
    Temperable Objective Ring 22.5/32.5 mm S1 (D)
    Item no.: 411882-9081-000
  • Transmission grid PL Apotome for Axioplan 2
    Transmission grid PL Apotome for Axioplan 2
    Item no.: 000000-1151-003
  • Transmission grid M Apotome for Axio Imager
    Transmission grid M Apotome for Axio Imager
    Item no.: 423663-0000-000
  • Immersion oil "Immersol" 518 F fluorescence free, bottle 100 ml
    Immersion oil "Immersol" 518 F fluorescence free, bottle 100 ml
    Item no.: 444962-0000-000
  • Immersion oil "Immersol" 518 F fluorescence free, bottle 500 ml
    Immersion oil "Immersol" 518 F fluorescence free, bottle 500 ml
    Item no.: 444964-0000-000
  • Immersion oil "Immersol" 518 F fluorescence free, oiler 20 ml
    Immersion oil "Immersol" 518 F fluorescence free, oiler 20 ml
    Item no.: 444960-0000-000
  • Box of lens cleaning paper
    Box of lens cleaning paper
    Item no.: 462975-0000-000
  • Objective heater 22.5/34 S1 (D)
    Objective heater 22.5/34 S1 (D)
    Item no.: 411860-9064-000

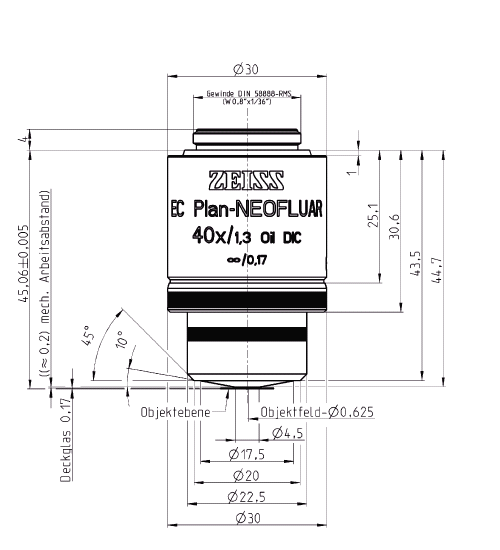

Mechanical Dimensions
Transmittance curve
EC Plan-Neofluar

The Enhanced Contrast Plan-Neofluar universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC Epiplan-Neofluar objectives for reflected-light work, the EC Plan-Neofluar Antiflex objective for reflection contrast, and EC Plan-Neofluar Pol objectives for the requirements of polarizing microscopy.

Objective EC Plan-Neofluar 40x/1.30 Oil DIC (WD=0.21mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.
