Objective LD Plan-Neofluar 63x/0.75 Corr Ph2

Item no.: 441371-9970-000
(no longer available)

Description

Objective LD Plan-Neofluar 63x/0.75 Corr Ph2 (D=0-1.5mm) (WD=2.2mm at D=0mm and WD=1.2mm at D=1.5mm), incl. Cover glasses, high performance, D=0.17mm, box with 100 pc.

Full Description

Biomedical Applications
Magnification	63x
Numerical Aperture	0.75
Free Working Distance [mm]	1.7 at cover glass 0.75
Coverglass Thickness [mm]	0 - 1.5
Thread Type	W0.8x1/36"
Immersion	Without Immersion
Field of View [mm]	23
Parfocal Length [mm]	45.06
Long Distance
Correction Ring
Iris
Optical System	Infinity Color Corrected System (ICS)
Color Correction	semi-apochromatic
Fluorescence
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast	Ph 2
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection

Adapter M 27x0.75 / W 0.8 H "0"

Item no.: 000000-1095-168

Adapter M 27x0.75 / W 0.8 H "0"

Adapter M 27x0.75 / W 0.8 H "0"
Item no.: 000000-1095-168

Adapter M 27x0.75 / W 0.8 H "0"
DIC slider LD PN 63x/0.75 II

Item no.: 426956-0000-000

DIC slider LD PN 63x/0.75 II

DIC slider LD PN 63x/0.75 II
Item no.: 426956-0000-000

DIC slider LD PN 63x/0.75 II
PlasDIC slider for LD PN 63x/0.75 corr

Item no.: 444506-0000-000

PlasDIC slider for LD PN 63x/0.75 corr

PlasDIC slider for LD PN 63x/0.75 corr
Item no.: 444506-0000-000

PlasDIC slider for LD PN 63x/0.75 corr
Cover glasses, high performance, D=0.17mm, box with 1000 pc.

Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc.

Cover glasses, high performance, D=0.17mm, box with 1000 pc.
Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc. Size 18x18 mm² type 1 1/2 H as per ISO 8255-1 with restricted thickness-related tolerance D=0.17 mm +/- 0.005 mm refractive index = 1.5255 +/- 0.0015, Abbe number = 56 +/-2 recommended for applications with high numerical aperture objectives

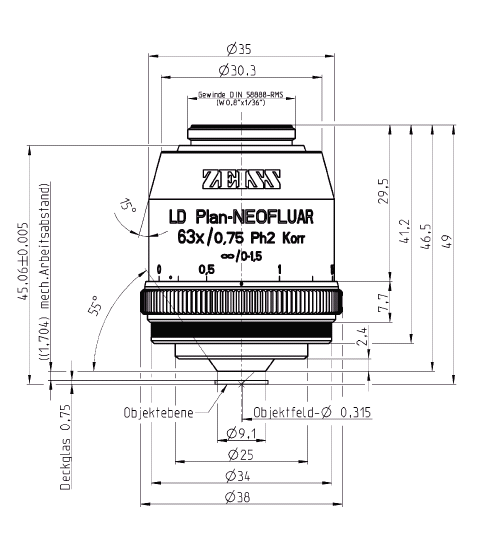

Note:

All measures in [mm]

mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility

Note:

Please note that due to production tolerances, the given values are typical only and not guaranteed.

LD Plan-Neofluar

The version of the EC Plan-Neofluar objectives with extra long working distance to be used at the inverted research microscope Axiovert 200. Beside the well-known, fluorescence of all EC Plan-Neofluar objectives the LD versions have a correction collar to adjust the objective to different cover glass thicknesses from 0 to 1.5 mm. They can of course be used in all known contrast techniques such as Brightfield, Phase contrast, DIC and PlasDIC.
