Objective LD "Plan-Neofluar" 40x/0.6 Corr Ph2

Objective LD "Plan-Neofluar" 40x/0.6 Corr Ph2

Item no.: 441351-9970-000
(no longer available)
Description

Objective LD Plan-Neofluar 40x/0.60 Corr Ph2 (D=0-1.5mm) (WD=3.3mm at D=0mm and WD=2.5mm at D=1.5mm)

Full Description
Magnification 40x
Numerical Aperture 0.6
Free Working Distance [mm] 2.9 at cover glass 0.75
Coverglass Thickness [mm] 0 - 1.5
Thread Type W0.8x1/36"
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance Yes
Correction Ring Yes
Iris
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC Yes
Phase Contrast Ph 2
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection
  • DIC slider LD PN 40x/0.60 II
    DIC slider LD PN 40x/0.60 II
    Item no.: 426955-0000-000

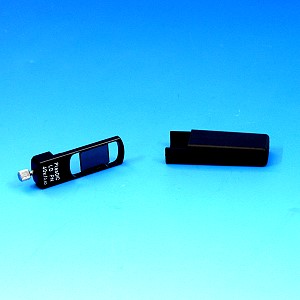

  • "PlasDIC" slider for LD PN 40x/0.60 corr
    "PlasDIC" slider for LD PN 40x/0.60 corr
    Item no.: 444505-0000-000
  • Adapter M 27x0.75 / W 0.8 H "0"
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168
Mechanical Dimensions

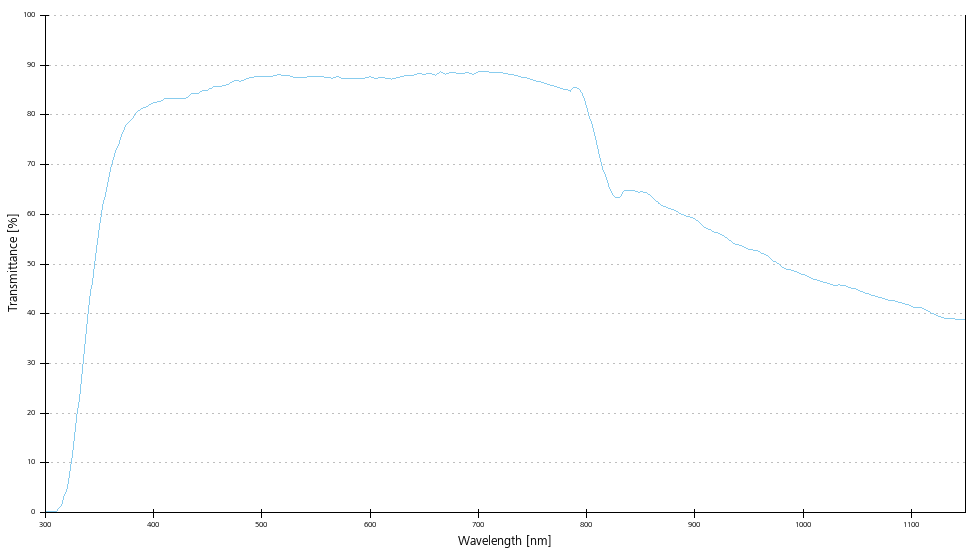

Transmittance curve
LD Plan-Neofluar

The version of the EC Plan-Neofluar objectives with extra long working distance to be used at the inverted research microscope Axiovert 200. Beside the well-known, fluorescence of all EC Plan-Neofluar objectives the LD versions have a correction collar to adjust the objective to different cover glass thicknesses from 0 to 1.5 mm. They can of course be used in all known contrast techniques such as Brightfield, Phase contrast, DIC and PlasDIC.

Objective LD Plan-Neofluar 40x/0.60 Corr Ph2 (D=0-1.5mm) (WD=3.3mm at D=0mm and WD=2.5mm at D=1.5mm)
