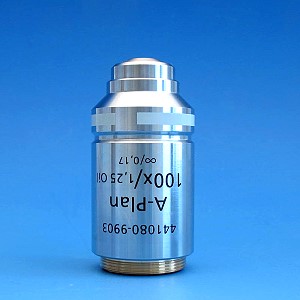

Objective A-Plan 100x/1.25 Oil
  1. Objective A-Plan 100x/1.25 Oil

Objective A-Plan 100x/1.25 Oil

Objective A-Plan 100x/1.25 Oil

Item no.: 441080-9903-000
(no longer available)
Description

Objective A-Plan 100x/1.25 Oil (WD=0.15mm), incl. Immersol 518 N, oiler 20ml

Full Description
Magnification 100x
Numerical Aperture 1.25
Free Working Distance [mm] 0.15
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Oil
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Color Correction achromatic
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection
  • Adapter M 27x0.75 / W 0.8 H "0"
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168
  • Immersion oil Immersol 518 N, oiler 20 ml
    Immersion oil Immersol 518 N, oiler 20 ml
    Item no.: 000000-1111-806
  • Immersion oil Immersol 518 N, bottle 100 ml
    Immersion oil Immersol 518 N, bottle 100 ml
    Item no.: 000000-1111-807
  • Immersion oil Immersol 518 N, bottle 500 ml
    Immersion oil Immersol 518 N, bottle 500 ml
    Item no.: 000000-1111-809
  • Box of lens cleaning paper (300 sheets)
    Box of lens cleaning paper (300 sheets)
    Item no.: 462975-0000-000

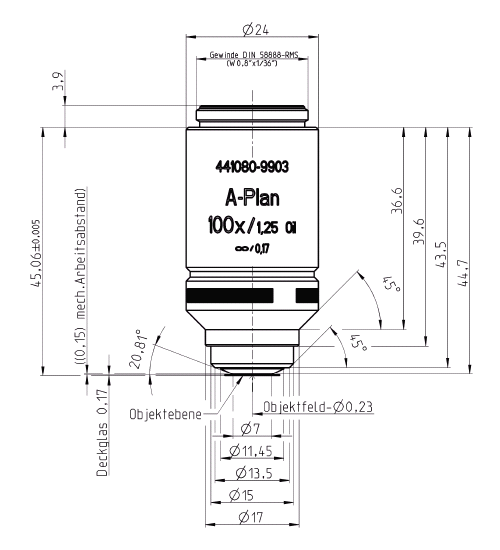

Mechanical Dimensions
Transmittance curve
A-Plan

This class of objectives provides an attractive alternative to Achroplan objectives, both in routine and research applications. A-Plan objectives provide rich contrast and can be used with eyepieces with a field of view up to 23 mm.They allow contrasting methods ranging from brightfield to phase contrast and for excitation wavelength within the visible spectrum they can be used for epifluorescence work.

Objective A-Plan 100x/1.25 Oil (WD=0.15mm), incl. Immersol 518 N, oiler 20ml
