Objective Plan-Apochromat 5x/0.16
Objective Plan-Apochromat 5x/0.16
Item no.: 440620-0000-000(no longer available)

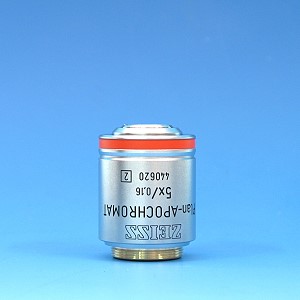

Objective Plan-Apochromat 5x/0.16 (WD=12.1mm)
Full DescriptionThe recommended adapter M27x0.75 / W0.8 H"0" does only fit with objectives, that have a [2] printed behind the order number 440620.
Magnification | 5x |
Numerical Aperture | 0.16 |
Free Working Distance [mm] | 12.1 |
Coverglass Thickness [mm] | 0.17 |
Thread Type | W0.8x1/36" |
Immersion | Without Immersion |
Field of View [mm] | 25 |
Parfocal Length [mm] | 45.06 |
Long Distance | |
Correction Ring | |
Iris | |
Optical System | Infinity Color Corrected System (ICS) |
Color Correction | apochromatic |
Biomedical Applications | |
---|---|
Fluorescence | |
- Multichannel | |
- Ultraviolet Transmission | |
- Infra Red Transmission | |
BrightField | |
DIC [Differential Interference Contrast] | |
High Contrast DIC | |
PlasDIC | |
Phase Contrast | |
VAREL Contrast | |
Hoffman Modulation Contrast | |
Polarization Contrast | |
Materials (Reflected Light) Applications | |
BrightField | |
BrightField/DarkField | |
Reflected Light DIC | |
High Contrast DIC | |
DIC with circular polarized light | |
Total Interference Contrast | |
Polarization Contrast | |
Options | |
Definite Focus.2 | |
Confocal Microscopy | |
- Ultra Violet | |
- VIS (visible light) | |
- NLO-IR / 2 Photon | |
Total Internal Reflection Fluorescence | |
Apotome | |
Microdissection |
-
Adapter M 27x0.75 / W 0.8 H "0"
Item no.: 000000-1095-168Adapter M 27x0.75 / W 0.8 H "0"
Item no.: 000000-1095-168Adapter M 27x0.75 / W 0.8 H "0"

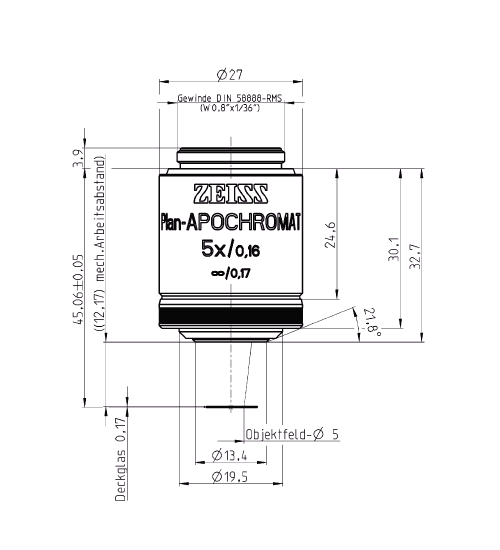

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility
Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.
This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, Plan Apochromat objectives are excellently suited to fluorescence applications.
Objective Plan-Apochromat 5x/0.16 (WD=12.1mm)
