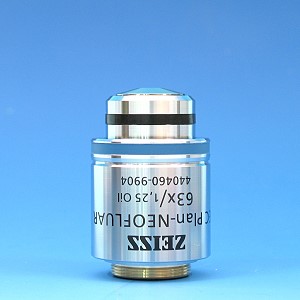

Objective EC Plan-Neofluar 63x/1.25 Oil
Objective EC Plan-Neofluar 63x/1.25 Oil
Item no.: 440460-9904-000(no longer available)
Objective EC Plan-Neofluar 63x/1.25 Oil (WD=0.10mm), incl. Immersol 518 F, oiler 20ml
Full DescriptionMagnification | 63x |
Numerical Aperture | 1.25 |
Free Working Distance [mm] | 0.10 |
Coverglass Thickness [mm] | 0.17 |
Thread Type | W0.8x1/36" |
Immersion | Oil |
Field of View [mm] | 25 |
Parfocal Length [mm] | 45.06 |
Long Distance | |
Correction Ring | |
Iris | |
Optical System | Infinity Color Corrected System (ICS) |
Color Correction | semi-apochromatic |
Biomedical Applications | |
---|---|
Fluorescence | |
- Multichannel | |
- Ultraviolet Transmission | |
- Infra Red Transmission | |
BrightField | |
DIC [Differential Interference Contrast] | |
High Contrast DIC | |
PlasDIC | |
Phase Contrast | |
VAREL Contrast | |
Hoffman Modulation Contrast | |
Polarization Contrast | |
Materials (Reflected Light) Applications | |
BrightField | |
BrightField/DarkField | |
Reflected Light DIC | |
High Contrast DIC | |
DIC with circular polarized light | |
Total Interference Contrast | |
Polarization Contrast | |
Options | |
Definite Focus.2 | |
Confocal Microscopy | |
- Ultra Violet | |
- VIS (visible light) | |
- NLO-IR / 2 Photon | |
Total Internal Reflection Fluorescence | |
Apotome | |
Microdissection |
-
Adapter M 27x0.75 / W 0.8 H "0"
Item no.: 000000-1095-168Adapter M 27x0.75 / W 0.8 H "0"
Item no.: 000000-1095-168Adapter M 27x0.75 / W 0.8 H "0"
-
Objective heater 22.5/34 S1 (D)
Item no.: 411860-9064-000Objective heater 22.5/34 S1 (D)
Item no.: 411860-9064-000Objective heater 22.5/34 S1 (D) - with oil discharge channel - clamping via front dia. 22.5 mm - max. objective dia. 34 mm - temperature range of room temperature up to +45°C
-
Temperable Objective Ring 22.5/32.5 mm S1 (D)
Item no.: 411882-9081-000Temperable Objective Ring 22.5/32.5 mm S1 (D)
Item no.: 411882-9081-000Temperable Objective Ring 22.5/32.5 mm S1 (D) clamping via front dia. 22.5 mm, max. objective dia. 32.5 mm
-
DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III
Item no.: 426946-0000-000DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III
Item no.: 426946-0000-000DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III
-
Immersion suction ring d=22.5 (10 pcs.)
Item no.: 444822-0000-000Immersion suction ring d=22.5 (10 pcs.)
Item no.: 444822-0000-000Immersion suction ring d=22.5 (10 pcs.)
-
Immersion oil Immersol 518 F fluorescence free, oiler 20 ml
Item no.: 444960-0000-000Immersion oil Immersol 518 F fluorescence free, oiler 20 ml
Item no.: 444960-0000-000Immersion oil Immersol 518 F fluorescence free, oiler 20 ml (ISO 8036-1/2, ne=1.518 (23°C), halogen-free)
-
Immersion oil Immersol 518 F fluorescence free, bottle 100 ml
Item no.: 444962-0000-000Immersion oil Immersol 518 F fluorescence free, bottle 100 ml
Item no.: 444962-0000-000Immersion oil Immersol 518 F fluorescence free, bottle 100 ml (ISO 8036-1/2, ne=1.518 (23°C), halogen-free)
-
Immersion oil Immersol 518 F fluorescence free, bottle 500 ml
Item no.: 444964-0000-000Immersion oil Immersol 518 F fluorescence free, bottle 500 ml
Item no.: 444964-0000-000Immersion oil Immersol 518 F fluorescence free, bottle 500 ml (ISO 8036-1/2, ne=1.518 (23°C), halogen-free)
-
Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000Box of lens cleaning paper (300 sheets)

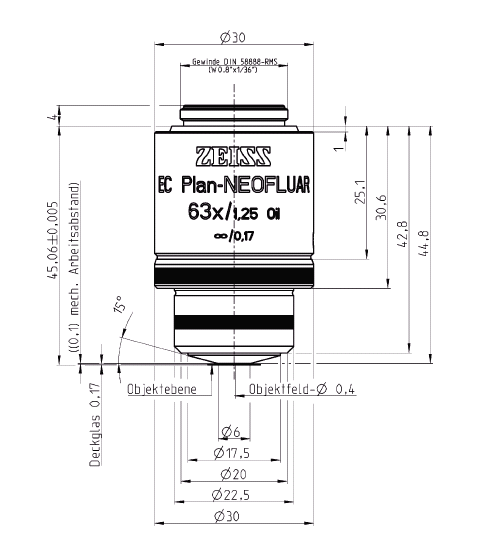

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility
Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.
The Enhanced Contrast Plan-Neofluar universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC Epiplan-Neofluar objectives for reflected-light work, the EC Plan-Neofluar Antiflex objective for reflection contrast, and EC Plan-Neofluar Pol objectives for the requirements of polarizing microscopy.
Objective EC Plan-Neofluar 63x/1.25 Oil (WD=0.10mm), incl. Immersol 518 F, oiler 20ml
