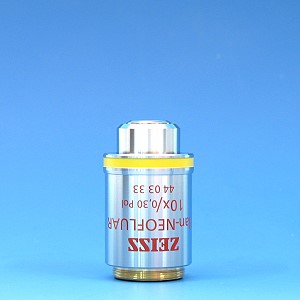

Objective "Plan-Neofluar" 10x/0.30 Pol

Objective "Plan-Neofluar" 10x/0.30 Pol

Item no.: 440333-0000-000
(no longer available)

Objective "Plan-Neofluar" 10x/0.30 Pol (WD=5.6mm)

Full Description

There are only a few number of objectives available. See special offers.

Magnification 10x
Numerical Aperture 0.3
Free Working Distance [mm] 5.5
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Optical System Infinity Color Corrected System (ICS)
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC Yes
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast Yes
Materials (Reflected Light) Applications
BrightField Yes
Reflected Light DIC
High Contrast DIC Yes
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast Yes
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
  • Adapter M 27x0.75 / W 0.8 H "0"
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168
Mechanical Dimensions

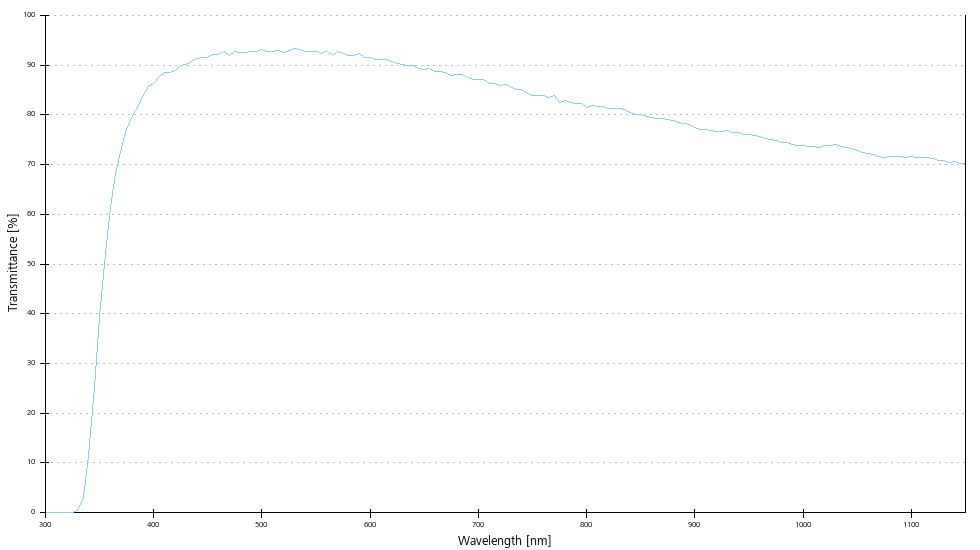

Transmittance curve

Plan-Neofluar objectives feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are Epiplan-Neofluar objectives for reflected-light work, the Plan-Neofluar Antiflex objective for reflection contrast, and Plan-Neofluar Pol objectives for the requirements of polarizing microscopy.

Objective "Plan-Neofluar" 10x/0.30 Pol (WD=5.6mm)
