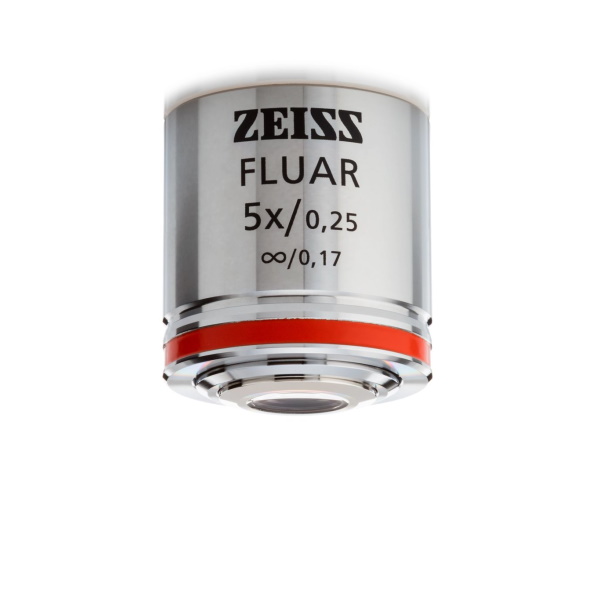

Objective Fluar 5x/0.25

Objective Fluar 5x/0.25

Item no.: 440125-0000-000

Objective Fluar 5x/0.25 (WD=12.5mm)

Full Description

The recommended adapter M27x0.75 / W0.8 H"0" does only fit with objectives, that have a [1] printed behind the order number 440125.

Magnification 5x
Numerical Aperture 0.25
Free Working Distance [mm] 12.5
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Optical System Infinity Color Corrected System (ICS)
Color Correction achromatic
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
  • Adapter M 27x0.75 / W 0.8 H "0"
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168

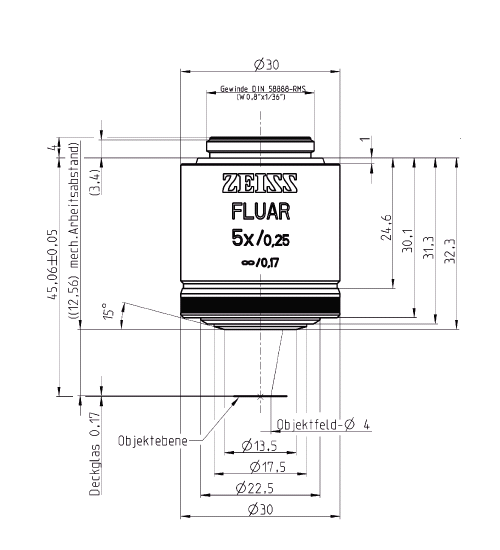

Mechanical Dimensions
Transmittance curve

These objectives have been designed especially for qualitative and quantitative analysis of ion movements and for particularly critical fluorescence methods (e.g. chromosome studies in human and cytogenetics). These objectives are distinguished by high numerical apertures and highest transmission at wavelengths even of 340 nm. Field flattening is sufficient up to a field of 20 mm.

Objective Fluar 5x/0.25 (WD=12.5mm)
