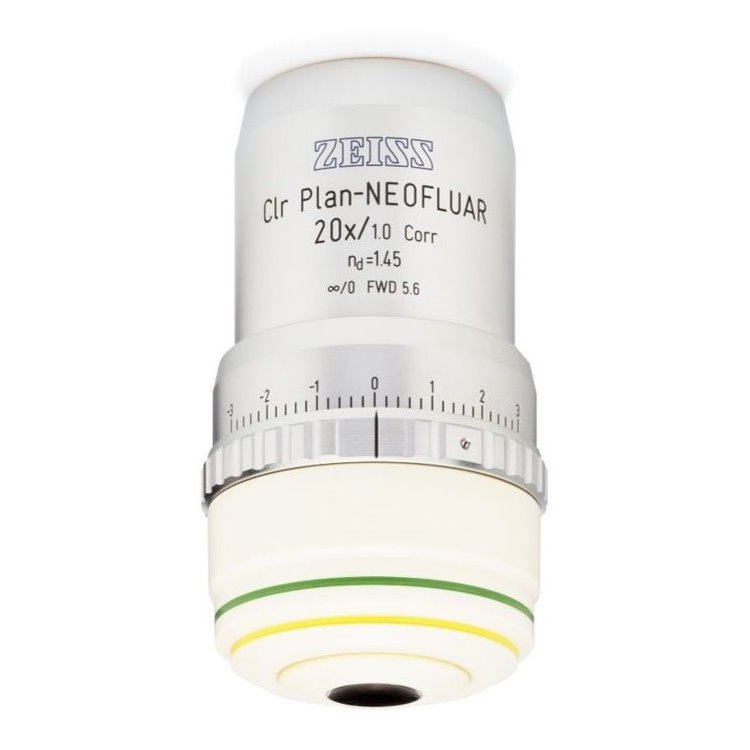

Objective Clr Plan-Neofluar 20x/1.0 Corr nd=1.45 M32 85mm

Objective Clr Plan-Neofluar 20x/1.0 Corr nd=1.45 M32 85mm

Item no.: 421459-9970-000
Description

Objective Clr Plan-Neofluar 20x/1.0 Corr nd=1.45 M32 85mm Parfocal length 85mm, overall length 105mm. (FWD=5.6mm) VIS-NIR Correction collar for compensation of spherical aberrations. Suitable for clearing methods with nd=1.45, in particular FocusClearTM

Full Description
Magnification 20x
Numerical Aperture 1.0
Free Working Distance [mm] 5.6
Coverglass Thickness [mm] 0
Thread Type M32x0.75
Immersion Clearing
Field of View [mm] 20
Parfocal Length [mm] 85
Long Distance Yes
Correction Ring Yes
Iris
Optical System Infinity-Color-Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection
Mechanical Dimensions
Transmittance curve
Clr Plan-Neofluar/Apochromat

"Clr" is for clearing. We have your cleared samples covered across a broad range of refractive indices from 1.35-1.58 in combination with long working distances up to 6.4 mm and great color correction with the Clr Plan-Apochromat and Clr Plan-Neofluar objectives. These objectives cover different clearing media such as Scale A2, Focus Clear, Clarity, Uclear, Ce3D, Cubic Cancer, etc. The high numerical aperture is sure to deliver brilliant images and unlock new details.

Objective Clr Plan-Neofluar 20x/1.0 Corr nd=1.45 M32 85mm Parfocal length 85mm, overall length 105mm. (FWD=5.6mm) VIS-NIR Correction collar for compensation of spherical aberrations. Suitable for clearing methods with nd=1.45, in particular FocusClearTM
