Objective EC "Plan-Neofluar" 1.0x/0.025 M27

Objective EC "Plan-Neofluar" 1.0x/0.025 M27

Item no.: 420300-9900-000

Objective EC Plan-Neofluar 1x/0.025 M27 (FWD=3.0mm)

Full Description

This objective is used as an overview objective for Histology.

It permits viewing of an object field with a diameter of up to 25 mm. This means that a standard 26x76 mm slide can be entirely examined with a single move in the x-direction. Therefore an adequate field illumination is required. The only condenser which illuminate the 25 mm diameter object field (not possible anyway without a condenser) is the achromatic aplanatic universal condenser 0.9 used in the brightfield position and with swung-out front lens.

On account of its low aperture, this transmitted-light objective can be used with cover slips of any thickness or without any cover slip at all.

Magnification 1.0x
Numerical Aperture 0.025
Free Working Distance [mm] 2.9
Coverglass Thickness [mm] 0.17
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 25
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Optical System Infinity Color Corrected System (ICS)
Color Correction
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
Differential Interference Contrast
High Contrast DIC
Polarization-Optical DIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField Yes
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
  • Objective ring ACR for objective sleeve cylindrical short
    Objective ring ACR for objective sleeve cylindrical short
    Item no.: 424508-0000-000
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000
Mechanical Dimensions

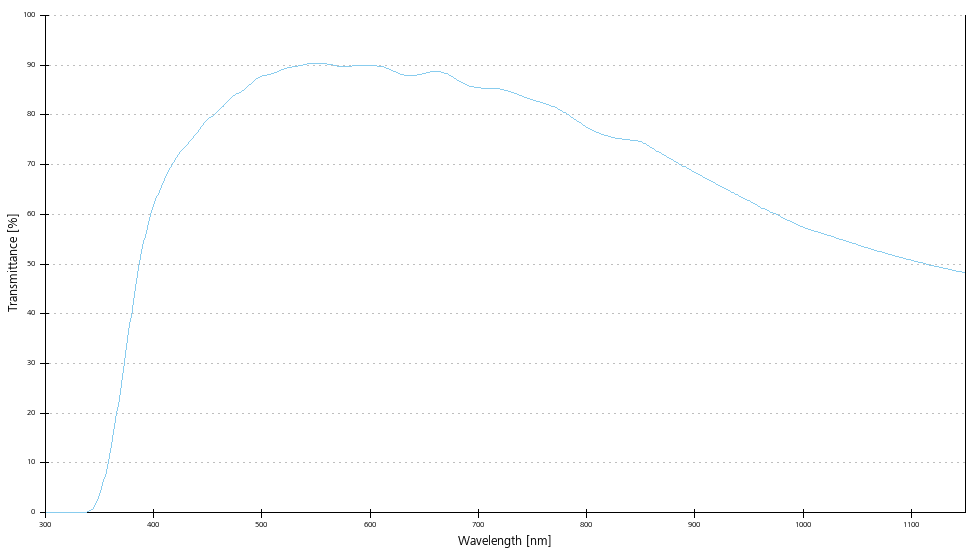

Transmittance curve
EC Plan-Neofluar

The Enhanced Contrast “Plan-Neofluar” universal objectives with consequentliy minimized stray light: with a visible increase in contrast important for all contrast methods: brightfield, darkfield, phase contrast, DIC, fluorescence, Pol. They feature high resolving power and brilliant, rich-contrast, completely flat images for observation and documentation. Their high transmission of wavelengths from the near UV range (>40% starting at 340nm) and the use of glass types of low autofluorescence makes these objectives ideal for epi-fluorescence microscopy. Further special-purpose members of the family are EC “Epiplan-Neofluar” objectives for reflected-light work, the EC “Plan-Neofluar” Antiflex objective for reflection contrast, and EC “Plan-Neofluar” Pol objectives for the requirements of polarizing microscopy.

Objective EC Plan-Neofluar 1x/0.025 M27 (FWD=3.0mm)
