Microscopy Camera Axiocam 820 mono High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: SONY IMX541 CMOS, monochrome, Global Shutter "Backside Illuminated" Number of Pixels: 4512 (H) x 4512 (V) = 20.3 Mega Pixels Pixel Size: 2.74 µm x 2.74 µm Chip Size: 12.4 mm x 12.4 mm, (square field of view), equivalent to 1.1" (17,4 mm diagonal) Spectral Range: With protection glass. 350 nm to 1000 nm Peak QE: 86% @ 520 nm (typ.), "backside illuminated" design Full Well Capacity: Approx. 10,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 4512 x 4512 1x1 basic pixelcount 2256 x 2256 2x2 1504 x 1504 3x3 1128 x 1128 4x4 902 x 902 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor(full field of view) 4512 x 4512 1x1 2256 x 2256 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 4512 x 4512 >20 fps (High Res mode, high CPU load) 2256 x 2256 >30 fps (default: Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on Sensor ROI, hardware and software configuration) H x V (ROI) FrameRate (fps) 4512 x 4512 28 2256 x 2256 75 (2x2 subsampling; full field of view) 2248 x 1504 82 1920 x 1080 110 1024 x 1024 115 512x x 512 207 1920 x 256 346 1920 x 128 447 Read Noise Full Well Capacity Dynamic Range (at gain) 2.3 e (1x) 10,000 e 1:4440 1.8 e (2x) 5,500 e 1:2720 1.6 e (4x) 2,500 e 1:1540 1.5 e (8x) 1,250 e 1: 850 1.3 e (16x) 625 e 1: 470 HDR Mode: 1,6 e 40,000 e 1:25,000 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.1 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure timecontrol Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed, 2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower framerates and without cooling) OpticalInterface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2" x 3.1" x 2.4") / 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W power consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center.

Microscopy Camera Axiocam 820 color High performance microscopy color camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, Sony IMX 541, Color Filter Array, Global Shutter, Backside Illuminated Number of Pixels: 4512 (H) x 4512 (V) = 20.3 Mega Pixels Pixel Size: 2.74 µm x 2.74 µm Chip Size: 12.4 mm x 12.4 mm (square field of view), equivalent to 1.1" (17,4 mmdiagonal) Spectral Range: With IR barrier filter approx. 400 nm to 720 nm Full Well Capacity: Approx. 10,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 4512 x 4512 1x1 basic pixel count 2256 x 2256 2x2 1504 x 1504 3x3 1128 x 1128 4x4 902 x 902 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 4512 x 4512 1x1 2256 x 2256 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1 ms H x V Frame Rate 4512 x 4512 >20 fps (High Res mode, high CPU load) 2256 x 2256 >30 fps (default: Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on Sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 4512 x 4512 28 2256 x 2256 75 (2x2 subsampling; full field of view) 2248 x 1504 82 1920 x 1080 110 1024 x 1024 115 512 x 512 207 1920 x 256 346 1920 x 128 447 Read Noise Full Well Capacity Dynamic Range (at gain) 2.3 e (1x) 10,000 e 1:4440 1.8 e (2x) 5,500 e 1:2720 1.6 e (4x) 2,500 e 1:1540 1.5 e (8x) 1,250 e 1: 850 1.3 e (16x) 625 e 1: 470 HDR Mode: 1,6 e 40,000 e 1:25,000 Software Supported Camera Operation: Exposure time adjustment withcontinuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Adjustable color saturation, White balance adjustment interactive or automatic mode with selectable target white balance color (warmer / colder), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.1 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 ° C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Colorcoded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed, 2 x5 Gbit/s for data and power supply (optional single USB 3.0 at lowerframe rates and without cooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x6.1 cm (4.2" x 3.1" x 2.4") / 620 g Housing: Blue anodized aluminum, withcooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W power consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relativeair humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center.

Microscopy Camera Axiocam 712 mono R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX304 Exmor CMOS, SONY Pregius GlobalShutter Monochrome Number of Pixels: 4096 (H) x 3008 (V) = 12 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 14.1 mm x 10.4 mm, equivalent to 1" (diagonal 17.5 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1 to 5x5 digital) 4096 x 3008 1x1 Basic Resolution 2048 x 1504 2x2 1365 x 1002 3x3 1024 x 752 4x4 819 x 601 5x5 H x V Subsampling Factor 4096 x 3008 1x1 2048 x 1504 2x2 Live FrameRates: (1 ms exposure, default setting) H x V Frame Rate (fps) 4096 x 3008 23 Frame Rates for Time Series Recording: (1 ms exposure, further depending on hardware and software configuration) H x V (ROI) Frame Rate (fps) 4096 x 3008 23 2048 x 1504 46 (2x2 subsampling, full field of view) 1920 x 1080 63 1024 x 1024 66 1920 x 256 241 1920 x 128 431 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25,000 # Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot- meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,0") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.

Microscopy Camera Axiocam 712 color R2 High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter (coated) Sensor Type: SONY IMX304 Exmor CMOS, SONY Pregius Global Shutter Color filter array Number of Pixels: 4096 (H) x 3008 (V) = 12 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 14.1 mm x 10.4 mm, equivalent to 1" (diagonal 17.5 mm) Spectral Range: With IR barrier filter approx. 400 nm to 720 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution (color and monochrome): H x V Binning Factor (1x1 to 5x5 digital) 4096 x 3008 1x1 Basic Resolution 2048 x 1504 2x2 1365 x 1002 3x3 1024 x 752 4x4 819 x 601 5x5 H x V Subsampling Factor 4096 x 3008 1x1 2048 x 1504 2x2 Live Frame Rates: (1 ms exposure, default setting Fast Mode) H x V Frame Rate (fps) 2048 x 1504 30 Frame Rates for Time Series Recording: (1 ms exposure, further depending on hardware and software configuration) H x V (ROI) Frame Rate (fps) 4096 x 3008 23 2048 x 1504 46 (2x2 subsampling, full field of view) 1920 x 1080 63 1024 x 1024 66 1920 x 256 241 1920 x 128 431 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25,000 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Adjustable color saturation, White balance adjustment interactive or automatic mode with selectable target white balance color (warmer / colder), Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperaturesfrom 18 °C to 30 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (furtheraccessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,0") / 580 g Housing: blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free aircirculation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.

Microscopy Camera Axiocam 807 mono (D) High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, monochrome, Global Shutter, Sony IMX420 Number of Pixels: 3216 (H) x 2208 (V) = 7.1 Mega Pixels Pixel Size: 4.5 µm x 4.5 µm Chip Size: 14.5 mm x 9.9 mm, equivalent to 1.1" (17,6 mm diagonal) Spectral Range: With protection glass, 350 nm to 1000 nm Peak QE: 78% @ 520 nm (typ.) Full Well Capacity: Approx. 25,000 e- at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 3216 x 2208 1x1 basic pixel count 1608 x 11042x2 1072 x 991 3x3 884 x 743 4x4 643 x 594 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 3216x2208 1x1 1608 x 1104 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 3216 x 2208 >30 fps (High Res mode) 1602 x 1104>30 fps (Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 3216 x 2208 73 1929 x 1080 145 1608 x 1104 260 (2x2 subsampling; full field of view) 1024 x 1024 151 512 x 512 282 1920 x 256 487 Read Noise Full Well Capacity Dynamic Range (at gain) 5.7 e (1x) 25,000 e 1:4420 4.6 e (2x) 12,500 e 1:2730 3.9 e (4x) 6,250 e 1:1610 3.4 e (8x) 3,125 e 1: 930 2.9 e (16x) 1,500 e 1: 530 Low Noise Mode: 4.0 e 25,000 e 1:25,000 SoftwareSupported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.3 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed,2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower frame rates and without cooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2"x 3.1" x 2.4")/ 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W powerconsumption Environmental Conditions: 5 °C to 35 °C, max.80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center.

Microscopy Camera Axiocam 807 color (D) High performance microscopy color camera incl. driver software 64bit, interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, Color filter array, Global Shutter, Sony IMX420 Number of Pixels: 3216 (H) x 2208 (V) = 7.1 Mega Pixels Pixel Size: 4.5 µm x 4.5 µm Chip Size: 14.5 mm x 9.9 mm, equivalent to 1.1" (17,6 mm diagonal) Spectral Range: With IR barrier filter approx. 400 nm to 720 nm Full Well Capacity: Approx. 25,000 e- at gain 1x(typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 3216 x 2208 1x1 basic pixel count 1608 x 1104 2x2 1072 x 736 3x3 884 x 552 4x4 643 x 441 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 3216 x 2208 1x1 1608 x 1104 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 3216 x 2208 >30 fps (High Res mode) 1602 x 1104 >30 fps (Fast Mode,reducedCPUload) Frame rates for time series recording (1 ms exposure, further depending on Sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 3216 x 2208 73 1929 x 1080 145 1602 x 1104 260 (2x2 subsampling; full field of view) 1024 x 1024 151 512 x 512 282 1920 x 256 487 Read Noise Full Well Capacity Dynamic Range (at gain) 5.7 e (1x) 25,000 e 1:4420 4.6 e (2x) 12,500 e 1:2730 3.9 e (4x) 6,250 e 1:1610 3.4 e (8x) 3,125 e 1:..930 2.9 e (16x) 1,500 e 1: 530 Low Noise Mode: 4.0 e 25,000 e 1:6230 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Adjustable color saturation, White balance adjustment interactive or automatic mode with selectable target white balance color (warmer / colder), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.3 e/p/s@ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure timecontrol Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed, 2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower frame rates and withoutcooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2" x 3.1" x 2.4") / 620 g Housing: Blue anodizedaluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W power consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported OperatingSystems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center.

Microscopy Camera Axiocam 705 mono R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX250 Exmor CMOS, SONY Pregius GlobalShutter Monochrome Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1 to 5x5 digital) 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor 2464 x 2056 1x1 1232 x 1028 2x2 Live Frame Rates: (1 ms, exposure, default setting) H x V Frame Rate (fps) 2464 x 2056 30 Frame Rates for Time Series Recording: (at 1 ms exposure, further depending hardware and software configuration) H x V (ROI) Frame Rate (fps) 2464 x 2056 60 1920 x 1080 115 1232 x 1028 173 (2x2 subsampling, full field of view) 1024 x 1024 121 512 x 512 235 1920 x 256 436 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25.000 # Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot-meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,4") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photothread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.

Microscopy Camera Axiocam 705 pol R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX250 MZ Exmor CMOS, SONY Pregius Global Shutter Monochrome with 2x2 pixel specific polarization filter mask (90°, 45°, 135°, 0°) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1) 2464 x 2056 1x1 Basic Resolution 816 x 684 3x3 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) Live Frame Rates: (1 ms exposure, default setting, simplified color coding) H x V Frame Rate (fps) 2464 x 2056 25 (1ms exposure time, ROI 1920 x 1080, standard color coding) H x V Frame Rate (fps) 1920 x 1080 5,5 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot- meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: <0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation withUSB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3"x 3.2" x 2,0") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 und USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.

Microscopy Camera Axiocam 705 color R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter (coated) Sensor Type: SONY IMX250 Exmor CMOS, SONY Pregius Global Shutter Color filter array Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With IR barrier filter approx. 400 nm to 720 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution (color and monochrome): H x V Binning Factor (1x1 to 5x5 digital) 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor 2464 x 2056 1x1 1232 x 1028 2x2 Live Frame Rate: (1 ms exposure, default setting Fast Mode) H x V Frame Rate (fps) 1232 x 1028 30 Frame Ratesfor TimeSeries Recording: (1 ms exposure, further depending on hardware and software configuration) H x V (ROI) Frame Rate (fps) 2464 x 2056 60 1920 x 1080 115 1232 x 1028 173 (2x2 subsampling, full field of view) 1024 x 1024 121 512 x 512 235 1920 x 256 436 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25,000 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot-meter), adjustable color saturation, White balance adjustment interactive or automatic mode with selectable target white balance color (warmer / colder) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 ° C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,0") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.

Axiocam 305 color Package with Labscope Module Fast Panorama (D) consisting of the camera Axiocam 305 color and the Labscope Module Fast Panorama. Camera specification: Microscopy camera incl. driver software 64bit, USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter Hoya C5000 (coated) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel color Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS Pixel size: 3.45 #m x 3.45 #m Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral range: With IR barrier filter app. 400 nm to 720 nm Full Well Capacity: Approx. 10,500 e Selectable Resolution: H x V Binning Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608x 514 4x4 480 x 410 5x5 H x V Subsampling Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 Subsampling) Frame rates for time series recording (depending on computer hardware and software configuration) H x V(ROI) Frame Rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 8 and 12 Bit / Pixel Dynamic Range: Typical > 4800 : 1 (>73 dB) at typ. 2.2 e readout noise Dark current: < 1.0 e/p/s @ 25°C Integration Time: 0.1 ms to to 4 s Cooling: Temperature stable @ 25°C for ambient temperatures between 18°C and 30°C Status-LED for Camera: color coded operation status, dimmable, Interface (camera): USB 3.0 interface Optional operation with USB 2.0connection at reduced frame rate Optical Interface: C-Mount Thread depth for objectives: max. 5 mm Size / Weight: approx. App. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Max. 4W, power supply provided by USB 3.0 bus for camera electronics Environmental conditions: 5° … +35° Celsius, max 80% relative air humidity, not condensing, free air circulationrequired Supported Operating Systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64 Supported Application Software: ZEN 2.3 (blue edition) or later, ZEN core v2.5 or later Labscope v3.3 or later (Windows) The required software is available via the ZEISS Download Center.

Microscopy Camera Axiocam 503 color (D) High Performance microscopy camera incl. driver software 64bit, USB 3.0 PCIe x1 interface, dual USB 3.0/USB 2.0 cable 3 m and IR barrier filter BG 40 (coated) Number of Pixels: 1936 (H) x 1460 (V) = 2.8 Mega Pixels Pixel size: 4.54 µm x 4.54 µm Chip size: 8.8 mm x 6.6 mm, equivalent to 2/3" (11 mm diagonal) Spectral range: With IR barrier filter app. 400 nm to 720 nm Max. Full Well Capacity: Approx. 15.000 e Selectable Resolution: H x V Binning Factor 1936 x 1460 1x1 Basic Resolution 968 x 728 2x2 Monochrome 640 x 484 3x3 Color/Monochrome 480 x 364 4x4 Monochrom 384 x 292 5x5 Color/Monochrom Selectable color interpolation quality levels: "High Speed Color" for fastest processing speed or "High Quality Color" for best interpolation results High Quality Black and White conversion mode. Live frame rates (depending on hardware and software configuration): Exp. Time 10ms, color enhancement off, 39 Mhz pixel clock, Quadport Readout H x V Binning Factor Frame Rate, 1936 x 1460 1 38 640 x 484 3 76 384 x 292 5 93 Frame rates for time series recording Continuous Mode with 39 Mhz pixel clock and QuadPort Readout (depending on computer hardware and software configuration) H x V Binning Factor Frame Rate 1936 x 1460 1 38 968 x 728 2 61 640 x 484 3 76 480 x 364 4 87 384 x 292 5 93 Timelapse recording with "Burst Mode"-function Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 14 Bit / 39 MHz or 13 MHz pixel clock Dynamic Range: Typical >2500: 1 (>68 dB) at typ. < 6.5 e readout noise Dark current: ca. 0.06 e/p/s Integration Time: 1 ms to 60 s Cooling: One stage Peltier cooling, regulated to 18°C sensor temperature, Additional digital dark current compensation, Calibrated color space optimization, Eight pre-loadable sets of imaging parameters for speed optimized multi modal image acquisition, acquisition Time Stamp with image data, Status-LED for Camera: color coded operation status, dimmable, Status-LED for Trigger: color coded trigger status, dimmable, I/O Control signals: galvanic isolated I/O signals for exposure time, readout time, trigger ready, (i.e. for controlling external mechanical shutters), one trigger input for exposure control, 5V auxiliary voltage, GND Interface: USB 3.0, 240 MBytes/s, 3 m double-USB cable with USB 3.0/USB 2.0, Optional operation with USB 2.0 connection at reduced frame rate, Optional operation without cooling for use at short exposure times with reduced power consumption, Optical Interface: C-Mount, Teflon coated thread Thread depth for objectives: max. 5 mm Max. file size per image: app. 17 MB at 1936 x 1460 pixels at 3 x 14 bit/pixel Size / Weight: app. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 500 g Housing: blue anodized aluminum, with cooling fins, 1/4" photo thread for tripod mount Registration: CE, Power Supply: power supply provided by USB 3.0 bus for camera electronics and USB 2.0 for Peltier-cooling, Power consumption: 7W (5V, 1.4A) Environmental conditions: 5° ... +35° Celsius, max 80% relative air humidity, not condensing, free air circulation required Operating Systems: Windows 10 Enterprise embedded x64 and older Windows x64 systems

Microscopy Camera Axiocam 305 mono (D) Microscopy camera incl. driver software 64bit, USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and BK7 protection glass (coated) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel color Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS Pixel size: 3.45 µm x 3.45 µm Chip size: 8.5 mm x 7.1 mm, equivalent to diagonal 11.1 mm (2/3" form factor) Spectral range: app. 350 nm to 1000 nm Full Well Capacity: Approx. 10,500 e Selectable Resolution: H x V Binning Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 H x V Subsampling Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 Subsampling) Frame rates for time series recording (depending on computer hardware and software configuration) H x V (ROI) Frame Rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 8 and 12 Bit / Pixel Dynamic Range: Typical > 4800 : 1 (>73 dB) at typ. 2.2 e readout noise Dark current: < 1.0 e/p/s @ 25°C Integration Time: 0.1 ms to 4 s Cooling: Temperature stable @ 25°C for ambient temperatures between 18°C and 30°C Status-LED for Camera: color coded operation status, dimmable Interface (camera): USB 3.0 interface Optional operation with USB 2.0 connection at reduced frame rate Optical Interface: C-Mount Thread depth for objectives: max. 5 mm Size / Weight: approx. App. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Max. 4W, power supply provided by USB 3.0 bus for camera electronics Environmental conditions: 5° C +35° Celsius, max 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64 Supported Application Software: ZEN 2.6 (blue edition) or higher, ZEN core v2.7 or higher Labscope v3.3 (Windows) or higher The required application software is available via the ZEISS Download Center.

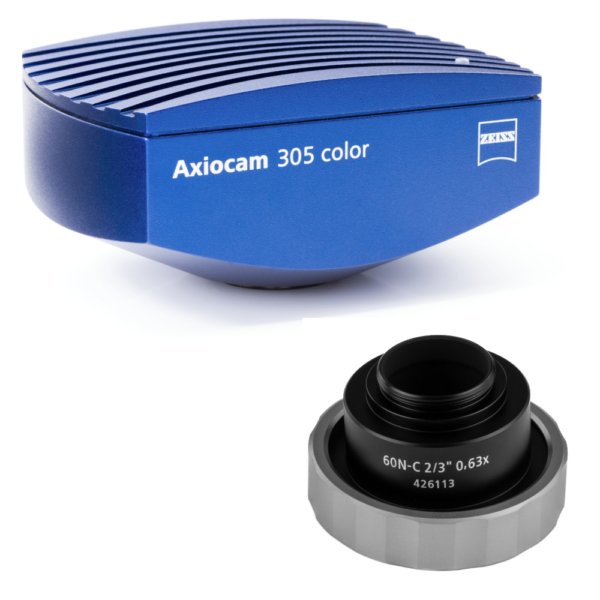

Microscopy camera Axiocam 305 color module incl. adapter 0.63x Consists of: - Microscopy camera Axiocam 305 color - Camera adapter 60N-C 2/3" 0.63x Technical specification Axiocam 305 color: Microscopy camera incl. Driver software 64bit, USB3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter Hoya C5000 (coated) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel color Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS Pixel size: 3.45 #m x 3.45 #m Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral range: With IR barrier filter app. 400 nm to 720 nm Full Well Capacity: Approx. 10,500 e Selectable Resolution: H x V Binning Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 H x V Subsampling Factor 2464 x 2056 1x1 BasicResolution 1232 x 1028 2x2 Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 Subsampling) Frame rates for time series recording (depending on computer hardware and software configuration) H x V (ROI) Frame Rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 8 and 12 Bit / Pixel Dynamic Range: Typical > 4800 : 1 (>73 dB) at typ. 2.2 e readout noise Dark current: < 1.0 e/p/s @ 25°C Integration Time: 0.1 ms to 4 s Cooling: Temperature stable @ 25°C for ambient temperatures between 18°C and 30°C Status-LED for Camera: color coded operation status, dimmable Interface (camera): USB 3.0 interface Optional operation with USB 2.0 connection at reduced frame rate Optical Interface: C-Mount Thread depth for objectives: max.5 mm Size / Weight: approx. App. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Max. 4W, power supply provided by USB 3.0 bus for camera electronics Environmental conditions: 5° … +35° Celsius, max 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64 Supported Application Software: ZEN 2.3 (blue edition) or higher, ZEN core v2.5 or higher Labscope v3.3 (Windows) or higher The required application software is available via the ZEISS Download Center.

Microscopy Camera Axiocam 305 color (D) Microscopy camera incl. Driver software 64bit, USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter Hoya C5000 (coated) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel color Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS Pixel size: 3.45 #m x 3.45 #m Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral range: With IR barrier filter app. 400 nm to 720 nm Full Well Capacity: Approx. 10,500 e Selectable Resolution: H x V Binning Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 H x V Subsampling Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 Subsampling) Frame rates for time series recording (depending on computer hardware and software configuration) H x V (ROI) Frame Rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 8 and 12 Bit / Pixel Dynamic Range: Typical > 4800 : 1 (>73 dB) at typ. 2.2 e readout noise Dark current: < 1.0 e/p/s @ 25°C Integration Time: 0.1 ms to to 4 s Cooling: Temperature stable @ 25°C for ambient temperatures between 18°C and 30°C Status-LED for Camera: color coded operation status, dimmable, Interface (camera): USB 3.0 interface Optional operation with USB 2.0 connection at reduced frame rate Optical Interface: C-Mount Thread depth for objectives: max. 5 mm Size / Weight: approx. App. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Max. 4W, power supply provided by USB 3.0 bus for camera electronics Environmental conditions: 5° … +35° Celsius, max 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64 Supported Application Software: ZEN 2.3 (blue edition) or higher, ZEN core v2.5 or higher Labscope v3.3 (Windows) or higher The required application software is available via the ZEISS Download Center.

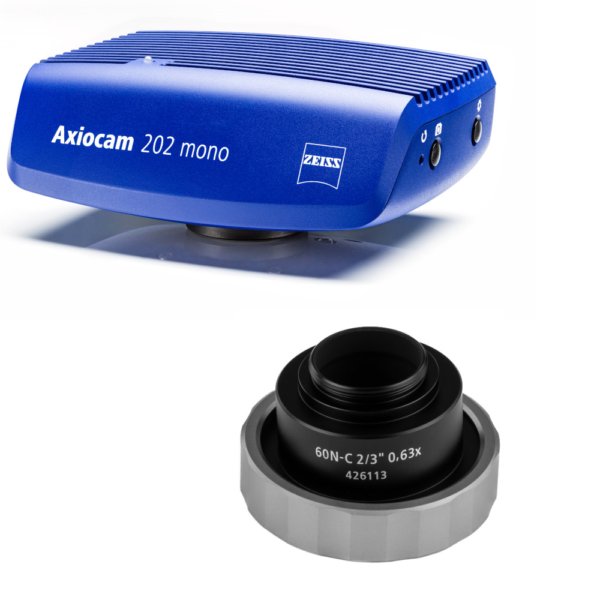

Microscopy camera Axiocam 202 mono module incl. adapter 0.63x Consists of: - Microscopy camera Axiocam 202 mono - Camera adapter 60N-C 2/3" 0.63x Technical specification Axiocam 202 mono: Most versatile monochrome camera for education, documentation and routine applications with standalone capability, USB 3.0 and Ethernet connectivity with 64bit driver software for: ZEN (blue and core), Labscope and TWAIN plugin. Camera package contains the following accessories: - USB 3.0 hub Type-C, - USB3.0 flash drive, Type-C and Type-A - USB 3.0 cable Type-C to Type-A - Power <(>&<)> signal cable camera to microscope stand compatible with Axiolab 5 and Axioscope5/7/Vario - Power adapter with country-specific plug Sensor: Sony CMOS image sensorMonochrome, Global Shutter Number of Pixel: 1920 (H) x 1080 (V) = 2MP, Full HD (1080p) Selectable Resolution: 1920 x 1080 = Full HD (1080p) Pixel size: 5.86 µm x 5.86 µm Effective Area: 11.25 mm x 6.33 mm, equivalent to 1/1.23" (13 mm diagonal) Spectral range: approx. 350 nm – 850 nm, protection glass (coated) Control buttons on camera for stand-alone use: 1x Image capture 1x OSD (On Screen Display menu) 1x Camera factory reset Status-LED for camera: color coded operation status Stand-alone: Image storage format: TIFF or JPG Video stream format: mp4 Live frame rate via HDMI: 30 fps @ 1080p Live frame rate through software via Ethernet or USB 3.0 (depending on hardware and software configuration), Exp. Time 1 ms: H x V Frame rate 1920 x 1080 up to 30 fps (Labscope, ZEN) Digitization: 12-bit or 8-bit A/D conversion Integration time: 0.30 ms up to 2 s Gain: 1x - 16x Interfaces for Communication and for Power: HDMI for monitor USB 3.0 Type C for USB hub, flash drive, Wi-Fi adapter or, PC connection Ethernet (RJ45) for LAN connection Micro-D for power and communication with dedicated stands Optical interface: C-mount Max. file size per image: 12 bit .tiff: 4 MB (one channel, not content dependent) 8 bit .tiff: 2 MB (one channel, not content dependent) 8 bit .jpg: approx. 0.1 MB – 1.3 MB (content dependent) Size/Weight: approx. 135 x 97 x 54mm / 590 g Housing: Blue painted aluminum and cooling fins on the top plate Registration: CE, RoHS, CSA Power supply: via Micro-D interface Power consumption: 9 W (24 V DC, 0.375 A) Environmental conditions: +10°C to +40°C, max. 75% relative air humidity at 35°C, no condensation, free aircirculation required, indoor use Supported Operating Systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64, iOS 13 or higher Supported Application Software: ZEN 3.0 (blue edition) or higher, ZEN core v2.7 or higher Labscope v2.9.1 (Windows) oder später, v3.0 (iOS) oder später TWAIN Plugin (Software interface to control camera by 3rd party application software) The camera is network-enabled and can be used with the ZEISS Labscope software. The iOS App is available asa free download from the Apple App Store. The Windows version can be downloaded for free from the ZEISS website. Unless otherwise stated by the distributor, iPad and WLAN router are not supplied by ZEISS.

Microscopy Camera Axiocam 203 mono Most versatile monochrome camera for education, documentation and routine applications with standalone capability, USB 3.0 and Ethernet connectivity with 64bit driver software for: ZEN (blue and core), Labscope and TWAIN plugin. Camera package contains the following accessories: - USB 3.0 flash drive, Type-C and Type-A - USB 3.0 cable Type-C to Type-A - Power <(>&<)> signal cable camera to microscope stand compatible with Axiolab 5 and Axioscope 5/7 - Power adapter with country-specific plug Sensor: Sony CMOS image sensor Monochrome, Rolling Shutter Number of Pixel: 1984 (H) x 1522 (V) = 3.0 MP, Full Sensor Selectable Resolution: 1984 (H) x 1522 (V) = 3.0 MP, Full Sensor 1920 (H) x 1080 (V) = 2.1 MP, Full HD (1080p) Pixel size: 3.7 µm x 3.7 µm Effective Sensor Area: 1984 x 1522: 7.3 mm x 5.6 mm, equivalent to 1/1.7" (9.2 mm diagonal) 1920 x 1080: 7.2 mm x 4.0 mm, equivalent to 1/2.1" (8.2 mm diagonal) Spectral range: approx. 350 nm – 850 nm, protection glass (coated) Control buttons on camera for stand-alone use: 1x Power on/off switch 1x Camera factory reset Status-LED for camera: color coded operation status Stand-alone: Image storage format: TIFF or JPG Video stream format: mp4 Live frame rate via HDMI: 30 fps @ 1080p Live frame rate through software via Ethernet or USB 3.0 (depending on hardware and software configuration), Exp. Time 1 ms: H x V Frame rate 1984 x 1522 up to 30 fps (ZEN (blue) / ZEN core) 1920 x 1080 up to 30 fps (Labscope, ZEN (blue) / ZEN core) Digitization: 12-bit or 8-bit A/D conversion Integration time: 0.1 ms up to 2 s Gain: 0x - 27x Interfaces for Communication and for Power: 1x HDMI for monitor 1x USB 3.0 Type C for USB flash drive, Wi-Fi adapter or PC connection 2x USB 2.0 Type A for mouse and keyboard 1x RJ45 (Ethernet) for LAN connection 1x M8 for power and communication with dedicatedstands Optical interface: C-mount Size/Weight: approx. 125 x 92 x 78mm / 700 g Housing: Blue painted aluminum and cooling fins Registration: CE, CSA, UKCA Power supply: via M8 interface Power consumption: max. 36 W (24 V DC,1.5 A) Environmental conditions: +5°C to +35°C, max. 75% relative air humidity at 35°C, no condensation, free air circulation required, CAT II, pollution degree 2, altitude <(><<)>2000m, indoor use SupportedOperating systems: for ZEN: Windows 10 and 11 x64 and higher for Labscope: Windows 10 and 11 x64 and higher, iOS v15 and higher, Android 12 and higher Supported Application Software: ZEN 3.11 (blue edition) and higher ZEN core 3.11 and higher Labscope v4.4 oder higher (Windows, iOS and Android) TWAIN plugin: Software interface to control camera by 3rd party application software The camera is network-enabled and can be used with the ZEISS iOS App, Android APP and ZEISS Labscope software. The Apps are available as a free download from the Apple® App Store, Google Play Store or ZEISS Portal. Unless otherwise stated by the distributor, iPad® and WLAN router are not supplied by ZEISS. Apple®, Apple iPad® are registered trademarks of AppleInc.

Microscopy Camera Axiocam 202 mono Most versatile monochrome camera for education, documentation and routine applications with standalone capability, USB 3.0 and Ethernet connectivity with 64bit driver software for: ZEN (blue and core), Labscope and TWAIN plugin. Camera package contains the following accessories: - USB 3.0 hub Type-C - USB 3.0 flash drive, Type-C and Type-A - USB 3.0 cable Type-C to Type-A - Power <(>&<)> signal cable camera to microscope stand compatible with Axiolab 5 and Axioscope5/7/Vario and, - Power adapter with country-specific plug Sensor: Sony CMOS image sensor Monochrome, Global Shutter Number of Pixel: 1920 (H) x 1080 (V) = 2MP, Full HD (1080p) Selectable Resolution: 1920 x 1080 = Full HD (1080p) Pixel size: 5.86 µm x 5.86 µm Effective Area: 11.25 mm x 6.33 mm, equivalent to 1/1.23" (13 mm diagonal) Spectral range: approx. 350 nm – 850 nm, protection glass (coated) Control buttons on camera for stand-alone use: 1x Image capture 1x OSD (On Screen Display menu) 1x Camera factory reset Status-LED for camera: color coded operation status Stand-alone: Image storage format: TIFF or JPG Video stream format: mp4 Live frame rate via HDMI: 30 fps @ 1080p Live frame rate through software via Ethernet or USB 3.0 (depending on hardware and software configuration), Exp. Time 1 ms: H x V Frame rate 1920 x 1080 up to 30 fps (Labscope, ZEN) Digitization: 12-bit or 8-bit A/D conversion Integration time: 0.30 ms up to 2 s Gain: 1x - 16x Interfaces for Communication and for Power: HDMI for monitor USB 3.0 Type C for USB hub, flash drive, Wi-Fi adapter or, PC connection Ethernet (RJ45) for LAN connection Micro-D for power and communication with dedicated stands Optical interface:C-mount Max. file size per image: 12 bit .tiff: 4 MB (one channel, not content dependent) 8 bit .tiff: 2 MB (one channel, not content dependent) 8 bit .jpg: approx. 0.1 MB – 1.3 MB (content dependent) Size/Weight: approx. 135 x 97 x 54mm / 590 g Housing: blue painted aluminum and cooling fins on the top plate Registration: CE, RoHS, CSA Power supply: via Micro-D interface Power consumption: 9 W (24 V DC, 0.375 A) Environmental conditions: +10°C to +40°C, max. 75% relative air humidity at 35°C, no condensation, free air circulation required, indoor use Supported Operating Systems: for ZEN: Windows 10 x64 and higher for Labscope: Windows 10 x64 and higher, iOS 13 and higher, Android 9.0 and higher Supported Application Software: ZEN 3.0 (blue edition) or higher ZEN core v2.7 or higher Labscope v2.9.1 and higher (Windows), v3.0 and higher (iOS) , v4.0 and higher (Android) TWAIN Plugin (Software interface to control camera by 3rd party application software) The camera is network-enabled and can be used with the ZEISS iOS App, Android APP and ZEISS Labscope software. The Apps are available as a free download from the Apple® App Store, Google Play Store or ZEISS Portal. Unless otherwise stated by the distributor, iPad® and WLAN router are Not supplied by ZEISS. Apple®, Apple iPad® are registered trademarks of Apple Inc.

Microscopy Camera Axiocam 212 color Most versatile color camera for education, documentation and routine applications with standalone capability, USB 3.0 and Ethernet connectivity with 64bit driver software for: ZEN (blue and core), Labscope and TWAIN plugin. Camera package contains the following accessories: - USB 3.0 flash drive, Type-C and Type-A - USB 3.0 cable Type-C to Type-A - Power <(>&<)> signal cable camera to microscope stand compatible with Axiolab 5 and Axioscope 5/7/Vario - Power adapter with country-specific plug Sensor: Sony CMOS image sensor Color, Rolling Shutter Number of Pixel (max): 4032 (H) x 3044 (V) = 12.3 MP, Full Sensor Selectable Resolution: 4032 (H) x 3044 (V) = 12.3 MP, Full Sensor 3840 (H) x 2160 (V) = 8.1 MP, Ultra HD (4K) 1920 (H) x 1080 (V) = 2.1 MP, Full HD (1080p) Pixel size: 1.85 µm x 1.85 µm (resolution 4032 x 3044 and 3840 x 2160) 3.70 µm x 3.70 µm (binned, resolution 1920 x 1080) Effective Sensor Area: 4032 x 3044: 7.4 mm x 5.7 mm, equivalent to 1/1.7" (9.3 mm diagonal) 3840 x 2160: 7.2 mm x 4.0 mm, equivalent to 1/2.1" (8.2 mm diagonal) 1920 x 1080: 7.2 mm x 4.0 mm, equivalent to 1/2.1" (8.2 mm diagonal) Spectral range: approx. 400 nm – 700 nm, IR filter; RGBBayer color mask Control buttons on camera: 1x Power on/off switch 1x Camera factory reset Status-LED for camera: color coded operation status Stand-alone: Image storage format: TIFF or JPG Video stream format: mp4 Live frame rate viaHDMI: 30 fps @ 4K/1080p Live frame rate through software via Ethernet or USB 3.0 (depending on hardware and software configuration), Exp. Time 1 ms: H x V Frame rate 4032 x 3044 up to 11 fps (ZEN (blue) / ZEN core) 3840 x 2160 up to 17 fps (ZEN (blue) / ZEN core) 1920 x 1080 up to 30 fps (ZEN (blue) / ZEN core) 1920 x 1080 up to 30 fps (Labscope) Digitization: 24-bit (3 x 8-bit RGB) A/D conversion Integration time: 0.1msup to 1 s Gain: 0x - 27x Interfaces for Communication and for Power: 1x HDMI for monitor 1x USB 3.0 Type C for USB flash drive, Wi-Fi adapter or PC connection 2x USB 2.0 Type A for mouse and keyboard 1x RJ45 (Ethernet) for LAN connection 1x M8 for power and communication with dedicated stands Optical interface: C-mount Size/Weight: approx. 125 x 92 x 78mm / 700 g Housing: Blue painted aluminum and cooling fins Registration: CE, CSA, UKCA Power supply: via M8interface Power consumption: max. 36 W (24 V DC,1.5 A) Environmental conditions: +5°C to +35°C, max. 75% relative air humidity at 35°C, no condensation, free air circulation required, CAT II, pollution degree 2, altitude <(><<)>2000m, indoor use Supported Operating systems: for ZEN: Windows 10 and 11 x64 and higher for Labscope: Windows 10 and 11 x64 and higher, iOS v15 and higher, Android 12 and higher Supported Application Software: ZEN 3.11 (blueedition) and higher ZEN core 3.11 and higher Labscope v4.4 and higher (Windows, iOS and Android) TWAIN plugin: Software interface to control camera by 3rd party application software The camera is network-enabled and can be used with the ZEISSiOS App, Android APP and ZEISS Labscope software. The Apps are available as a free download from the Apple® App Store, Google Play Store or ZEISS Portal. Unless otherwise stated by the distributor, iPad® and WLAN router are not supplied by ZEISS. Apple®, Apple iPad® are registered trademarks of Apple Inc.

Microscopy Camera Axiocam 105 color R2 with driver software 64bit, USB 3.0 connection cable 3.0 m Sensor: CMOS color sensor Basic resolution: 2592 (H) x 1944 (V) = 5.0 Megapixel Pixel size: 2.2 µm x 2.2 µm Chip size: 5.70 mm x 4.28 mm, equivalent to 1/2.24" (diagonal 7.13 mm) Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2592 x 1944 30fps Frame rates for time series recording (depending on hardware and software configuration): H x V Frame Rate@1ms 2592 x 1944 17fps Readout of Sensor Sub- Regions ("ROI"): Adjustable (min. ROI: H x V: 864 x 1) Digitization: 3 x 8 Bit / Pixel Integration Time: 30 µs up to 1 s Interface (camera): USB 3.0 Micro-B Interface (PC / board): USB 3.0 Standard A Spectral range: Approx. 400 nm - 650 nm, IR filter Read-out mode: Progressive Optical Interface: C-Mount (adapter 0.5x recommended) Size / Weight: approx. 2.9 cm x 2.9 cm x 1.7 cm / approx. 60 g Housing: Zinc Alloy, Zinc Z410 Registration: CE, FCC Class B, RoHS Power Supply: via USB 3.0 interface, max. 0.5 - 1 W (5 V, max. 400mA) Environmental conditions: 0° ... +50° Celsius, max. 80% relative air humidity, no condensation, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.5 (Hotfix 5, blue edition) or higher, ZEN core v3.4 (Hotfix 4) or higher The required application software is available via the ZEISS Download Center.

Trigger Cable Set Axiocam 5xx/7xx/8xx (D) for direct shutter synchronization using trigger board with signal distribution box, Colibri or HXP 120 V

ZEISS Care - Axiocam

AxioCam FireWire HS/MRc5/HR/MR-Rev.3 Trigger Cable Set TL/RL (D) for direct shutter synchronization using Ludl, Uniblitz, VIS-LED, HXP Trigger Cable or microscope internal control

Trigger cable Axiocam 503/506/512/702, LEMO (D) for connection with Celldiscoverer 7

AxioCam Adapter for macro stand (D) incl. screw for camera fixation necessary for all macro stands with large camera base plate
