Filter Assistant

Dye

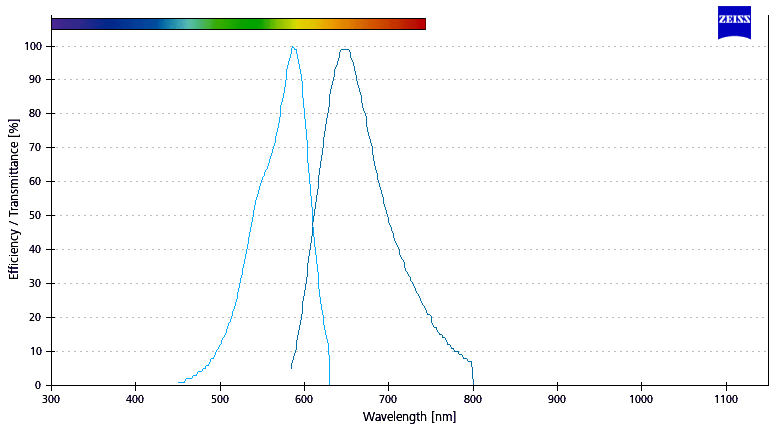

 Dye mPlum
 Excitation
 Emission
Selection:
Please note that the given values are typical only and not guaranteed.
54 possible ZEISS filter sets found
Filter Set 31  (000000-1031-350)
Excitation Beamsplitter Emission
BP 565/30
FT 585
BP 620/60
Filter Set 42  (000000-1092-429)
Excitation Beamsplitter Emission
BP 357/50
BP 403/11
BP 493/17
BP 573/20
DBP 497/17 + 570/25
TBP 400/13 + 495/17 + 570/25
TFT 417 + 510 + 585
TBP 460 + 530 + 625
Filter Set 45  (000000-1114-462)
Excitation Beamsplitter Emission
BP 560/40
FT 585
BP 630/75
Filter Set 00  (488000-0000-000)
Excitation Beamsplitter Emission
BP 530-585
FT 600
LP 615
Filter Set 24  (488024-0000-000)
Excitation Beamsplitter Emission
DBP 485/20 + 578/14
DFT 500 + 600
BP 515-540 + LP 610
Filter Set 25  (488025-0000-000)
Excitation Beamsplitter Emission
TBP 400 + 495 + 570
TFT 410 + 505 + 585
TBP 460 + 530 + 625
Filter Set 26  (488026-9901-000)
Excitation Beamsplitter Emission
BP 575-625
FT 645
BP 660-710
Filter Set 82  (488082-0000-000)
Excitation Beamsplitter Emission
TBP 407 + 510 + 565 (HE)
BP 565/30
TFT 431 + 525 + 580 (HE)
BP 620/60
Filter Set 95  (488095-9100-000)
Excitation Beamsplitter Emission
DBP 475/20+585/25
DBS 495+600
DBP 518-25+625-30
Filter Set 25 HE  (489025-0000-000)
Excitation Beamsplitter Emission
TBP 405 + 495 + 575 (HE)
TFT 435 + 510 + 600 (HE)
TBP 460 + 530 + 625 (HE)
Filter Set 54 HE  (489054-0000-000)
Excitation Beamsplitter Emission
BP 427/14 (HE)
BP 504/17 (HE)
BP 589/21 (HE)
TFT 440 + 520 + 607 (HE)
TBP 464 + 542 + 639 (HE)
Filter Set 56 HE  (489056-0000-000)
Excitation Beamsplitter Emission
BP 470/27 (HE)
BP 556/25 (HE)
DBS 490+575
DBP 512/30 + 630/98 (HE)
Filter Set 56 SBP  (489056-9010-000)
Excitation Beamsplitter Emission
BP 555/30
BP 469/38
DBS 490+575
BP 514/30 (HE)
BP 630/98 (HE)
Filter Set 56 HE LED  (489056-9110-000)
Excitation Beamsplitter Emission
BP 469/38
BP 555/30
DBS 490+575
DBP 512/30 + 630/98 (HE)
Filter Set 56 LED SBP  (489056-9120-000)
Excitation Beamsplitter Emission
BP 469/38
BP 555/30
DBS 490+575
BP 514/30 (HE)
BP 630/98 (HE)
Filter Set 56 MBP  (489056-9130-000)
Excitation Beamsplitter Emission
BP 555/30
BP 469/38
DBS 490+575
DBP 513/28 + 630/98
Filter Set 60 HE (Colibri)  (489060-9901-000)
Excitation Beamsplitter Emission
BP 445/25 (HE)
BP 510/15 (HE)
BP 588/27 (HE)
TFT 460 + 520 + 605 (HE)
TBP 480 + 546 + LP615 (HE)
Filter Set 61 HE (Colibri)  (489061-9901-000)
Excitation Beamsplitter Emission
BP 474/28 (HE)
BP 585/35 (HE)
DFT 495 + 605 (HE)
DBP 527/54 + 645/60 (HE)
Filter Set 62 HE (Colibri)  (489062-9901-000)
Excitation Beamsplitter Emission
BP 370/40 (HE)
BP 474/28 (HE)
BP 585/35 (HE)
TFT 395 + 495 + 610 (HE)
TBP 425 + 527 + LP615 (HE)
Filter Set 63 HE  (489063-0000-000)
Excitation Beamsplitter Emission
BP 572/25 (HE)
FT 590 (HE)
BP 629/62 (HE)
Filter Set 64 HE  (489064-0000-000)
Excitation Beamsplitter Emission
BP 587/25 (HE)
FT 605 (HE)
BP 647/70 (HE)
Filter Set 72 HE  (489072-0000-000)
Excitation Beamsplitter Emission
TBP 407 + 510 + 565 (HE)
TFT 431 + 525 + 580 (HE)
TBP 468 + 537 + 604 (HE)
Filter Set 74 HE  (489074-0000-000)
Excitation Beamsplitter Emission
DBP 480/30 + 565/25 (HE)
DFT 505 + 583 (HE)
DBP 525/31 + 616/57 (HE)
Filter Set 76 HE  (489076-9901-000)
Excitation Beamsplitter Emission
TBP 406 + 489 + 561 (HE)
TFT 427 + 503 + 578 (HE)
TBP 459 + 525 + 608 (HE)
Filter Set 77 HE  (489077-0000-000)
Excitation Beamsplitter Emission
TBP 483 + 564 + 642 (HE)
TFT 506 + 582 + 659 (HE)
TBP 526 + 601 + 688 (HE)
Filter Set 79 HE wl  (489079-9000-000)
Excitation Beamsplitter Emission
DBP 470/27 + 556/25 (HE)
DBS 490+575
FT 565 (HE)
BP 512/30 (HE)
BP 630/98 (HE)
Filter Set 79 HE ms  (489079-9010-000)
Excitation Beamsplitter Emission
BP 470/27 (HE)
BP 556/25 (HE)
DBS 490+575
FT 565 (HE)
BP 512/30 (HE)
BP 630/98 (HE)
Filter Set 90 SBP  (489090-9010-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
QBS 405 + 493 + 575 + 653
BP 425/30
BP 514/30 (HE)
BP 592/24
BP 681/45
Filter Set 90 HE  (489090-9100-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
QBS 405 + 493 + 575 + 653
QBP 425/30+514/30+592/25+709/100
Filter Set 90 HE LED  (489090-9110-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
QBS 405 + 493 + 575 + 653
QBP 425/30+514/30+592/25+709/100
Filter Set 90 LED SBP  (489090-9120-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
QBS 405 + 493 + 575 + 653
BP 425/30
BP 514/30 (HE)
BP 592/24
BP 681/45
Filter Set 90 MBP  (489090-9130-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
QBS 405 + 493 + 575 + 653
QBP 425/30+514/30+592/25+709/100
Filter Set 91 SBP  (489091-9010-000)
Excitation Beamsplitter Emission
BP 423/44
BP 508/20
BP 591/27
TBS 450+538+610
BP 467/24
BP 558/25
BP 649/65
Filter Set 91 HE LED  (489091-9110-000)
Excitation Beamsplitter Emission
BP 423/44
BP 511/44
BP 591/27
TBS 450+538+610
TBP 467/24+555/25+687/145
Filter Set 91 LED SBP  (489091-9120-000)
Excitation Beamsplitter Emission
BP 423/44
BP 511/44
BP 591/27
TBS 450+538+610
BP 467/24
BP 558/25
BP 649/65
Filter Set 91 MBP  (489091-9130-000)
Excitation Beamsplitter Emission
BP 423/44
BP 508/20
BP 591/27
TBS 450+538+610
TBP 467/24+555/25+687/145
Filter Set 92 SBP  (489092-9010-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
TBS 405+493+610
BP 425/30
BP 525/50 (HE)
BP 649/65
Filter Set 92 HE LED  (489092-9110-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
TBS 405+493+610
TBP 425/30+524/50+688/145
Filter Set 92 LED SBP  (489092-9120-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
TBS 405+493+610
BP 425/30
BP 525/50 (HE)
BP 649/65
Filter Set 92 MBP  (489092-9130-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
TBS 405+493+610
TBP 425/30+524/50+688/145
Filter Set 109 HE LED  (489109-9110-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
TBS 405+493+575
TBP 425/29+514/31+632/100
Filter Set 110 SBP  (489110-9010-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
BP 735/40
QBS 405 + 493 + 611 + 762
BP 425/30
BP 525/50 (HE)
BP 649/65
BP 788/38
Filter Set 110 HE LED  (489110-9111-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
BP 735/40
QBS 405 + 493 + 611 + 762
QBP 425/30 + 524/51 + 634/38 + 785/38
Filter Set 110 LED SBP  (489110-9120-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
BP 735/40
QBS 405 + 493 + 611 + 762
BP 425/30
BP 525/50 (HE)
BP 649/65
BP 788/38
Filter Set 110 MBP  (489110-9130-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 591/27
BP 735/40
QBS 405 + 493 + 611 + 762
QBP 425/30 + 524/51 + 634/38 + 785/38
Filter Set 112 SBP  (489112-9010-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
BP 735/40
PBS 405 + 493 + 575 + 654 + 761
BP 425/30
BP 514/30 (HE)
BP 592/24
BP 681/45
BP 788/38
Filter Set 112 HE LED  (489112-9110-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
BP 735/40
PBS 405 + 493 + 575 + 654 + 761
PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38
Filter Set 112 LED SBP  (489112-9120-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
BP 735/40
PBS 405 + 493 + 575 + 654 + 761
BP 425/30
BP 514/30 (HE)
BP 592/24
BP 681/45
BP 788/38
Filter Set 112 MBP  (489112-9130-000)
Excitation Beamsplitter Emission
BP 385/30
BP 469/38
BP 555/30
BP 631/33
BP 735/40
PBS 405 + 493 + 575 + 654 + 761
PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38
Filter Set 117 FRET  (489117-9140-000)
Excitation Beamsplitter Emission
BP 469/38
BP 555/30
FT 495
FT 583
BP 525/50 (HE)
BP 640/86
Filter Set 121  (489121-9100-000)
Excitation Beamsplitter Emission
BP 555/30
FT 583
BP 640/86
Filter Set 122 SBP  (489122-9010-000)
Excitation Beamsplitter Emission
BP 390/19
BP 430/20
BP 499/17
DBP 533/19 + 746/24
BP 596/16
BP 666/18
BS 405 + 515 + 615
BS 465 + 550 + 690 + 770
BP 426/28
DBP 488/25 + 815/74
DBP 535/21 + 713/25
BP 571/20
BP 638/25
Filter sets for stereomicroscopes
Filter Set Lumar 31  (485031-0000-000)
Excitation Emission
BP 565/30 BP 620/60
Filter Set Lumar 45  (485045-0000-000)
Excitation Emission
BP 560/40 BP 630/75
