Axio Observer 5

ZEISS Axio Observer for Life Sciences. Your open and flexible inverted microscope platform

Axio Observer 5

+3

Variants Axio Observer 5 You can customize this list by removing one or more columns. Show all variants (3) Show all Hide all	Inverted microscope Axio Observer 5 Item no.: 491916-0001-000	Inverted microscope Axio Observer 5 Item no.: 491916-0002-000	Microscope Axio Observer 5 Item no.: 491911-0044-000

Variants Axio Observer 5 You can customize this list by removing one or more columns. Show all variants (3) Show all Hide all	example picture Inverted microscope Axio Observer 5 Item no.: 491916-0001-000 Inverted microscope Axio Observer 5 Item no.: 491916-0001-000 Inverted microscope Axio Observer 5 for transmitted-light brightfield LED and differential interference contrast Inverted microscope Axio Observer 5 for transmitted-light br...	example picture Inverted microscope Axio Observer 5 Item no.: 491916-0002-000 Inverted microscope Axio Observer 5 Item no.: 491916-0002-000 Inverted microscope Axio Observer 5 for transmitted-light brightfield LED, phase contrast, differential interference contrast and manual fluorescence equipment with HXP 120 V Inverted microscope Axio Observer 5 for transmitted-light br...	example picture Microscope Axio Observer 5 Item no.: 491911-0044-000 Microscope Axio Observer 5 Item no.: 491911-0044-000 Microscope Axio Observer 5 for epi-fluorescence with Apotome 3 ZEN equipment Microscope Axio Observer 5 for epi-fluorescence with Apotome...
Microscope stands inverted	Microscope stands inverted Microscope stand Axio Observer 5 Microscope stand Axio Observer 5 Item no.: 431006-9901-000 Microscope stand Axio Observer 5 - 6-position nosepiece, H DIC M27 cod. - manual focus drive incl. focus stop - z-drive operation, flat; left - 1x tube lens to fit with optional available 1-position tube lens mount or 3-position optovar turret cod. - slider mount for PlasDIC and analyzer module - circular operation key unit right - keys for switching TL/RL illumination - light manager - interfaces: 1x CAN, 2x USB-A, 1x USB-C and 1x TCP/IP - trigger socket (In/Out) for shutter - connecting socket for external UNIBLITZ shutter - integrated 12V DC 100W power supply, stabilized, 100V-127V and 200V-240VAC / 50-60Hz / max. 300VA - USB cable and country-specific line cable Item no.: 431006-9901-000 1-position tube lens mount, fixed 1-position tube lens mount, fixed Item no.: 431010-0000-000 1-position tube lens mount, fixed Item no.: 431010-0000-000 Aqua Stop II Aqua Stop II Item no.: 431716-0000-000 Aqua Stop II for Axio Observer, Axiovert 5 and Axiovert 200 Item no.: 431716-0000-000 Path deflection to the tube Path deflection to the tube Item no.: 000000-1069-227 Path deflection to the tube for visual observation Item no.: 000000-1069-227 Sideport 60N L, 3 switching positions Sideport 60N L, 3 switching positions Item no.: 425152-0000-000 Sideport 60N L, 3 switching positions (100% vis : 0% L / 0% vis : 100% L / 50% vis : 50% L) Item no.: 425152-0000-000	Microscope stands inverted Microscope stand Axio Observer 5 Microscope stand Axio Observer 5 Item no.: 431006-9901-000 Microscope stand Axio Observer 5 - 6-position nosepiece, H DIC M27 cod. - manual focus drive incl. focus stop - z-drive operation, flat; left - 1x tube lens to fit with optional available 1-position tube lens mount or 3-position optovar turret cod. - slider mount for PlasDIC and analyzer module - circular operation key unit right - keys for switching TL/RL illumination - light manager - interfaces: 1x CAN, 2x USB-A, 1x USB-C and 1x TCP/IP - trigger socket (In/Out) for shutter - connecting socket for external UNIBLITZ shutter - integrated 12V DC 100W power supply, stabilized, 100V-127V and 200V-240VAC / 50-60Hz / max. 300VA - USB cable and country-specific line cable Item no.: 431006-9901-000 1-position tube lens mount, fixed 1-position tube lens mount, fixed Item no.: 431010-0000-000 1-position tube lens mount, fixed Item no.: 431010-0000-000 Sideport 60N L, 3 switching positions Sideport 60N L, 3 switching positions Item no.: 425152-0000-000 Sideport 60N L, 3 switching positions (100% vis : 0% L / 0% vis : 100% L / 50% vis : 50% L) Item no.: 425152-0000-000 Path deflection to the tube Path deflection to the tube Item no.: 000000-1069-227 Path deflection to the tube for visual observation Item no.: 000000-1069-227 Aqua Stop II Aqua Stop II Item no.: 431716-0000-000 Aqua Stop II for Axio Observer, Axiovert 5 and Axiovert 200 Item no.: 431716-0000-000	Microscope stands inverted Microscope stand Axio Observer 5 Microscope stand Axio Observer 5 Item no.: 431006-9901-000 Microscope stand Axio Observer 5 - 6-position nosepiece, H DIC M27 cod. - manual focus drive incl. focus stop - z-drive operation, flat; left - 1x tube lens to fit with optional available 1-position tube lens mount or 3-position optovar turret cod. - slider mount for PlasDIC and analyzer module - circular operation key unit right - keys for switching TL/RL illumination - light manager - interfaces: 1x CAN, 2x USB-A, 1x USB-C and 1x TCP/IP - trigger socket (In/Out) for shutter - connecting socket for external UNIBLITZ shutter - integrated 12V DC 100W power supply, stabilized, 100V-127V and 200V-240VAC / 50-60Hz / max. 300VA - USB cable and country-specific line cable Item no.: 431006-9901-000 3-position Optovar turret cod. 3-position Optovar turret cod. Item no.: 431012-0000-000 3-position Optovar turret cod. Item no.: 431012-0000-000 Sideport 60N L, 3 switching positions Sideport 60N L, 3 switching positions Item no.: 425152-0000-000 Sideport 60N L, 3 switching positions (100% vis : 0% L / 0% vis : 100% L / 50% vis : 50% L) Item no.: 425152-0000-000 Path deflection to the tube Path deflection to the tube Item no.: 000000-1069-227 Path deflection to the tube for visual observation Item no.: 000000-1069-227 Anti vibration set Axio Observer (D) Anti vibration set Axio Observer (D) Item no.: 431007-9000-000 Anti vibration set Axio Observer (D) Comprising: 2 supporting plates, fitted with 2 vibration dampers (each), for the fixed mounting at the bottom of the Axio Observer stand Item no.: 431007-9000-000
Stand accessories	Stand accessories 6-position reflector turret cod. for P&C modules 6-position reflector turret cod. for P&C modules Item no.: 424946-0000-000 6-position reflector turret cod. for P&C modules reflector modules exchangable without removal of reflector turret Item no.: 424946-0000-000	Stand accessories 6-position reflector turret cod. for P&C modules 6-position reflector turret cod. for P&C modules Item no.: 424946-0000-000 6-position reflector turret cod. for P&C modules reflector modules exchangable without removal of reflector turret Item no.: 424946-0000-000 FL attenuator, discrete FL attenuator, discrete Item no.: 423647-0000-000 FL attenuator, discrete Insert for the aperture stop plane of reflected-light illuminators. Filter wheel with 6 positions. Pos. 1: clear aperture. Pos. 2-6: transmission appr. 70, 50, 40, 20 and 2%. Item no.: 423647-0000-000 Protection filter for reflector turret Protection filter for reflector turret Item no.: 000000-1068-113 Protection filter for reflector turret Item no.: 000000-1068-113	Stand accessories FL attenuator, discrete FL attenuator, discrete Item no.: 423647-0000-000 FL attenuator, discrete Insert for the aperture stop plane of reflected-light illuminators. Filter wheel with 6 positions. Pos. 1: clear aperture. Pos. 2-6: transmission appr. 70, 50, 40, 20 and 2%. Item no.: 423647-0000-000 Protection filter for reflector turret Protection filter for reflector turret Item no.: 000000-1068-113 Protection filter for reflector turret Item no.: 000000-1068-113 6-position reflector turret mot. for P&C modules 6-position reflector turret mot. for P&C modules Item no.: 424947-0000-000 6-position reflector turret mot. for P&C modules reflector modules exchangable without removal of reflector turret Item no.: 424947-0000-000

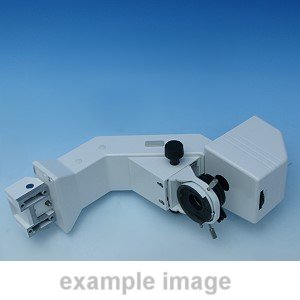

Transmitted-light illumination	Transmitted-light illumination Carrier for transmitted-light illumination with LCD display Carrier for transmitted-light illumination with LCD display Item no.: 423922-0000-000 Carrier for transmitted-light illumination with LCD display and light manager, carrier tiltable, for the mounting of condensers. Equipped with luminous-field diaphragm, 3-position filter changer and attachment possibility for micromanipulators. LCD display, four lines for display of nosepiece position, objective magnification, contrasting techniques, reflector turret equipment and lamp brightness. Item no.: 423922-0000-000	Transmitted-light illumination Carrier for transmitted-light illumination with LCD display Carrier for transmitted-light illumination with LCD display Item no.: 423922-0000-000 Carrier for transmitted-light illumination with LCD display and light manager, carrier tiltable, for the mounting of condensers. Equipped with luminous-field diaphragm, 3-position filter changer and attachment possibility for micromanipulators. LCD display, four lines for display of nosepiece position, objective magnification, contrasting techniques, reflector turret equipment and lamp brightness. Item no.: 423922-0000-000	Transmitted-light illumination Carrier transmitted-light illumination, LCD display, Shutter Carrier transmitted-light illumination, LCD display, Shutter Item no.: 423926-9010-000 Carrier transmitted-light illumination, LCD display, Shutter - for Axio Observer 5/D1 - LCD display - shutter, switching time < 80ms - manual luminous-field diaphragm - condenser mount - interface for LD condenser 0.55 mot. - 3-position filter changer, d=32 mm - carrier tiltable Item no.: 423926-9010-000
Lamps and Lamp housings	Lamps and Lamp housings Illuminator microLED 3 Illuminator microLED 3 Item no.: 423053-9074-000 Illuminator microLED 3 for mounting on the lamp interface for transmitted-light or reflected-light illumination - colour temperature 5700 K - colour rendering index >90 Item no.: 423053-9074-000	Lamps and Lamp housings Illuminator microLED 3 Illuminator microLED 3 Item no.: 423053-9074-000 Illuminator microLED 3 for mounting on the lamp interface for transmitted-light or reflected-light illumination - colour temperature 5700 K - colour rendering index >90 Item no.: 423053-9074-000 Illumination adapter for light guide (D) Illumination adapter for light guide (D) Item no.: 423302-0000-000 Illumination adapter for light guide (D) Suitable for HXP 120 and X-Cite 120, coupling diameter of light guide 5 mm Item no.: 423302-0000-000 Illuminator HXP 120 V (D) Illuminator HXP 120 V (D) Item no.: 423013-9010-000 Illuminator HXP 120 V (D) inclusive built in power supply, lamp module and infrared filter. Fluorescence light source with motorized brightness switch and integrated motorized shutter, that works stepper motor controlled, fast and vibration free. With CAN connection for switching the shutter and the motorized brightness switch via ZEN (blue edition) and ZEN 2 (black edition). Interfaces: - 1x CAN (CAN-HD15) - 1x Trigger in (BNC) - 1x Trigger out (BNC) - 1x EXT (BNC) for remote control unit The package includes light guide, cable BNC and cable CAN. Item no.: 423013-9010-000	Lamps and Lamp housings Illuminator microLED 3 Illuminator microLED 3 Item no.: 423053-9074-000 Illuminator microLED 3 for mounting on the lamp interface for transmitted-light or reflected-light illumination - colour temperature 5700 K - colour rendering index >90 Item no.: 423053-9074-000 Light Source Viluma 5 RGB-UV Light Source Viluma 5 RGB-UV Item no.: 423052-9641-000 Light Source Viluma 5 RGB-UV 4-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable. Equipped with 4 solid state LED lamps. Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Green (555 nm) for excitation of Cy3, TRITC, DsRed and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes A country-specific power cableand a desktop power supply are included in delivery. When used at an Axio Observer with Incubator XLmulti, the Extension tube for illuminator mount, 17 mm is required. Item no.: 423052-9641-000
Polarization	Polarization DIC slider LD PN 40x/0.60 II DIC slider LD PN 40x/0.60 II Item no.: 426955-0000-000 DIC slider LD PN 40x/0.60 II Item no.: 426955-0000-000 DIC slider LD PN 20x/0.40 II DIC slider LD PN 20x/0.40 II Item no.: 426954-0000-000 DIC slider LD PN 20x/0.40 II Item no.: 426954-0000-000 Analyzer module DIC ACR P&C for transmitted light Analyzer module DIC ACR P&C for transmitted light Item no.: 424921-9901-000 Analyzer module DIC ACR P&C for transmitted light optimized for DIC in transmitted light, not suitable for polarization Item no.: 424921-9901-000	Polarization DIC slider LD PN 40x/0.60 II DIC slider LD PN 40x/0.60 II Item no.: 426955-0000-000 DIC slider LD PN 40x/0.60 II Item no.: 426955-0000-000 DIC slider LD PN 20x/0.40 II DIC slider LD PN 20x/0.40 II Item no.: 426954-0000-000 DIC slider LD PN 20x/0.40 II Item no.: 426954-0000-000 Analyzer module DIC ACR P&C for transmitted light Analyzer module DIC ACR P&C for transmitted light Item no.: 424921-9901-000 Analyzer module DIC ACR P&C for transmitted light optimized for DIC in transmitted light, not suitable for polarization Item no.: 424921-9901-000	Polarization
Stages and accessories	Stages and accessories Mechanical stage 130x85 R/L Mechanical stage 130x85 R/L Item no.: 432016-9902-000 Mechanical stage 130x85 R/L for mounting frames K 160 x 110 mm and Z-PIEZO, compatible with objectives autocorr Item no.: 432016-9902-000 Universal mounting frame K Universal mounting frame K Item no.: 451352-0000-000 Universal mounting frame K for: - Petri dishes dia. 24...68 mm - slides (max. length 120 mm) frame size 160 x 110 mm Item no.: 451352-0000-000	Stages and accessories Mechanical stage 130x85 R/L Mechanical stage 130x85 R/L Item no.: 432016-9902-000 Mechanical stage 130x85 R/L for mounting frames K 160 x 110 mm and Z-PIEZO, compatible with objectives autocorr Item no.: 432016-9902-000 Universal mounting frame K Universal mounting frame K Item no.: 451352-0000-000 Universal mounting frame K for: - Petri dishes dia. 24...68 mm - slides (max. length 120 mm) frame size 160 x 110 mm Item no.: 451352-0000-000	Stages and accessories Mechanical stage 130x85 R/L Mechanical stage 130x85 R/L Item no.: 432016-9902-000 Mechanical stage 130x85 R/L for mounting frames K 160 x 110 mm and Z-PIEZO, compatible with objectives autocorr Item no.: 432016-9902-000 Universal mounting frame K Universal mounting frame K Item no.: 451352-0000-000 Universal mounting frame K for: - Petri dishes dia. 24...68 mm - slides (max. length 120 mm) frame size 160 x 110 mm Item no.: 451352-0000-000
Tubes and accessories	Tubes and accessories Binocular tube 45°/23 Binocular tube 45°/23 Item no.: 425537-0000-000 Binocular tube 45°/23 with manual shutter Item no.: 425537-0000-000	Tubes and accessories Binocular tube 45°/23 Binocular tube 45°/23 Item no.: 425537-0000-000 Binocular tube 45°/23 with manual shutter Item no.: 425537-0000-000	Tubes and accessories Binocular tube 45°/23 Binocular tube 45°/23 Item no.: 425537-0000-000 Binocular tube 45°/23 with manual shutter Item no.: 425537-0000-000
Filters	Filters Conversion filter 5700-3200 K, d=32 mm Conversion filter 5700-3200 K, d=32 mm Item no.: 427809-9000-000 Conversion filter 5700-3200 K, d=32 mm for adapting the LED light to the color impression of halogen light Item no.: 427809-9000-000	Filters Conversion filter 5700-3200 K, d=32 mm Conversion filter 5700-3200 K, d=32 mm Item no.: 427809-9000-000 Conversion filter 5700-3200 K, d=32 mm for adapting the LED light to the color impression of halogen light Item no.: 427809-9000-000 Filter set 49 DAPI shift free (E) Filter set 49 DAPI shift free (E) Item no.: 488049-9901-000 Filter set 49 DAPI shift free (E) EX G 365, BS FT 395, EM BP 445/50 Item no.: 488049-9901-000 Filter set 50 Cy 5 shift free (E) Filter set 50 Cy 5 shift free (E) Item no.: 488050-9901-000 Filter set 50 Cy 5 shift free (E) EX BP 640/30, BS FT 660, EM BP 690/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 488050-9901-000 Filter set 45 HQ TexasRed, d=25 shift free (E) Filter set 45 HQ TexasRed, d=25 shift free (E) Item no.: 000000-1114-462 Filter set 45 HQ TexasRed, d=25 shift free (E) EX BP 560/40, BS FT 585, EM BP 630/75, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 000000-1114-462 Filter set 43 Cy 3, d=25 shift free (E) Filter set 43 Cy 3, d=25 shift free (E) Item no.: 000000-1114-101 Filter set 43 Cy 3, d=25 shift free (E) EX BP 545/25, BS FT 570, EM BP 605/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 000000-1114-101 Filter set 38 Endow GFP shift free (E) Filter set 38 Endow GFP shift free (E) Item no.: 000000-1031-346 Filter set 38 Endow GFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 000000-1031-346	Filters Conversion filter 5700-3200 K, d=32 mm Conversion filter 5700-3200 K, d=32 mm Item no.: 427809-9000-000 Conversion filter 5700-3200 K, d=32 mm for adapting the LED light to the color impression of halogen light Item no.: 427809-9000-000 Filter set 90 HE LED (E) Filter set 90 HE LED (E) Item no.: 489090-9110-000 Filter set 90 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, TRITC and Cy5 with excitation wavelengths 385, 475, 555 and 630 nm. Contains beam splitter QBS 405 + 493 + 575 + 653 and emission filter QBP 425/30 + 514/30 + 592/25 + 709/100. Item no.: 489090-9110-000
Eyepieces	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. With mount for reticle diam. 26 mm. Item no.: 444036-9000-000 Auxiliary microscope, d=30 Auxiliary microscope, d=30 Item no.: 444830-9902-000 Auxiliary microscope, d=30 to adjust the phase rings and darkfield stop in the condenser Item no.: 444830-9902-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. With mount for reticle diam. 26 mm. Item no.: 444036-9000-000 Auxiliary microscope, d=30 Auxiliary microscope, d=30 Item no.: 444830-9902-000 Auxiliary microscope, d=30 to adjust the phase rings and darkfield stop in the condenser Item no.: 444830-9902-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. With mount for reticle diam. 26 mm. Item no.: 444036-9000-000
Eyepiece accessories	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000
Transmitted-light objectives	Transmitted-light objectives Objective LD Plan-Neofluar 40x/0.6 Corr M27 Objective LD Plan-Neofluar 40x/0.6 Corr M27 Item no.: 421360-9971-000 Objective LD Plan-Neofluar 40x/0.6 Corr M27 (CG=0-1.5mm) (FWD=3.3mm at CG=0mm and FWD=2.5mm at CG=1.5mm) Item no.: 421360-9971-000 Objective LD Plan-Neofluar 20x/0.4 Corr M27 Objective LD Plan-Neofluar 20x/0.4 Corr M27 Item no.: 421350-9971-000 Objective LD Plan-Neofluar 20x/0.4 Corr M27 (CG=0-1.5mm) (FWD=8.4mm at CG=0mm and FWD=7.4mm at CG=1.5mm) Item no.: 421350-9971-000 Objective LD A-Plan 10x/0.25 Ph1 M27 Objective LD A-Plan 10x/0.25 Ph1 M27 Item no.: 421241-9910-000 Objective LD A-Plan 10x/0.25 Ph1 M27 (FWD=8.5mm at CG=1mm polystyrene) Item no.: 421241-9910-000	Transmitted-light objectives Objective LD A-Plan 10x/0.25 Ph1 M27 Objective LD A-Plan 10x/0.25 Ph1 M27 Item no.: 421241-9910-000 Objective LD A-Plan 10x/0.25 Ph1 M27 (FWD=8.5mm at CG=1mm polystyrene) Item no.: 421241-9910-000 Objective LD Plan-Neofluar 20x/0.4 Corr Ph2 M27 Objective LD Plan-Neofluar 20x/0.4 Corr Ph2 M27 Item no.: 421351-9972-000 Objective LD Plan-Neofluar 20x/0.4 Corr Ph2 M27 (CG=0-1.5mm) (FWD=8.4mm at CG=0mm and FWD=7.4mm at CG=1.5mm) Item no.: 421351-9972-000 Objective LD Plan-Neofluar 40x/0.6 Corr Ph2 M27 Objective LD Plan-Neofluar 40x/0.6 Corr Ph2 M27 Item no.: 421361-9971-000 Objective LD Plan-Neofluar 40x/0.6 Corr Ph2 M27 (CG=0-1.5mm) (FWD=3.3mm at CG=0mm and FWD=2.5mm at CG=1.5mm) Item no.: 421361-9971-000	Transmitted-light objectives Objective EC Plan-Neofluar 63x/1.25 Oil M27 Objective EC Plan-Neofluar 63x/1.25 Oil M27 Item no.: 420480-9901-000 Objective EC Plan-Neofluar 63x/1.25 Oil M27 (FWD=0.10mm), incl. Immersol 518 F, oiler 20ml Item no.: 420480-9901-000 Objective EC Plan-Neofluar 40x/0.75 M27 Objective EC Plan-Neofluar 40x/0.75 M27 Item no.: 420360-9900-000 Objective EC Plan-Neofluar 40x/0.75 M27 (FWD=0.71mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420360-9900-000 Objective EC Plan-Neofluar 20x/0.50 M27 Objective EC Plan-Neofluar 20x/0.50 M27 Item no.: 420350-9900-000 Objective EC Plan-Neofluar 20x/0.50 M27 (FWD=2.0mm) Item no.: 420350-9900-000 Objective EC Plan-Neofluar 10x/0.3 M27 Objective EC Plan-Neofluar 10x/0.3 M27 Item no.: 420340-9901-000 Objective EC Plan-Neofluar 10x/0.3 M27 (FWD=5.2mm) Item no.: 420340-9901-000
Condensers	Condensers LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions Item no.: 424242-0000-000 LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions with aperture diaphragm, WD=26mm For objective magnifications 4.0x-100x Item no.: 424242-0000-000 Condenser module DIC II/0.55 with polarizer Condenser module DIC II/0.55 with polarizer Item no.: 426720-0000-000 Condenser module DIC II/0.55 with polarizer Item no.: 426720-0000-000	Condensers LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions Item no.: 424242-0000-000 LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions with aperture diaphragm, WD=26mm For objective magnifications 4.0x-100x Item no.: 424242-0000-000 Condenser module DIC II/0.55 with polarizer Condenser module DIC II/0.55 with polarizer Item no.: 426720-0000-000 Condenser module DIC II/0.55 with polarizer Item no.: 426720-0000-000	Condensers LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions Item no.: 424242-0000-000 LD condenser 0.55 H, Ph1, Ph2, Ph3, DIC, DIC; 6 positions with aperture diaphragm, WD=26mm For objective magnifications 4.0x-100x Item no.: 424242-0000-000
Packing and dust protection	Packing and dust protection Dust cover L600xW420xH620 mm Dust cover L600xW420xH620 mm Item no.: 459330-0000-000 Dust cover L600xW420xH620 mm for Axio Observer / Axiovert 200/200M Item no.: 459330-0000-000	Packing and dust protection Dust cover L600xW420xH620 mm Dust cover L600xW420xH620 mm Item no.: 459330-0000-000 Dust cover L600xW420xH620 mm for Axio Observer / Axiovert 200/200M Item no.: 459330-0000-000	Packing and dust protection Dust cover L600xW420xH620 mm Dust cover L600xW420xH620 mm Item no.: 459330-0000-000 Dust cover L600xW420xH620 mm for Axio Observer / Axiovert 200/200M Item no.: 459330-0000-000
Reflected-light illumination	Reflected-light illumination	Reflected-light illumination Reflected-light illuminator FL Reflected-light illuminator FL Item no.: 423606-9901-000 Reflected-light illuminator FL - slider mounts for manual sliders - slider mount for 3-position filter slider, dia. 25 mm - beam path apochromatic corrected - transmission from 375 to 825 nm >80% Item no.: 423606-9901-000 Shutter FL, internal for stands Axio Observer 3 / 5 / 7 / D1 / Z1 Shutter FL, internal for stands Axio Observer 3 / 5 / 7 / D1 / Z1 Item no.: 423625-0000-000 Shutter FL, internal for stands Axio Observer 3 / 5 / 7 / D1 / Z1 for reflected-light illumination switching time < 60 ms switching frequency max. 5 Hz Item no.: 423625-0000-000 Antiglare screen for Axio Observer/Axiovert 200 Antiglare screen for Axio Observer/Axiovert 200 Item no.: 000000-1109-741 Antiglare screen for Axio Observer/Axiovert Item no.: 000000-1109-741 Iris stop slider for incident-light equipment Iris stop slider for incident-light equipment Item no.: 000000-1062-360 Iris stop slider for incident-light equipment centerable, can be used as luminous-field diaphragm and/or aperture diaphragm slider (Köhler-type illumination in incident-light beam path) Item no.: 000000-1062-360 Reflector module FL EC P&C Reflector module FL EC P&C Item no.: 424931-0000-000 Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm Item no.: 424931-0000-000	Reflected-light illumination Reflected-light illuminator FL Reflected-light illuminator FL Item no.: 423606-9901-000 Reflected-light illuminator FL - slider mounts for manual sliders - slider mount for 3-position filter slider, dia. 25 mm - beam path apochromatic corrected - transmission from 375 to 825 nm >80% Item no.: 423606-9901-000 Shutter FL, internal for stands Axio Observer 3 / 5 / 7 / D1 / Z1 Shutter FL, internal for stands Axio Observer 3 / 5 / 7 / D1 / Z1 Item no.: 423625-0000-000 Shutter FL, internal for stands Axio Observer 3 / 5 / 7 / D1 / Z1 for reflected-light illumination switching time < 60 ms switching frequency max. 5 Hz Item no.: 423625-0000-000 Antiglare screen for Axio Observer/Axiovert 200 Antiglare screen for Axio Observer/Axiovert 200 Item no.: 000000-1109-741 Antiglare screen for Axio Observer/Axiovert Item no.: 000000-1109-741 Iris stop slider for incident-light equipment Iris stop slider for incident-light equipment Item no.: 000000-1062-360 Iris stop slider for incident-light equipment centerable, can be used as luminous-field diaphragm and/or aperture diaphragm slider (Köhler-type illumination in incident-light beam path) Item no.: 000000-1062-360 Reflector module FL EC P&C Reflector module FL EC P&C Item no.: 424931-0000-000 Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm Item no.: 424931-0000-000
Microscope stands upright	Microscope stands upright	Microscope stands upright	Microscope stands upright Z-drive operation, flat; left Z-drive operation, flat; left Item no.: 430052-0000-000 Z-drive operation, flat; left Flat, ergonomic control knob on the left side, recommended for combinations with mechanical stage or object guides, left Item no.: 430052-0000-000
Video devices	Video devices	Video devices	Video devices Camera Adapter 60N-C 1" 1.0x Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000 Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000
Apotome	Apotome	Apotome	Apotome Slider assembly Apotome 3 for Axio Observer Slider assembly Apotome 3 for Axio Observer Item no.: 423667-9010-000 Slider assembly Apotome 3 for Axio Observer consisting of: slider with control electronics and transmission grids with 3 frequencies, reflector module calibration Apotome ACR P&C for LED and white light source, mirror and fluorescence test slides, cable CAN-BUS, case. Item no.: 423667-9010-000
Image processing	Image processing	Image processing	Image processing Microscopy Camera Axiocam 807 mono (D) Microscopy Camera Axiocam 807 mono (D) Item no.: 426560-9160-000 Microscopy Camera Axiocam 807 mono (D) High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, monochrome, Global Shutter, Sony IMX420 Number of Pixels: 3216 (H) x 2208 (V) = 7.1 Mega Pixels Pixel Size: 4.5 µm x 4.5 µm Chip Size: 14.5 mm x 9.9 mm, equivalent to 1.1" (17,6 mm diagonal) Spectral Range: With protection glass, 350 nm to 1000 nm Peak QE: 78% @ 520 nm (typ.) Full Well Capacity: Approx. 25,000 e- at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 3216 x 2208 1x1 basic pixel count 1608 x 11042x2 1072 x 991 3x3 884 x 743 4x4 643 x 594 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 3216x2208 1x1 1608 x 1104 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 3216 x 2208 >30 fps (High Res mode) 1602 x 1104>30 fps (Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 3216 x 2208 73 1929 x 1080 145 1608 x 1104 260 (2x2 subsampling; full field of view) 1024 x 1024 151 512 x 512 282 1920 x 256 487 Read Noise Full Well Capacity Dynamic Range (at gain) 5.7 e (1x) 25,000 e 1:4420 4.6 e (2x) 12,500 e 1:2730 3.9 e (4x) 6,250 e 1:1610 3.4 e (8x) 3,125 e 1: 930 2.9 e (16x) 1,500 e 1: 530 Low Noise Mode: 4.0 e 25,000 e 1:25,000 SoftwareSupported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.3 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed,2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower frame rates and without cooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2"x 3.1" x 2.4")/ 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W powerconsumption Environmental Conditions: 5 °C to 35 °C, max.80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center. Item no.: 426560-9160-000
Software for image processing	Software for image processing	Software for image processing	Software for image processing ZEN 3.11 ZEN 3.11 Item no.: 410135-0002-311 ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel) Item no.: 410135-0002-311
