- Objective "N-Achroplan 5x/0.15 Pol M27

Objective "N-Achroplan 5x/0.15 Pol M27
Objective "N-Achroplan 5x/0.15 Pol M27
Item no.: 420933-9901-000Objective N-Achroplan 5x/0.15 Pol M27 (FWD=12.0mm)
Full DescriptionThis objective can also be used for microscopy of specimen without cover glass.
Magnification | 5x |
Numerical Aperture | 0.15 |
Free Working Distance [mm] | 12.0 |
Coverglass Thickness [mm] | 0.17 |
Thread Type | M27x0.75 |
Immersion | Without Immersion |
Field of View [mm] | 23 |
Parfocal Length [mm] | 45.06 |
Long Distance | |
Correction Ring | |
Iris | |
Optical System | Infinity Color Corrected System (ICS) |
Flatness | |
Color Correction | |
Biomedical Applications | |
---|---|
Fluorescence | ![]() |
- Multichannel | |
- Ultraviolet Transmission | |
- Infra Red Transmission | |
BrightField |
![]() |
Differential Interference Contrast | |
High Contrast DIC | |
Polarization-Optical DIC | |
Phase Contrast | |
VAREL Contrast | |
Hoffman Modulation Contrast | |
Polarization Contrast | ![]() |
Materials (Reflected Light) Applications | |
BrightField |
![]() |
BrightField/DarkField | |
Reflected Light DIC | |
High Contrast DIC | |
DIC with circular polarized light | |
Total Interference Contrast | |
Polarization Contrast | ![]() |
Options | |
Definite Focus.2 | |
Confocal Microscopy | ![]() |
- Ultra Violet | |
- VIS (visible light) | |
- NLO-IR / 2 Photon | |
Total Internal Reflection Fluorescence | |
ApoTome | |
Microdissection |
-
Objective ring ACR for objective sleeve cylindrical short
Item no.: 424508-0000-000Objective ring ACR for objective sleeve cylindrical short
Item no.: 424508-0000-000Objective ring ACR for objective sleeve cylindrical short

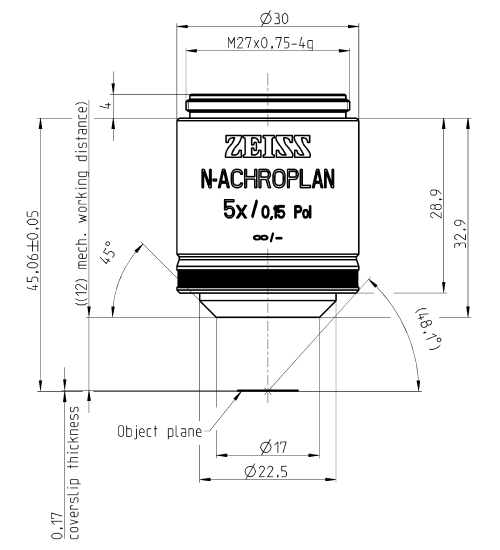

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility

Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.

These are objectives for transmitted-light routine microscopy and epi-fluorescence microscopy with visible-light excitation. Thanks to their excellent image flatness across visual field diameters of 23 mm, these objectives are ideal for photomicrography in routine microscopy.
Objective N-Achroplan 5x/0.15 Pol M27 (FWD=12.0mm)
