Stereomicroscope Stemi 508 trino with extended work area
Item no.: 495009-0030-000 (individual configuration)Stereo microscope Stemi 508 trino with extended work area - Vario Front Lens 0.3x-0.5x - zoom 3x… ...
Stereomicroscope Stemi 508 trino with extended work area
Item Number: 495009-0030-000 (individual configuration) Reset configurationTip
Current configuration
-
Light guide holder for Stemi mounts (D)
Item no.: 417085-9002-000Light guide holder for Stemi mounts (D)
Item Number: 417085-9002-000Light guide holder for Stemi mounts (D)
-
Cold-light source CL 6000 LED (D)
Item no.: 435700-9101-000Cold-light source CL 6000 LED (D)
Item Number: 435700-9101-000Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg
-
Day Light Filter CL LED (D)
Item no.: 435700-9021-000Day Light Filter CL LED (D)
Item Number: 435700-9021-000Day Light Filter CL LED (D)
-
Eyepiece eyecup
Item no.: 444801-0000-000Eyepiece eyecup
Item Number: 444801-0000-000Eyepiece eyecup
-
Microscope Body Stemi 508 trino
Item no.: 435064-9030-000Microscope Body Stemi 508 trino
Item Number: 435064-9030-000Microscope Body Stemi 508 trino - Apochromatic greenough system - Camera port with interface 60N with fixed split 50vis:50doc right - Manually operable zoom 8:1 (0.63x...5.0x) on both sides - Switchable zoom clickstops 0.63x-0.8x-1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x - Free working distance 92 mm (without dust protection glass) - Viewing angle 35° with adjustable interocular distance 55...75 mm - Eyepiece mount 30 mm with maximum field number 23 mm - Mount D=76 mm for Stemi mount/Mount S - Interface D=53 mm for illuminators - Thread M49/50 for front optics or analyzer Additionally included: - Eyepieces PL 10x/23 Br. foc. - Dust protection glass M50 with M49x0.75 - Camera adapter 60N C-Mount 0.5x
-

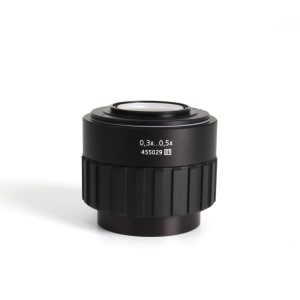

Vario front lens system 0.3x-0.5x FWD 233...90mm
Item no.: 455029-9901-000Vario front lens system 0.3x-0.5x FWD 233...90mm
Item Number: 455029-9901-000Vario front lens system 0.3x-0.5x FWD 233...90mm - D=66 mm front diameter - M62x0.75 inner thread for photo filter
-
Stemi Mount Column 32 with Drive
Item no.: 435424-9301-000Stemi Mount Column 32 with Drive
Item Number: 435424-9301-000Stemi Mount Column 32 with Drive - Lifting range +/- 25 mm, load capacity max. 5 kg - 2x M8 thread for adaptation of illuminator carriers - Adjustable ease of motion by twisting the knobs
-
Double Boom SDA (D)
Item no.: 435411-0000-000Double Boom SDA (D)
Item Number: 435411-0000-000Double Boom SDA (D) - Dimensions 670x200x170 mm, load capacity max. 8 kg - Double arm 360° rotatable around the vertical column - Boom length (incl. Stemi mount) 360-690 mm - Tilting/swiveling head with column 32/200 integrated Additionally included: - Vertical column SDA 40/610 with screw M16 - Safety-ring for height fixation
-
Stand base SDA (D)
Item no.: 435412-0000-000Stand base SDA (D)
Item Number: 435412-0000-000Stand base SDA (D) - Dimensions 350x350x50 mm, weight 30 kg - With rubber feet, 2 recessed grips, central borehole for screwing the vertical column SDA 40/610
-
Built-in light guide 1500 with focusing attachment (D)
Item no.: 455145-0000-000Built-in light guide 1500 with focusing attachment (D)
Item Number: 455145-0000-000Built-in light guide 1500 with focusing attachment (D) - Flexible light guide 6/1000 mm with focusing attachment - Sturdy metal PVC hose - Long sleeve ending for ca. 45 mm adjustment range for positioning the spots in the light guide holder
-
Adapter for built-in illuminator
Item no.: 455149-0000-000Adapter for built-in illuminator
Item Number: 455149-0000-000Adapter for built-in illuminator
