Objective Class: Fluar
Widest apertures, high transmission already from 340nm

Transmittance curve

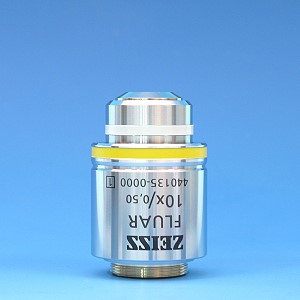

Objective Fluar 10x/0.50
440135-0000-000
[no longer available]
Price on request
Magnification 10x
Numerical Aperture 0.5
Free Working Distance [mm] 1.9
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance (LD)
Correction Ring (Corr)
Iris (Iris)
Optical System Infinity Color Corrected System (ICS)
Flatness
Color Correction
Biomedical Applications
Fluorescence
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField (B)
Differential Interference Contrast (DIC)
High Contrast DIC (HC DIC)
PlasDIC Contrast
Phase Contrast (PH)
VAREL Contrast
Hoffman Modulation Contrast (HMC)
Polarization Contrast (POL)
Materials (Reflected Light) Applications
BrightField (B)
BrightField/DarkField (BD)
Reflected Light DIC (RL DIC)
High Contrast DIC (HC DIC)
DIC with circular polarized light (C-DIC)
Total Interference Contrast (TIC)
Polarization Contrast (POL)
Options
Definite Focus.2
Confocal Microscopy
- Ultra Violet
- VIS (visible light)
NLO-IR / 2 Photon
Total Internal Reflection Fluorescence (TIRF)
ApoTome
Microdissection
Objective Fluar 10x/0.50

Objective Fluar 10x/0.50 (WD=1.9mm)
Mechanical Dimensions
Click to enlarge

All measures in [mm]

mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility

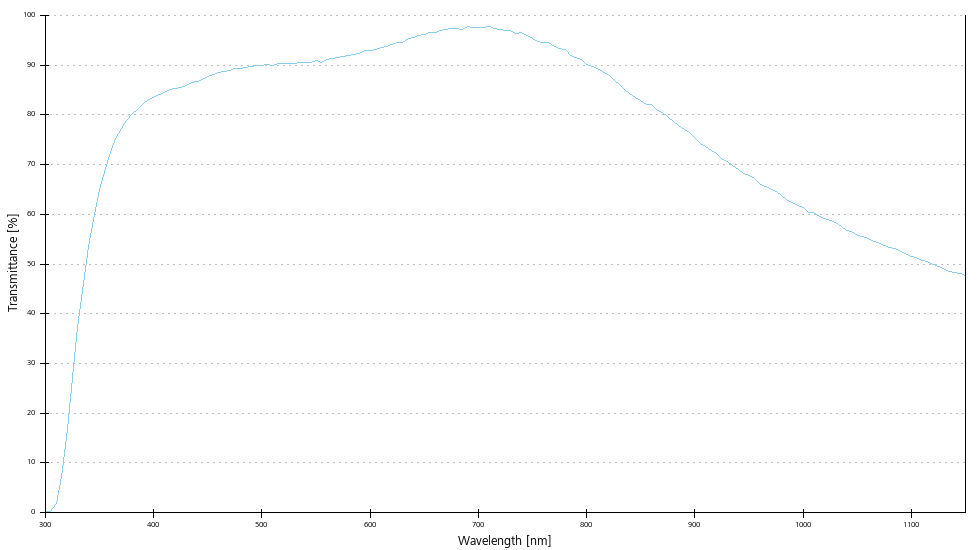

Transmittance curve
Click to enlarge

Please note that due to production tolerances, the given values are typical only and not guaranteed.

Note
The recommended adapter M27x0.75 / W0.8 H"0" does only fit with objectives, that have a [1] printed behind the order number 440135.


 Fitting Accessories for
 440135-0000-000 Objective Fluar 10x/0.50
 DIC sliders
DIC slider Fluar 10x/0.50 II, Item Number: 426942-0000-000
DIC slider Fluar 10x/0.50 II
Item Number: 426942-0000-000
DIC slider Fluar 10x/0.50 II
Note: This item is no longer available.
Price

 Other Accessories
Adapter M 27x0.75 / W 0.8 H "0", Item Number: 000000-1095-168
Adapter M 27x0.75 / W 0.8 H "0"
Item Number: 000000-1095-168
Adapter M 27x0.75 / W 0.8 H "0"
Price

|
